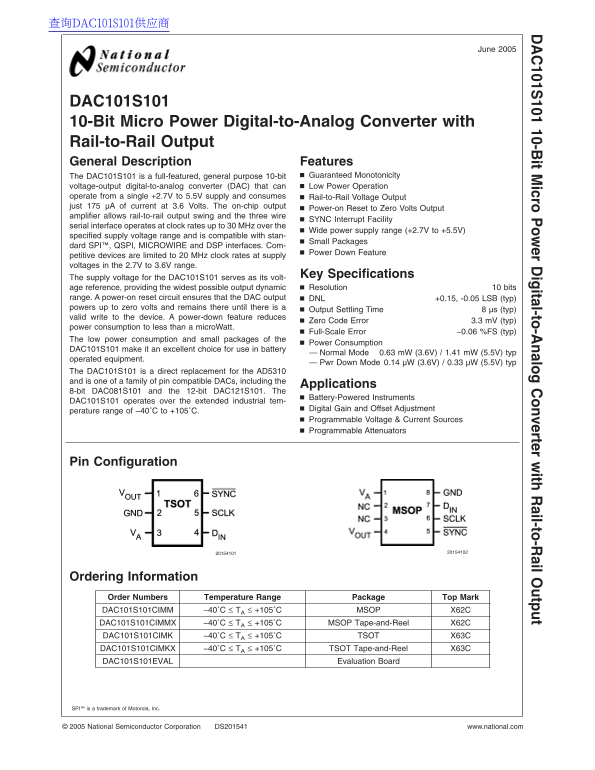

National Semiconductor DAC101S101 10-Bit Micro Power Digital-to-Analog Converter with Rail-to-Rail Output Specifications
Summary
This detailed technical guide provides comprehensive specifications for the DAC101S101, a full-featured 10-bit micro power Digital-to-Analog Converter (DAC). Ideal for engineers designing battery-operated or industrial electronics, this device offers exceptional performance with low standby power consumption and rail-to-rail voltage output. The manual covers detailed operation via various interfaces, wide supply voltage ranges (+2.7V to +5.5V), and reliable function across extreme temperatures (-40°C to +105°C).
Manual Details
| Brand | National |
|---|---|
| Pages | 19 |
| File Size | 880.53 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range for this DAC?
It operates from a single +2.7V to 5.5V supply voltage.
Does this DAC have low power modes?
Yes, it features a power-down mode with consumption of less than a microWatt.
What are the maximum operating temperatures?
The standard operating temperature range is -40°C to +105°C.
How does the output reset when powered up?
A power-on reset circuit ensures that the DAC output powers up to zero volts and stays there until a valid write.
