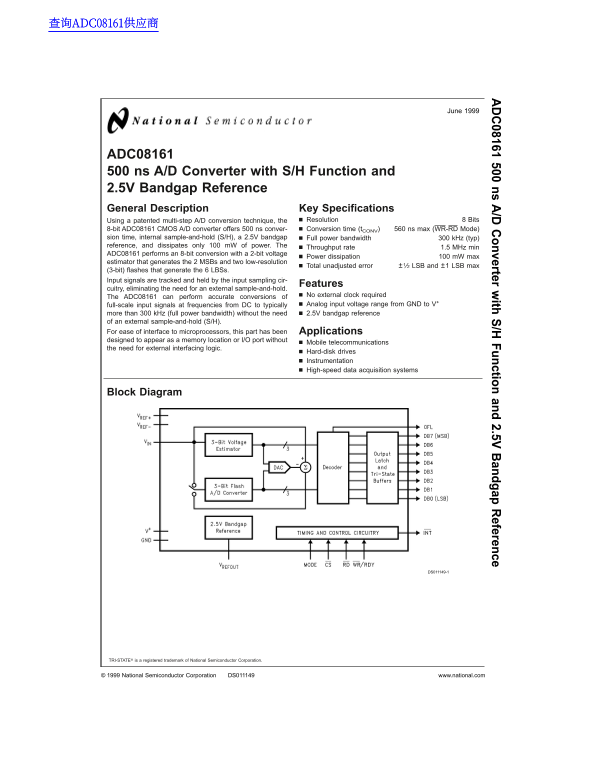

National Semiconductor ADC08161 500 ns A/D Converter with SH Function and 2.5V Bandgap Reference
Summary
The ADC08161 is a high-precision 8-bit CMOS Analog-to-Digital Converter (ADC) featuring an integrated Sample-and-Hold function, ensuring accurate and reliable signal capture from various sources. This comprehensive manual details all aspects of its operation, including electrical specifications, multiple conversion modes (RD/WR-RD), pin functions, and robust performance guidelines. It is the essential technical resource for hardware engineers and designers creating professional high-speed data acquisition systems, instrumentation, mobile telecommunications gear, and industrial control devices.
Manual Details
| Brand | National |
|---|---|
| Pages | 15 |
| File Size | 254.72 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the conversion time (t) of the ADC08161?
The typical conversion time is 500 ns, with a maximum conversion time of 560 ns in WR-RD Mode.
What types of applications are suitable for this converter?
Suitable applications include mobile telecommunications, hard-disk drives, instrumentation, and high-speed data acquisition systems.
How is the device reset after a conversion?
The INT active low output pin indicates that a conversion is complete; this signal is reset by the rising edge of RD.
What is required for proper ground connection?
The ground pin must be connected to a “clean” ground reference point, and analog ground should use multiple capacitors if not grounded.
