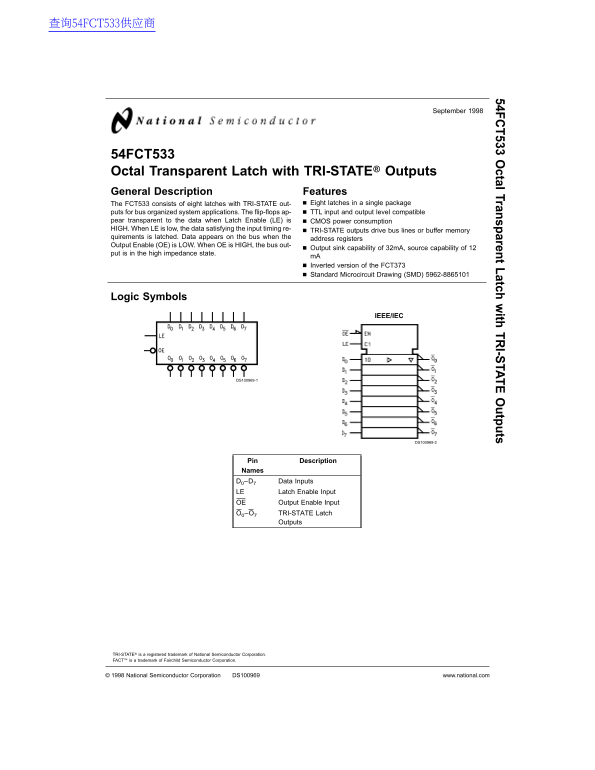

54FCT533 Octal Transparent Latch with TRI-STATE® Outputs General Description Features
The FCT533 consists of eight latches with TRI-STATE out- Eight latches in single package
puts for bus organized system applications. The flip-flops ap- TTL input and output level compatible pear transparent to the data when Latch Enable (LE) is CMOS power consumption HIGH. When LE is low, the data satisfying the input timing re- TRI-STATE outputs drive bus lines or buffer memory quirements is latched. Data appears on the bus when the address registers Output Enable (OE) is LOW. When OE is HIGH, the bus out-
Output sink capability of 32m A, source capability of
put is in the high impedance state.
m A Inverted version of the FCT373 Standard Microcircuit Drawing (SMD) 5962-8865101
Logic Symbols
IEEE/IEC
DS100969-1
DS100969-2
Pin Description Names
D0–D7 Data Inputs
LE Latch Enable Input OE Output Enable Input O0–O7 TRI-STATE Latch
Outputs
TRI-STATE® is registered trademark of National Semiconductor Corporation. FACT™ is trademark of Fairchild Semiconductor Corporation.
National Semiconductor Corporation DS100969 www.national.com
