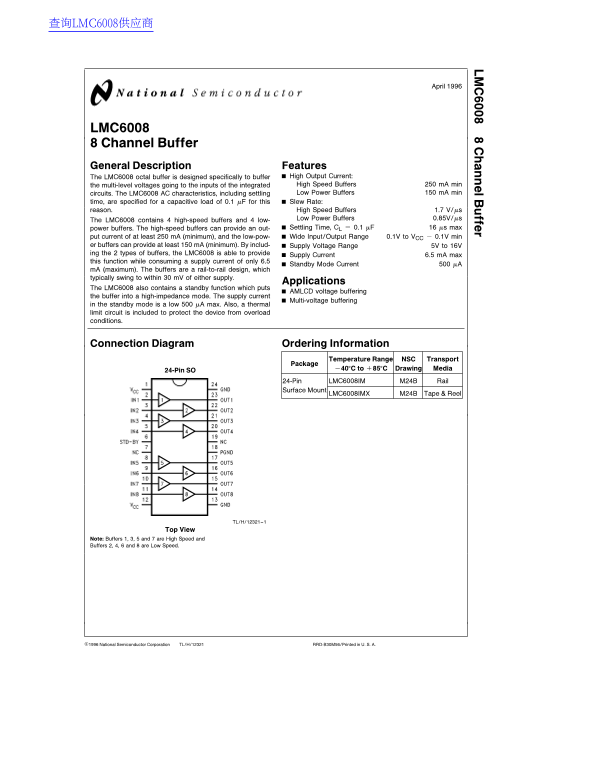

Page 1 Text Content
查询LMC6008供应商
April
LMC6008 Channel Buffer General Description Features
The LMC6008 octal buffer is designed specifically to buffer High Output Current: the multi-level voltages going to the inputs of the integrated High Speed Buffers m A min circuits. The LMC6008 AC characteristics, including settling Low Power Buffers m A min
time, are specified for capacitive load of 0.1 m F for this Slew Rate: reason. High Speed Buffers 1.7 V/ms
The LMC6008 contains high-speed buffers and low- Low Power Buffers 0.85V/ms power buffers. The high-speed buffers can provide an out- Settling Time, CL 0.1 m F ms max
put current of at least m A (minimum), and the low-pow- Wide Input/Output Range 0.1V to VCC 0.1V min er buffers can provide at least m A (minimum). By includ- Supply Voltage Range 5V to 16V ing the types of buffers, the LMC6008 is able to provide
Supply Current 6.5 m A max
this function while consuming supply current of only 6.5
Standby Mode Current m A
m A (maximum). The buffers are rail-to-rail design, which typically swing to within m V of either supply.
Applications
The LMC6008 also contains standby function which puts
AMLCD voltage buffering
the buffer into high-impedance mode. The supply current
Multi-voltage buffering
in the standby mode is low m A max. Also, thermal limit circuit is included to protect the device from overload conditions.
Connection Diagram Ordering Information
Temperature Range NSC Transport
Package
b40§C to a85§C Drawing Media
24-Pin SO
24-Pin LMC6008IM M24B Rail Surface Mount
LMC6008IMX M24B Tape Reel
TL/H/12321–1
Note: Buffers 1, 3, and are High Speed and Buffers 2, 4, and are Low Speed.
C1996 National Semiconductor Corporation TL/H/12321 RRD-B30M56/Printed in U. S. A.
