LM7372 High Speed, High Output Current, Dual Operational Amplifier General Description Features The LM7372 is a high speed dual voltage feedback amplifier −80d Bc highest harmonic distortion @1MHz, 2VPP that has the slewing characteristic of current feedback ampli-
Very high slew rate: 3000V/µs
fiers; yet it can be used in all traditional voltage feedback
Wide gain bandwidth product: 120MHz
amplifier configurations.
−3d B frequency @ AV = +2: 200MHz
The LM7372 is stable for gains as low as +2 or −1. It provides
Low supply current: 13m A (both amplifiers)
a very high slew rate at 3000V/µs and a wide gain bandwidth
product of 120MHz, while consuming only 6.5m A/per ampli- High open loop gain: 85d B
fier of supply current. It is ideal for video and high speed signal High output current: 150m A processing applications such as x DSL and pulse amplifiers.
Differential gain and phase: 0.01%, 0.02°
With 150m A output current, the LM7372 can be used for video distribution, as a transformer driver or as a laser diode driver.
Applications
Operation on ±15V power supplies allows for large signal
swings and provides greater dynamic range and signal-to- HDSL and ADSL Drivers
noise ratio. The LM7372 offers high SFDR and low THD, ideal Multimedia broadcast systems for ADC/DAC systems. In addition, the LM7372 is specified
Professional video cameras
for ±5V operation for portable applications.
CATV/Fiber optics signal processing
The LM7372 is built on National's Advance VIP® III (Vertically
Pulse amplifiers and peak detectors
integrated PNP) complementary bipolar process.
HDTV amplifiers
Typical Application

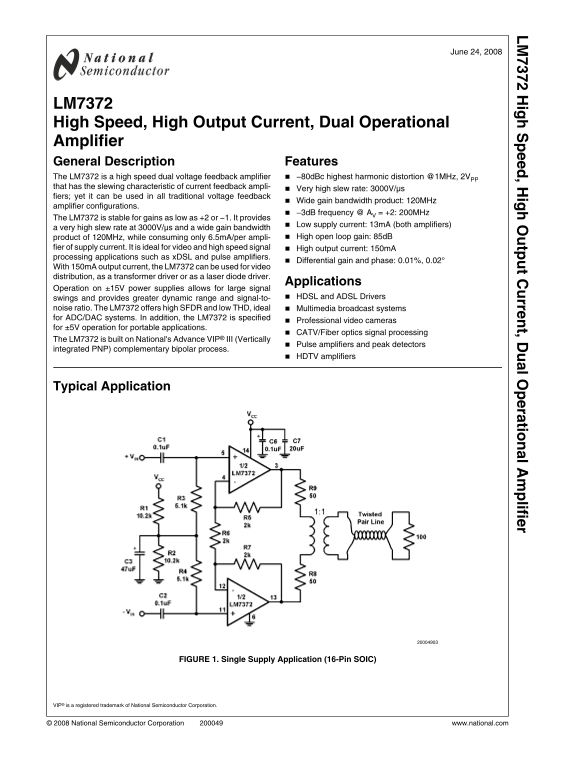

FIGURE 1. Single Supply Application (16-Pin SOIC)
