MSI Monitor G Series G2712 User Manual
Summary
Discover the G Series LCD Monitor line featuring high performance and versatility. This comprehensive user manual is essential for new owners, guiding you through every stage of setup and optimization, from initial stand installation to advanced OSD configuration. Learn how to connect your monitor to a PC via DisplayPort, utilize specialized modes (Gaming, Professional), review detailed specifications, and troubleshoot any issues. Designed for users seeking optimal visual performance—whether for professional work or dedicated gaming setups—it ensures effortless operation right out of the box.
Page 1 Text Content
G Series LCD Monitor G2412 (3BA4) G2422 (3BA4) G2422P (3BA4) G2712 (3CB5) G2722 (3CB5)
User Guide
Page Summary Contents For MSI Monitor G Series G2712 User Manual

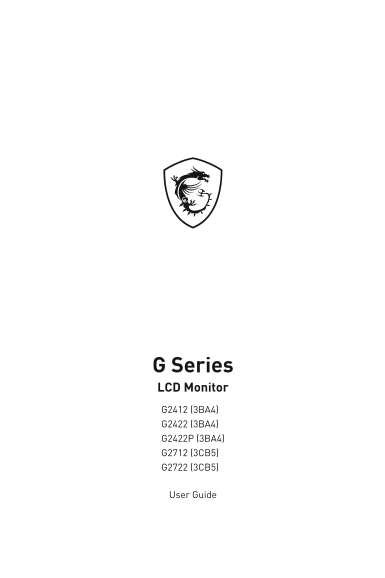

Page 1
G Series LCD Monitor G2412 (3BA4) G2422 (3BA4) G2422P (3BA4) G2712 (3CB5) G2722 (3CB5) User Guide
Page 2
Contents Getting Started .............................................................................................................. Package Contents ..................................................
Page 3
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static ...
Page 4
Installing the Monitor Stand Important Remove the screws on the monitor groove if needed before installing the stand. Place the monitor on a soft, protected surface to avoid scratching the display pan...
Page 5
G2422 / G2722 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. Tighten the stand bracket with screws. 2. Connect the base to the stand and tighten ...
Page 6
G2422P 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. Tighten the stand bracket with screws. 2. Connect the base to the stand and tighten the bas...
Page 7
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. Important Avoid touching the display panel when adjusting the monitor. 7Getting Starte...
Page 8
130mm Getting Started
Page 9
Monitor Overview G2412 / G2712 9Getting Started
Page 10
Getting Started
Page 11
11Getting Started
Page 12
Power Button Navi Key Kensington Lock Power Jack HDMI™ Connector Display Port Headphone Jack Cable Routing Hole Getting Started
Page 13
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the ...
Page 14
Getting Started
Page 15
OSD Setup This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-di...
Page 16
Up/Down/Left/Right: selecting function menus and items adjusting function values entering into/exiting from function menus Press (OK): launching the On-Screen Display (OSD) entering submenus confirmin...
Page 17
OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User Use Up or Down Button to select and preview mode FPS effects. Racing Press the OK Button to confirm and apply your mode RT...
Page 18
1st Level Menu 2nd/3rd Level Menu Description MPRT OFF When MPRT is enabled, Brightness cannot be enabled and will be grayed out. HDCR and MPRT cannot be enabled simultaneously. Response time will be ...
Page 19
1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync OFF Adaptive-Sync prevents screen tearing. MPRT will be disabled if Adaptive-Sync is enabled. Professional 1st Level Menu 2nd Level Menu Des...
Page 20
1st Level Menu 2nd Level Menu Description Image OFF Image Enhancement enhances image Enhancement edges to improve their acutance. Medium Strong Strongest Image 1st Level Menu 2nd/3rd Level Menu Descri...
Page 21
Input Source 1st Level Menu 2nd Level Menu Description HDMI™1 ∙ Users can adjust Input Source in any mode. HDMI™2 DP Auto Scan OFF Users can use the Navi Key to select Input Source at below status: • ...
Page 22
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 Users have to press the OK Button to confirm and apply the Language setting. English Language is an independent setting. Français Users’...
Page 23
1st Level Menu 2nd Level Menu Description HDMI™ CEC OFF HDMI™ CEC (Consumer Electronics Control) supports Sony Play Station®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devic...
Page 24
Specifications Model G2412 / G2422/ G2422P / G2712/ G2722 23.8 inch (G2412 / G2422 / G2422P) 27 inch (G2712/ G2722) Curvature Flat Panel Type IPS Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightn...
Page 25
Model G2412 / G2422/ G2422P / G2712/ G2722 Kensington Lock Yes Plate Type: 100 x 100 mm Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm 540.2...
Page 26
Preset Display Modes Standard Resolution HDMI™ DP VGA 640x480 @60Hz @67Hz @72Hz @75Hz 720x400 @70Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz XGA 1024x768 @60Hz @70Hz @75Hz SXGA 1152x864 @75Hz 1280x720 @60...
Page 27
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly inst...
Page 28
Safety Instructions Read the safety instructions carefully and thoroughly. All cautions and warnings on the device or User Guide should be noted. Refer servicing to qualified personnel only. Power Mak...
Page 29
California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.c...
Page 30
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certific...
Page 31
Regulatory Notices CE Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibi...
Page 32
WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, products of “electrical and electronic equipment” cannot be discarded as mu...
Page 33
Green Product Features Reduced energy consumption during use and stand-by Limited use of substances harmful to the environment and health Easily dismantled and recycled Reduced use of natural resource...
Manual Details
| Brand | MSI |
|---|---|
| Pages | 33 |
| File Size | 2.77 MB |
| Published | June 05, 2026 |
70 views
Enter the captcha to get the download link:
Frequently Asked Questions
How should I prevent static electricity when setting up the monitor?
Be careful in holding devices and use a grounded wrist strap to avoid static electricity.
What is the proper screen break recommendation for prolonged viewing?
Take a 10-minute break for every 30 minutes of screen time.
Where can I take this product after it reaches end-of-life?
Contact your local authorized point of collection or visit the MSI website for formal recycling and disposal information.
What if I run into a problem not covered in this manual?
Contact your place of purchase, a local distributor, or visit msi.com/support/
