MSI MAG Series Optix MAG271CR User Manual
Summary
This comprehensive guide provides essential information for setting up and maintaining your Optix Series LCD Monitor. It covers initial product setup, including stand adjustments and power connectivity, alongside detailed instruction on using the OSD menu. The manual also features full specifications, supported input types (HDMI, DP, etc.), resolution compatibility matrices, critical safety guidelines, and practical troubleshooting tips to ensure optimal viewing performance for all users.
Page 1 Text Content

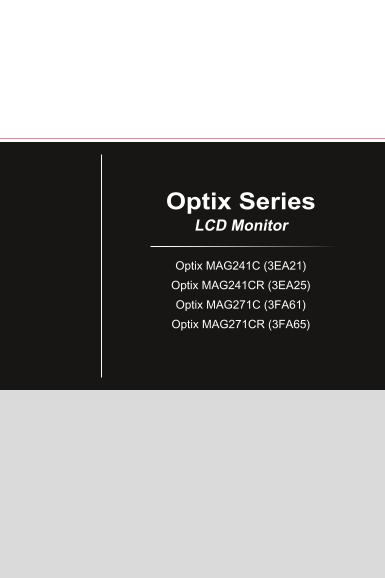

Optix Series LCD Monitor Optix MAG241C (3EA21) Optix MAG241CR (3EA25) Optix MAG271C (3FA61) Optix MAG271CR (3FA65)
Page Summary Contents For MSI MAG Series Optix MAG271CR User Manual
Page 1
Optix Series LCD Monitor Optix MAG241C (3EA21) Optix MAG241CR (3EA25) Optix MAG271C (3FA61) Optix MAG271CR (3FA65)
Page 2
Preface Contents Copyright and Trademarks Notice �������������������������������������������������������������������������� iii Revision ���������������������������������������������������������������...
Page 3
Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names ...
Page 4
Preface Safety Instructions Read the safety instructions carefully and thoroughly� All cautions and warnings on the device or user’s manual should be noted� Refer servicing to qualified personnel only...
Page 5
Preface Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� Always keep strong magnetic or electrical objects away from the device� If any of...
Page 6
Preface CE Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/...
Page 7
Preface WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, which takes effect on August 13, 2005, products of “electrical and ...
Page 9
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static ...
Page 10
Getting Started Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Cord 5� HDMI Cable 6� Display Port Cable 7� USB Upstream Cable (to enable the USB ports on the monitor) 8� Quick ...
Page 11
Getting Started Installing the Monitor Stand (Optional) Optix MAG241C/ MAG271C 1� Lay the monitor on a reliable flat surface. 2� Connect the base to the stand� 3� Tighten the base screw to secure the ...
Page 12
Getting Started Optix MAG241CR/ MAG271CR 1� Fit the stand to the monitor� 2� Connect the base to the stand� 3� Tighten the base screw to secure the base� IMPORTANT Place the monitor on a soft, protect...
Page 13
Getting Started Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities such as tilt and lift� IMPORTANT Avoid touching the display panel when ...
Page 14
Getting Started Monitor Overview HDMI1 HDMI2 DP Power Button Navi Key HDMI Port HDMI Port Display Port Headphone Jack USB 2�0 Type A Downstream Port
Page 15
Getting Started USB 2�0 Type A Downstream Port USB 2�0 Type B Upstream Port For USB Upstream Cable� IMPORTANT Check the package for USB Upstream Cable and connect it to the PC and To PC monitor� Once ...
Page 16
Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/Display Port cable from the monitor to your computer� 3� Connect the power cord to the monitor power jack� (...
Page 17
OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�
Page 18
OSD Setup Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key The Navi Key default settings are as follows� Navi Key ...
Page 19
OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Up Game Mode Press Middle Selecting function menus Button to confirm and items selection and exit� Allowing upw...
Page 20
OSD Setup Navi Key Hot Key Options Operations Refresh Rate Press Middle Button to confirm selection and exit� Press Right Button to turn on and Left Button to turn off the Refresh Rate.
Page 21
OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit y...
Page 22
OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur (OFF) ■ Brightness cannot be adjusted when Anti Motion Blur is set to ON� (ON) When Response Time is set to Fastest with at lea...
Page 23
OSD Setup Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted, except for Brightness, Contrast and E...
Page 24
OSD Setup Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 Brightness default is 80� Users can adjust Brightness in User, RTS, RPG and Reader mode� Brightness will be grayed out wh...
Page 25
OSD Setup Navi Key 1st Level Menu 2nd Level Menu Description Up OFF Up Button default is Game Mode� Brightness Down Button default is Screen Assistance� Game Mode Left Button default is Alarm Clock� R...
Page 26
OSD Setup Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 Language factory default is English� English Users have to press the Middle Button to confirm and apply the Language setting� ...
Page 27
Appendix IMPORTANT All information is subject to change without prior notice�
Page 28
Appendix Specifications Model Optix MAG241C Optix MAG271C Size 23�6 inch 27 inch Curvature 1500R 1800R Panel Type VA Resolution 1920 x 1080@144Hz Aspect Ratio 16:9 Brightness (nits) 300 (max) Contrast...
Page 29
Appendix Model Optix MAG241CR Optix MAG271CR Size 23�6 inch 27 inch Curvature 1500R 1800R Panel Type VA Resolution 1920 x 1080@144Hz Aspect Ratio 16:9 Brightness (nits) 300 (max) Contrast Ratio 3000:1...
Page 30
Appendix Preset Display Modes Optix MAG241C/ MAG271C Standard Resolution Optix MAG241CR/ MAG271CR HDMI / DP VGA 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz Dos-Mode 720x400@70Hz SVGA 800x6...
Page 31
Appendix Troubleshooting The power LED is off. Press the monitor power button again� Check if the monitor power cable is properly connected� No image� Check if the computer graphics card is properly i...
