MSI MAG Series Optix MAG321 CURV Product Manual User Guide (Language: English)
Summary
Optimize your workspace with the Optix Series LCD Monitor. This essential manual provides comprehensive guidelines for seamless setup, covering everything from initial hardware installation and connection instructions (DP, HDMI, Type-C) to advanced OSD settings. Users will find detailed specifications, troubleshooting solutions, and critical safety information necessary to maximize performance and achieve optimal viewing quality. Designed for professional users requiring versatile, high-resolution displays.
Page 1 Text Content

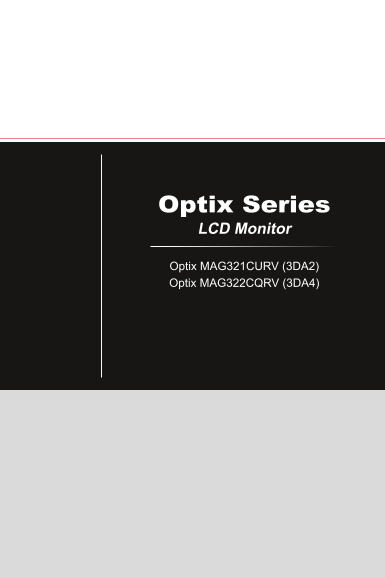

Optix Series LCD Monitor Optix MAG321CURV (3DA2) Optix MAG322CQRV (3DA4)
Page Summary Contents For MSI MAG Series Optix MAG321 CURV Product Manual User Guide (Language: English)
Page 1
Optix Series LCD Monitor Optix MAG321CURV (3DA2) Optix MAG322CQRV (3DA4)
Page 2
Preface Contents Copyright and Trademarks Notice �������������������������������������������������������������������������� iii Revision ���������������������������������������������������������������...
Page 3
Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names ...
Page 4
Preface Safety Instructions Read the safety instructions carefully and thoroughly� All cautions and warnings on the device or user’s manual should be noted� Refer servicing to qualified personnel only...
Page 5
Preface Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� Always keep strong magnetic or electrical objects away from the device� If any of...
Page 6
Preface CE Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/...
Page 7
Preface WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, products of “electrical and electronic equipment” cannot be discard...
Page 9
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static ...
Page 10
Getting Started Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Adapter & Power Cord 5� HDMI Cable 6� Display Port Cable 7� USB Upstream Cable (to enable the USB ports on th...
Page 11
Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor� 2� Tighten the stand with the stand screws� 3� Connect the base to the stand and tighten the base screw to secure the base...
Page 12
Getting Started Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor�...
Page 13
Getting Started Monitor Overview Power Button Navi Key Power Jack
Page 14
Getting Started HDMI Port Display Port USB Type-C Port (For Optix MAG321CURV) This port supports Display Port Alternate (DP Alt) Mode and up to 5V/3A (15W) power delivery� It only carries video signal...
Page 15
Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/Display Port cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord...
Page 17
OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�
Page 18
OSD Setup Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key
Page 19
OSD Setup The Navi Key default settings are as follows� Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Middle Button OSD Main Menu Entering submenus Optix MAG321CURV Co...
Page 20
OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Alarm Clock Press Middle Selecting function menus Button to confirm and items selection and exit� Exiting the c...
Page 21
OSD Setup Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness Press Middle Button to save value and...
Page 22
OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit y...
Page 23
OSD Setup GAMING 1st Level Menu 2nd/3rd Level Menu Description Game Mode User Default mode� All items can be adjusted by users� FPS Racing All items can be adjusted by users� RTS RPG Use Up or Down Bu...
Page 24
OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top Users can adjust Alarm Clock in any Mode� Right Top After setting the time, press the Middle Button to activate th...
Page 25
OSD Setup Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted by users�Cinema Designer Use Up or Dow...
Page 26
OSD Setup Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 Users can adjust Brightness in User, RTS, RPG and Reader mode� Brightness will be grayed out when Anti Motion Blur, HDR o...
Page 27
OSD Setup PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description OFF PIP (Picture in Picture) allows users to simultaneously display multiple video sources PIP Source HDMI1 on one screen� One program i...
Page 28
OSD Setup Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 Language factory default is English� English Users have to press the Middle Button to confirm and apply the Language setting� ...
Page 29
Appendix IMPORTANT All information is subject to change without prior notice�
Page 30
Appendix Specifications Model Optix MAG321CURV Optix MAG322CQRV (3DA2) (3DA4) Size 31�5 inch Curvature 1500R Panel Type VA Resolution 3840 x 2160 @ 60Hz 2560 x 1440 @144Hz Aspect Ratio 16:9 Brightness...
Page 31
Appendix Model Optix MAG321CURV Optix MAG322CQRV (3DA2) (3DA4) VESA Mounting Plate Type: 100 x 100mm Screw Type: M4 x 12mm Thread Diameter: 4mm Thread Pitch: 0�7mm Thread Length: 12mm Dimension (W x H...
Page 32
Appendix Preset Display Modes Optix MAG321CURV Optix MAG322CQRV (3DA2) (3DA4) Resolution HDMI DP / Type-C HDMI / DP 640x480 @60Hz @66Hz @72Hz @75Hz 720x400 @70Hz 800x600 @56Hz @60Hz @72Hz @75Hz 832x62...
Page 33
Appendix Optix MAG321CURV Optix MAG322CQRV (3DA2) (3DA4) Resolution HDMI DP / Type-C HDMI / DP 2560x1440 @60Hz @120Hz @144Hz 3840x2160 @30Hz @60Hz
Page 34
Appendix Troubleshooting The power LED is off. Press the monitor power button again� Check if the monitor power cable is properly connected� No image. Check if the computer graphics card is properly i...
Manual Details
| Brand | MSI |
|---|---|
| Pages | 34 |
| File Size | 860.73 KB |
| Published | May 29, 2026 |
87 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum operating temperature range?
The manufacturer advises keeping the device away from conditions above 60 C or below -20 C, noting the maximum operating temperature is around 40 C.
How do I connect the monitor and what kind of signals can it support?
You can use HDMI, DisplayPort (DP), and Type-C. The monitors support various resolutions and refresh rates up to 1280x1024 @60Hz or higher depending on the model.
The screen image is not properly sized or centered; what should I check?
Refer to Preset Display Modes to set your computer to a setting suitable for the monitor's intended display size and aspect ratio.
What steps should I take if there is no visible image on the screen?
Check the monitor power cable connection, ensure both the computer and monitor are powered on, and confirm the signal cable is properly connected.
