MSI Mag Series Optix MAG271CQR Product Manual and User Guide (Language: English)
Summary
Enhance your digital workspace with the Optix Series LCD Monitor, designed for professionals and serious PC users requiring superior visuals. This comprehensive manual serves as your complete guide, covering everything from initial setup and safe installation practices to detailed OSD control optimization. It includes essential technical specifications, connectivity instructions, and a thorough troubleshooting section to ensure optimal performance and longevity of your display equipment.
Page 1 Text Content
Optix Series LCD Monitor Optix MAG271CQR (3FA75) Optix MAG271CQP (3FA74)
Page Summary Contents For MSI Mag Series Optix MAG271CQR Product Manual and User Guide (Language: English)

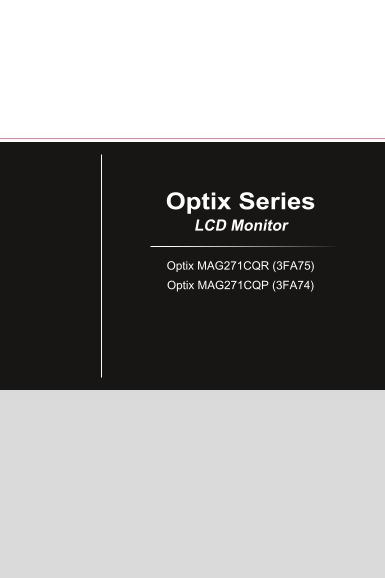

Page 1
Optix Series LCD Monitor Optix MAG271CQR (3FA75) Optix MAG271CQP (3FA74)
Page 2
Preface Contents Copyright and Trademarks Notice �������������������������������������������������������������������������� iii Revision ���������������������������������������������������������������...
Page 3
Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names ...
Page 4
Preface Safety Instructions Read the safety instructions carefully and thoroughly� All cautions and warnings on the device or user’s manual should be noted� Refer servicing to qualified personnel only...
Page 5
Preface Always keep strong magnetic or electrical objects away from the device� If any of the following situations arises, get the device checked by service personnel: The power cord or plug is damage...
Page 6
Preface CE Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/...
Page 7
Preface WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, which takes effect on August 13, 2005, products of “electrical and ...
Page 9
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static ...
Page 10
Getting Started Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Cord 5� HDMI Cable 6� Display Port Cable (for MAG271CQR) 7� USB Upstream Cable (to enable the USB ports on the mo...
Page 11
Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor� 2� Connect the base to the stand� 3� Tighten the base screw to secure the base� IMPORTANT 1� Place the monitor on a soft, ...
Page 12
Getting Started Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities such as tilt and lift� IMPORTANT Avoid touching the display panel when ...
Page 13
Getting Started Monitor Overview HDMI1 HDMI2 DPAC IN Power Button Navi Key Power Jack HDMI Port Display Port Headphone Jack USB 2�0 Type A Downstream Port
Page 14
Getting Started USB 2�0 Type B Upstream Port For USB Upstream Cable� IMPORTANT Check the package for USB Upstream Cable and connect it to the PC and To PC monitor� Once this cable is connected, the US...
Page 15
Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/Display Port cable from the monitor to your computer� 3� Connect the power cord to the monitor power jack� (...
Page 17
OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�
Page 18
OSD Setup Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key The Navi Key default settings are as follows� Navi Key ...
Page 19
OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Up Game Mode Press Middle Button Selecting function menus to confirm selection and items and exit� Allowing upw...
Page 20
OSD Setup Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness Press Middle Button to save value and...
Page 21
OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit y...
Page 22
OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur (OFF) ■ Brightness cannot be adjusted when Anti Motion Blur is set to ON� (ON) When Response Time is set to Fastest with at lea...
Page 23
OSD Setup Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted, except for Brightness, Contrast and E...
Page 24
OSD Setup Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 Brightness default is 80� Users can adjust Brightness in User, RTS, RPG and Reader mode� Brightness will be grayed out wh...
Page 25
OSD Setup PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description OFF PIP (Picture in Picture) allows users to simultaneously display multiple video PIP Source HDMI1 sources on one screen� One program i...
Page 26
OSD Setup Navi Key 1st Level Menu 2nd Level Menu Description Up OFF Up Button default is Game Mode� Brightness Down Button default is Screen Assistance� Game Mode Left Button default is Alarm Clock� R...
Page 27
OSD Setup Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 Language factory default is English. English Users have to press the Middle Button to confirm and apply the Language setting. ...
Page 29
Appendix IMPORTANT All information is subject to change without prior notice�
Page 30
Appendix Specifications Size 27 inch Curvature 1800R Panel Type VA Resolution 2560 x 1440@144Hz Aspect Ratio 16:9 Brightness (nits) 400 (typical) Contrast Ratio 3000:1 Refresh Rate 144Hz Response Time...
Page 31
Appendix Environment Operating Temperature: 0°C to 40°C Humidity: 20% to 90%, non-condensing Altitude: 0 ~ 5000m Storage Temperature: -20°C to 60°C Humidity: 10% to 90%, non-condensing LED Control Mys...
Page 32
Appendix Preset Display Modes Standard Resolution HDMI / DP VGA 640x480 @60Hz 640x480 @67Hz 640x480 @72Hz 640x480 @75Hz Dos-Mode 720x400@70Hz SVGA 800x600 @56Hz 800x600 @60Hz 800x600 @72Hz 800x600 @75...
Page 33
Appendix Troubleshooting The power LED is off. Press the monitor power button again� Check if the monitor power cable is properly connected� No image� Check if the computer graphics card is properly i...
