MSI Optix MAG322CQR Product Manual and User Guide (Language: English)
Summary
Elevate your workspace with the Optix Series LCD Monitor, designed for professional clarity and reliable performance. This essential user guide provides comprehensive instructions for setup, covering safe installation procedures, optimal connection setup via HDMI or Type-C ports, and detailed OSD adjustment controls. Inside, you will find guides on various display modes, troubleshooting common issues, and best practices to ensure your monitor operates at peak efficiency. Perfect for users needing reliable connectivity, fine display tuning, and professional visual quality.
Page 1 Text Content

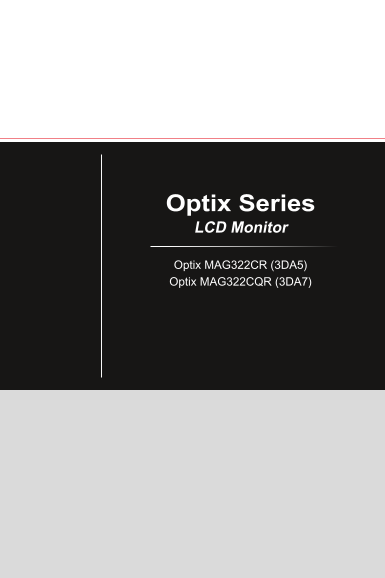

Optix Series LCD Monitor Optix MAG322CR (3DA5) Optix MAG322CQR (3DA7)
Page Summary Contents For MSI Optix MAG322CQR Product Manual and User Guide (Language: English)
Page 1
Optix Series LCD Monitor Optix MAG322CR (3DA5) Optix MAG322CQR (3DA7)
Page 2
Preface Contents Copyright and Trademarks Notice �������������������������������������������������������������������������� iii Revision ���������������������������������������������������������������...
Page 3
Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names ...
Page 4
Preface Safety Instructions Read the safety instructions carefully and thoroughly� All cautions and warnings on the device or user’s manual should be noted� Refer servicing to qualified personnel only...
Page 5
Preface Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� Always keep strong magnetic or electrical objects away from the device� If any of...
Page 6
Preface CE Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/...
Page 7
Preface WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, products of “electrical and electronic equipment” cannot be discard...
Page 9
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static ...
Page 10
Getting Started Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Adapter & Power Cord 5� HDMI Cable 6� Display Port Cable 7� USB Upstream Cable (to enable the USB ports on th...
Page 11
Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor� 2� Tighten the stand with the stand screws� 3� Connect the base to the stand and tighten the base screw to secure the base...
Page 12
Getting Started Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor�...
Page 13
Getting Started Monitor Overview Power Button Navi Key Display Port HDMI Port
Page 14
Getting Started USB Type-C Port This port supports Display Port Alternate (DP Alt) Mode and up to 5V/3A (15W) power delivery� It only carries video signals and doesn’t support data transmission functi...
Page 15
Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/ Display Port/ USB Type-C cable from the monitor to your computer� 3� Assemble the monitor power adapter &am...
Page 16
Getting Started Screws for Wall Mount your Monitor Follow the wall mounting kit instructions to mount the monitor onto the wall� Optional PB1-8 Important • Place the monitor on a soft, protected surfa...
Page 17
OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�
Page 18
OSD Setup Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key The Navi Key default settings are as follows� Navi Key ...
Page 19
OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Up Game Mode Press Middle Selecting function menus Button to confirm and items selection and exit� Allowing upw...
Page 20
OSD Setup Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness Press Middle Button to save value and...
Page 21
OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit y...
Page 22
OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur (OFF) ■ When Anti Motion Blur is enabled, HDCR and Brightness cannot be enabled and will be grayed out� Response time will be g...
Page 23
OSD Setup Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted by users� Cinema All items can be adju...
Page 24
OSD Setup Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 Users can adjust Brightness in User, RTS, RPG and Reader mode� Brightness will be grayed out when Anti Motion Blur or HDC...
Page 25
OSD Setup Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 Language factory default is English� English Users have to press the Middle Button to confirm and apply the Language setting� ...
Page 27
Appendix IMPORTANT All information is subject to change without prior notice�
Page 28
Appendix Specifications Model Optix MAG322CR Optix MAG322CQR (3DA5) (3DA7) Size 31�5 inch Curvature 1500R Panel Type VA Resolution 1920 x 1080 @180Hz 2560 x 1440 @165Hz Aspect Ratio 16:9 Brightness (n...
Page 29
Appendix Model Optix MAG322CR Optix MAG322CQR (3DA5) (3DA7) VESA Mounting Plate Type: 100 x 100mm Screw Type: M4 x 12mm Thread Diameter: 4mm Thread Pitch: 0�7mm Thread Length: 12mm Dimension (W x H x ...
Page 30
Appendix Preset Display Modes Optix MAG322CR Optix MAG322CQR (3DA5) (3DA7) Resolution HDMI DP/ Type-C HDMI DP/ Type-C 640x480 @60Hz @67Hz @72Hz @75Hz 720x480 @60Hz 720x576 @50Hz 800x600 @56Hz @60Hz @7...
Page 31
Appendix Troubleshooting The power LED is off. Press the monitor power button again� Check if the monitor power cable is properly connected� No image� Check if the computer graphics card is properly i...
