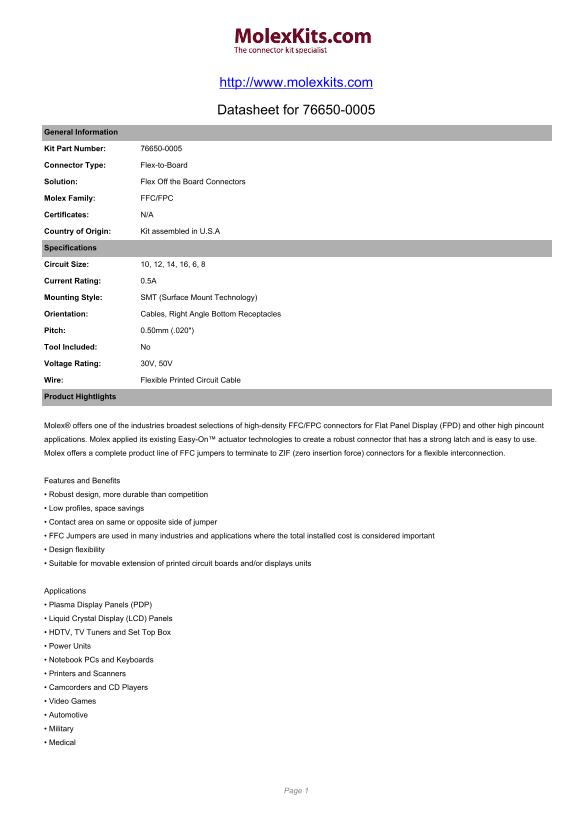

Page 1 Text Content
http://www.molexkits.com
Datasheet for 76650-0005
General Information
Kit Part Number: 76650-0005
Connector Type: Flex-to-Board
Solution: Flex Off the Board Connectors
Molex Family: FFC/FPC
Certificates: N/A
Country of Origin: Kit assembled in U.S.A
Specifications
Circuit Size: 10, 12, 14, 16, 6, 8
Current Rating: 0.5A
Mounting Style: SMT (Surface Mount Technology)
Orientation: Cables, Right Angle Bottom Receptacles
Pitch: 0.50mm (.020")
Tool Included: No
Voltage Rating: 30V, 50V
Wire: Flexible Printed Circuit Cable
Product Hightlights
Molex® offers one of the industries broadest selections of high-density FFC/FPC connectors for Flat Panel Display (FPD) and other high pincount applications. Molex applied its existing Easy-On™ actuator technologies to create a robust connector that has a strong latch and is easy to use. Molex offers a complete product line of FFC jumpers to terminate to ZIF (zero insertion force) connectors for a flexible interconnection.
Features and Benefits • Robust design, more durable than competition • Low profiles, space savings • Contact area on same or opposite side of jumper • FFC Jumpers are used in many industries and applications where the total installed cost is considered important • Design flexibility • Suitable for movable extension of printed circuit boards and/or displays units
Applications • Plasma Display Panels (PDP) • Liquid Crystal Display (LCD) Panels • HDTV, TV Tuners and Set Top Box • Power Units • Notebook PCs and Keyboards • Printers and Scanners • Camcorders and CD Players • Video Games • Automotive • Military • Medical
