Makita DCS230T DCS232T Instruction Manual

Summary

The MAKITA DCS230T/DCS232T are professional-grade chain saws designed specifically for tree surgery and demanding forestry applications. This comprehensive guide provides detailed instructions for trained professionals, covering safe assembly, operation, advanced maintenance (including lubrication and component replacement), and troubleshooting procedures. It emphasizes OSHA-compliant safety protocols and details the use of state-of-the-art features like automatic chain braking, ensuring reliable performance for users in elevated or challenging environments.

📄 Preview ‹ PAGE OF 20 ›

‹

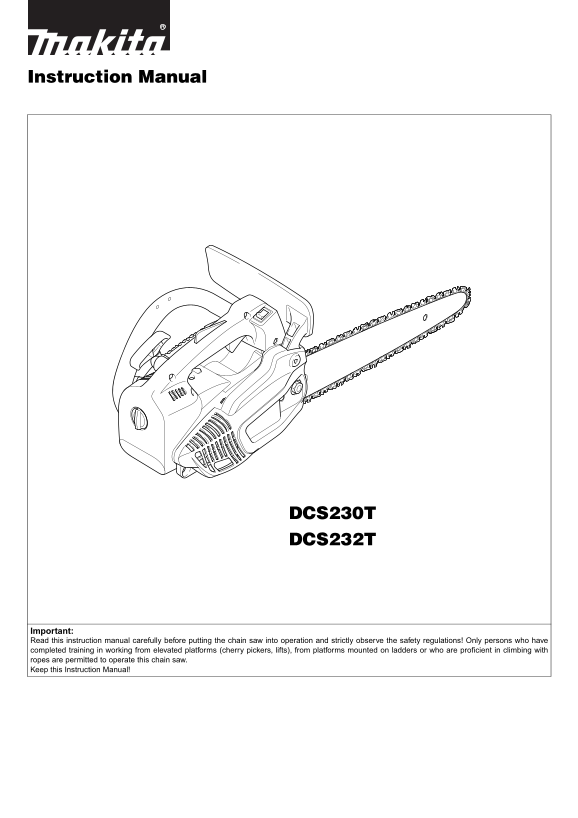

Makita DCS230T DCS232T Instruction Manual - Page 1

›

Page 1 Text Content

Instruction Manual

DCS230T DCS232T

Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Only persons who have completed training in working from elevated platforms (cherry pickers, lifts), from platforms mounted on ladders or who are proficient in climbing with ropes are permitted to operate this chain saw. Keep this Instruction Manual!

Page Summary Contents For Makita DCS230T DCS232T Instruction Manual

Page 1 Instruction Manual DCS230T DCS232T Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Only persons who have comp...

Page 2 Thank you for purchasing a MAKITA product! Table of contents Page Congratulations on choosing a MAKITA chain saw! We are confident that Packing............................................................

Page 3 Symbols You will notice the following symbols on the chain saw and in the instruction manual: Read instruction manual and follow the I/STOP-switch Chain brake warning- and safety (short-circuit switch...

Page 4 SAFETY PRECAUTIONS CAUTION: This chain saw is designed especially for tree care and surgery. All work with this chain saw is to be carried out by properly trained persons only. Observe all literature,...

Page 5 Before starting work the chain saw must be checked for perfect function and operating safety according to the prescriptions. Check especially the function of the chain brake, the correct mounting of t...

Page 6 The saw must be running whenever you remove the chain saw from the wood. When performing several cuts the throttle lever must be released in between. Be careful when cutting splintery wood. Cut pieces...

Page 7 First aid For the event of a possible accident, please make sure that a first aid kit is always immediately available close by. Immediately replace any items used from the first aid box. When calling ...

Page 8 Denomination of components Rear handle Safety locking button (throttle lock) Throttle lever Hand guard (release for chain brake) Chain Guide bar Guide bar case Retaining nuts Chain catch (safety devic...

Page 9 Position the guide bar (7). Lift the chain (9) over the sprocket (10). Using your right hand, guide the chain into the top guide groove (11) on the guide bar. Note that the cutting edges along the top...

Page 10 Chain brake The DCS230T and DCS232T come with an inertia chain brake as standard equipment. If kick- back occurs due to contact of the guide-bar tip with wood (see “SAFETY PRECAUTIONS”), the chain bra...

Page 11 Chain oil Use an oil with adhesive additive for lubricating the chain and guide bar. The adhesive additive prevents the oil from being flung off the chain too quickly. We recommend the use of chain oi...

Page 12 To ensure troublefree operation of the oil pump the oil guide groove at the housing (2) and the oil inlet bore in the guide bar (3) must be cleaned regularly. Checking the chain lubrication Never work...

Page 13 Checking the chain brake Do not work with the chain saw without first checking the chain brake! Start the engine as described (make sure you have a good footing, and place the chain saw on the ground ...

Page 14 All cutters must be sharpened to the same angle, 30°. Different angles result in a roughly, irregu- larly running chain, increase wear and tear and cause chain beakage. The 85° front rake of the cutte...

Page 15 Cleaning the guide bar, lubricating the sprocket nose CAUTION: Protective gloves must be worn. Regularly inspect the bearing surfaces of the guide bar for damage, and clean them with a suitable tool. ...

Page 16 Electrode gap The electrode gap must be 0.6 – 0.7 mm. 0.6 0.7 mm Cleaning the inlet port of the cooling air Unscrew four screws (2). Remove recoil starter (3). Clean the inlet port (4) and the cylinde...

Page 17 Instructions for periodic maintenance To ensure long life, prevent damage and ensure the full functioning of the safety features the following maintenance must be performed regularly. Guaran- tee clai...

Page 18 Guarantee MAKITA guarantees the highest quality and will therefore reimburse all costs for repair by replacement of damaged parts resulting from material or pro- duction faults occurring within the gu...

Page 20 Makita Corporation Anjo Aichi Japan 884570A5
