Makita Cordless Driver Drill 6226D Instruction Manual
Summary
This comprehensive guide provides detailed operating instructions and crucial safety guidelines for your Cordless Driver Drill. Designed for skilled DIYers and professionals, this manual covers everything from precise model specifications (Models 6226D-6228D) to best practices for safe electrical use. Use these essential warnings and care tips to ensure optimal performance, extend the tool's lifespan, and operate safely on any job site.
Page 1 Text Content

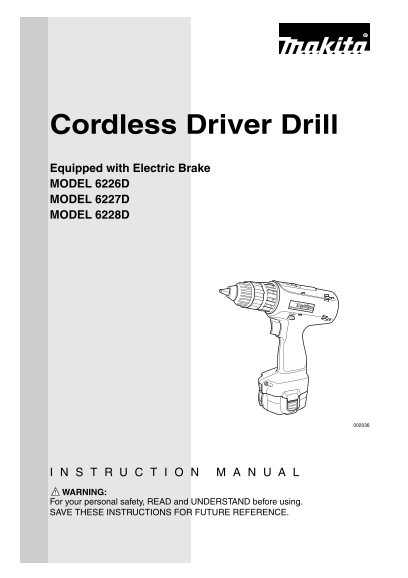

Cordless Driver Drill Equipped with Electric Brake MODEL 6226D MODEL 6227D MODEL 6228D
WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Page Summary Contents For Makita Cordless Driver Drill 6226D Instruction Manual
Page 1
Cordless Driver Drill Equipped with Electric Brake MODEL 6226D MODEL 6227D MODEL 6228D WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
Page 2
SPECIFICATIONS Model 6226D 6227D 6228D Steel 10 mm (3/8”) Wood 21 mm (13/16”) 24 mm (15/16”) 24 mm (15/16”) Capacities 5.1 x 38 mm 5.1 x 63 mm 5.1 x 63 mm Wood screw Machine screw 6 mm (1/4”) 6 mm (1/...
Page 3
SAVE THESE INSTRUCTIONS Work Area tery pack into a tool with the switch on invites accidents. 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite acci- 9. Remove adjusti...
Page 4
small metal objects that can make a con- 20. Use only accessories that are recom- nection from one terminal to another. mended by the manufacturer for your Shorting the battery terminals together may ...
Page 5
SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. SYMBOLS USD301-1 The followings show the symbols used...
Page 6
b. That extension cord is properly wired c. That wire size is at least as large as and in good electrical condition; the one specified in the table below. Table 1: RECOMMENDED MINIMUM AWG SIZE FOR EXT...
Page 7
7. Do not incinerate the Battery Cartridge 8. Be careful not to drop, shake or strike bat- even if it is severely damaged or is com- tery. pletely worn out. The battery cartridge can 9. Do not charge ...
Page 8
FUNCTIONAL CAUTION: DESCRIPTION Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cart...
Page 9
NOTE: The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. When you charge a new battery cartridge or a battery cartridg...
Page 10
6. After charging, unplug the charger from the power source. NOTE: The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. ...
Page 11
Switch action CAUTION: Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. 1. Switch tr...
Page 12
CAUTION: Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the “I” side and “II” side, the tool may be dam...
Page 13
Installing or removing driver bit or drill bit Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn...
Page 14
Nominal diameter of Recommended size wood screw (mm) of pilot hole (mm) 3.1 (1/8”) 2.0 - 2.2 (5/64” - 3/32”) 3.5 (9/64”) 2.2 - 2.5 (3/32” - 3/32”) 3.8 (5/32”) 2.5 - 2.8 (3/32” - 7/64”) 4.5 (11/64”) 2....
Page 15
If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for minutes before proceeding with a fresh battery. MAINTENANCE CAUTION: Always be sure that the...
Page 16
ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of in...
Page 17
Stamp Timbre Makita Canada Inc. 1950 Forbes Street, Whitby, Ontario L1N 7B7
Page 18
as te as te as te as te as te as te Your answers to the following questions are appreciated. 1. This product was purchased from? 3. How did you first learn of Makita Power Tools? Hardware/lumber Store...
Page 19
Factory Service Centres Head Office: 1950 Forbes St., Whitby, Ontario, L1N 7B7 Regional Office: 11771 Hammersmith Way, Richmond Regional Office: 6389 boul, Couture, St. Leonard, Quebec (514) 323 - 122...
Page 20
MAKITA LIMITED ONE YEAR WARRANTY Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials f...
