Makita Automatic Drapery Opener System Instruction Manual
Summary
Master the installation of automated window treatments with this comprehensive guide for the Makita Drapery Opener System. This manual details the setup and operation of Parent and Child motorized units, outlining multiple control methods including infrared remote controls, timers, and contact closures. Designed for electricians and advanced DIY users, it provides step-by-step wiring diagrams, electrical specifications, compatibility information for various tracks and accessories, ensuring reliable professional installation of custom automation systems.
Page 1 Text Content

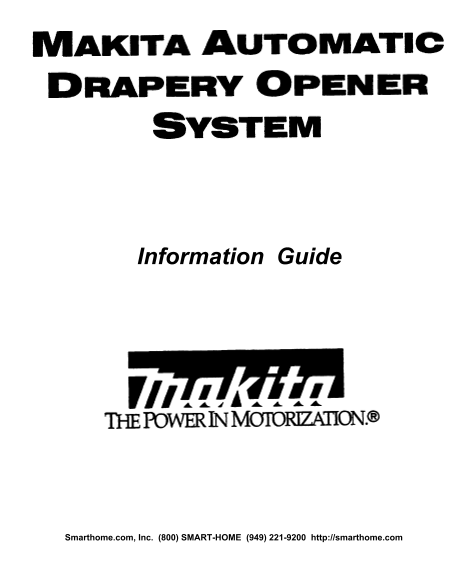

-- -- DRAPERYOPENER SVSTEM
Information Guide
Page Summary Contents For Makita Automatic Drapery Opener System Instruction Manual
Page 1
-- -- DRAPERYOPENER SVSTEM Information Guide
Page 2
Table of Contents PART 1: OVERVIEW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~.................................................3 MOTORS . ....
Page 3
Part 1: Overview Motors The Makita Automatic Drapery Opener System offers two different types of motors; the ZZCMl Ol (Figure I) which is the “Parent” motor, and the ZZCM301 (Figure 2) which is the “K...
Page 4
While the “Parent” motors come set to address 1 they can be altered to addresses 2-8. “Kids” only know to follow the address of the ‘Parent? For example, if the “Parenr is attered to be address #3 the...
Page 5
Installs as easily same as a manual traverse rod Same quality and reliability you have come to expect from Makita Part 2: Methods of Control The Makita motors can be controlled by the Makiia infrared ...
Page 6
Wall Switch The wall switch works on the same principle as the remote control in that it sends the serial data, but is limited to addresses/frequencies 1 - 3. The wall switch works a maximum of three ...
Page 7
be used with the “Kid” motor (ZZCM301). Direct connection to the ‘Kid” can damage the Ccl. Figure 11 The CCI has the capability to send all ten frequencies to the motor. It also has an all feature tha...
Page 8
Part 3: Address Changes All of the CMl Ol’s come from the factory set to address 1 and will respond to the open, close and stop commands for frequencies 1. They will also accept and pass on the comman...
Page 9
Leaving the motors unchanged from the factory, both ‘Parent” motors would respond to the #I command and both kids would respond to the #2 command. To achieve independent control of all motors it becom...
Page 10
4. Locate connections that need to be cut. (Figure 17) Figure 17 5. Using chart below, find connection(s) to be cut in order to obtain desired address. ADDRESS - CONNECTIONS 0 = Leave Connection Intac...
Page 11
Binary Codes The 77CMl 01 “Parent” motor is controlled by signal sent in 10 bit serial data streams with no leader codes. The data configurations can be seen in binary code format below. First Pulse T...
Page 12
Part 4: Accessories All accessories discussed in this section plug into the ‘Timer” port of the “Parenr motor. When using more than one accessory, the ‘Splitter” (22654001-A) must be used. While the p...
Page 13
Model ZZQ2CW: 42’ length, four wire flat phone type, 26AWG (7 X 34) stranded bare copper conductor with RJQ modular plugs on each end and all four wires connected. (Figure 21) Model z Z42CW-2: 42’ len...
Page 14
Part 5: Wiring and Application Diagrams and Product Spec Sheets
Page 15
Assembly Diagram 1l OV wall Recepde
Page 16
Simulfaneous 2 Mofor - Operafion Connecfion Simultaneous operation of two “Parenr motors can be achieved by connecting them from “Timef‘ port to “Timer“ port using connecting wire 7723CW-2 or 2242CW-2...
Page 17
Application Sheet “Daisy-Chain ” - Multiple motors operating simultaneously As shown: Three motors linked together operated by one wall switch. Up to ten (10) motors can be wired in sequence zzc M1ol ...
Page 18
Application Sheet Maximum Doubles using RC60 with simultaneous over-drapery independent from simultaneous under-drapery Pl Pl P3 porttotherpoft pofttotimerport zz42cw-2 or new-2 zz42cw-2 or za2cw-2 22...
Page 19
iodel ZZCMl Ol Pwwx(D) 8” x 3-718” x l-7/8” Remote Range 35 FT. Weight 2.3 LBS. Max. Drape Weight 60 LBS. Voltage 120 VAC 1 Power Cord Length 1o FT. Amperage .31 Amp. Power Cord Type SPT-2 18/2 AWG Cy...
Page 20
kdel ZZCM301 8” x 3-7/8” x l-7/8” Remote Range 35 FT. kww Jx(D) Weight 2.3 LBS. Max. Drape Weight 60 LBS. Voltage 120 VAC Power Cord Length 10FT. hmperage .31 Amp. Power Cord Type SPT-2 18/2 AWG Sycle...
Page 21
Model 22654001-A ~wwm) 518” x 7/8” x 1 -l/2” For use with multiple controls e.g. Connecting Cord 6 Inches Timer, Wall Switch, Extended I.R. Voltage Low / +5 volts Receiver or “Chaining Motors”.
Page 22
Model 22631103-A www(D) 4-13/32” x 2013/32” x l-3/32” Voltage Low / +5 volts Out-Put Wiring Class 2 - Flat 4 wire (phone type) 26 AWG +Put Wiring Gage not exceed 18 AWG ,ABS Case Flame Rating 94v-0
Page 23
Part Number Iz22CW, &42CW 26 AWG (7x34) Stranded Bare Copper Conductors - 4 Conductor Wire Outside Diameter 2.3mm x 4.9mm/.090” x .193” Jacket Thickness .55mm/.02” insulation Constkuction Avg. Thi...
Page 24
1 Connecting Wire Specifications Part Nun tber ZZ22CW-2, z Z42CW-2 26 AWG (7x34) Stranded 3are Copper Conductors - 4 Conductor Wire IR Disable - Not Used +5V - Not USed Outside Diameter 2.3mm x 4.9mm/...
Page 25
Wall Switch Specifications Model ZZVVSl O, 2Zk VS20, A/US30 WAIL SWIXH OPEMTION Mad& -10 sin& ZZWS20 doubk. zws30 triple MOdd ZZWSIO p Eiq fk one motor Dcnombwwa~szqainanyposidon Comes with 25...
Page 26
Labeled timer port, better described as the Input Pcvffor controls. Used for the timer, wall switch, contact closure interface and multiple parent motor connections.
Page 27
Track Specifications Model ZZOSTK, ZZOSTK-WH, 222OTK, 2220TK-WH Material 60630T5 Finish Powder Coat White or Clear Anodized Neight per Foot 2.3 Lbs. Typ Wall .050
Page 28
Models 223SWCB, 223SWCB=WH, ZZGDWCB, 226DWCB-WH Universal for Wall or Ceiling Mounting Z23SWCB & Z23SWCB-WH IZGDWCB & ZZGDWCB-WH 223SWCB (Zinc) & ZZ3SWCB-WH (White) for Single Tracks. Adju...
Manual Details
| Brand | Makita |
|---|---|
| Pages | 28 |
| File Size | 715.55 KB |
| Published | May 26, 2026 |
76 views
Enter the captcha to get the download link:
Frequently Asked Questions
How must multiple motors be connected and controlled?
Only the 'Parent' motor receives commands, and it controls up to two 'Kid' motors via modular wires.
What signals does the Parent motor process?
The Parent motor is the only unit that can receive command signals: Open, Close, or Stop signals.
What is the recommended size for the connecting wire conductors?
The connective wires use 26 AWG stranded copper conductors.
What are the adjustable wall projection limits for single tracks?
For single tracks, the bracket's adjustable wall projection ranges from 2-3/8” to 4-1/8".
