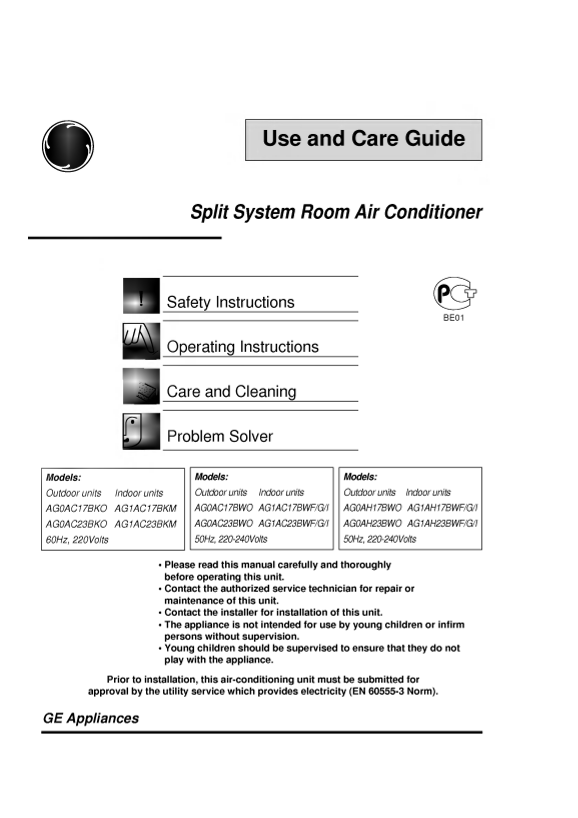

Use and Care Guide
System Room Air Conditioner
Split
Safety Instructions
Operating Instructions
Care and Cleaning
Problem Solver
Models: Models: Models: Outdoor units Indoor units Outdoor units Indoor units Outdoor units Indoor units AG0AC17BKO AG1AC17BKM AG0AC17BWO AG1AC17BWF/G/I AG0AH17BWO AG1AH17BWF/G/I AG0AC23BKO AG1AC23BKM AG0AC23BWO AG1AC23BWF/G/I AG0AH23BWO AG1AH23BWF/G/I 60Hz, 220Volts 50Hz, 220-240Volts 50Hz, 220-240Volts
Please read this manual carefully and thoroughly before operating this unit. Contact the authorized service technician for repair or maintenance of this unit. Contact the installer for installation of this unit.
The appliance is not intended for use by young children or infirm
persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
Prior to installation, this air-conditioning unit must be submitted for
approval by the utility service which provides electricity (EN 60555-3 Norm).
GE Appliances
Page Summary Contents For LG Split Air Conditioner Wall Mount Unit LS-D2461CE.DWZGEC User Manual - English
Page 1
Use and Care Guide System Room Air Conditioner Split Safety Instructions Operating Instructions Care and Cleaning Problem Solver Models: Models: Models: Outdoor units Indoor units Outdoor units Indoor...
Page 2
CONTENTS SAFETY PRECAUTIONS...............................................................................3 Installation precautions.......................................................................
Page 3
SAFETY PRECAUTIONS To prevent injury to the user or other people and properties damage, the following instructions must be followed. Incorrect operation due to ignoring of instruction will cause harm ...
Page 4
WARNING Otherwise, it will cause electrical It will cause electrical shock or fire It will cause electrical shock or fire. shock or fire due to heat due to heat generation. generation or electrical sh...
Page 5
CAUTION It may cause an injury. Water enter the unit and An oxygen shortage may occur. may degrade the insulation. It may cause an electric shock. Since the fan rotates at high speed This could injure...
Page 6
CAUTION For installation When the unit is not going Do not operate for long time WARNING to be used for long time, in high humidity, e.g. leaving turn off the breaker. door or window open. Consult you...
Page 7
PRODUCT COMPONENT IDENTIFICATION (1) Feature GASoft Dry Operation Mode(page 13) This mode is designed to dehumidify without overcooling. GBAuto Operation(page 14) In this mode of the selecting operati...
Page 8
Indoor Unit Air Intake Vent (front panel) Remote Controller Air Outlet Vent Storage Horizontal Airflow Direction Louver Air Filters Vertical Airflow Direction Louver (behind panel) (The air outlet ven...
Page 9
(3) Name and Function-Remote Controller Remote Controller GAOperation display Displays the operation conditions. Signal transmitter Button GBStart/Stop Operation starts when this button is pressed, an...
Page 10
(4) Remote Controller Preparation How to store the remote controller How to mount onto wall Pull the both ends of Use the screws to secure the holder to panel slightly to the wall. open. Confirm that ...
Page 11
AIR CONDITIONER OPERATION (1) Operation Mode Cooling Mode Cooling Mode Soft Dry Mode Soft Dry Mode Auto Mode Auto Mode (Cooling Model) Heating Mode (Heat Pump Model) (2) Operation Procedure 1st Start/...
Page 12
GACooling Operation Mode LED lamp ON) Press the Start/Stop Button. Beep Beep, Two short beeps will sound and the lamp will operation light up. Select Cooling Operation. Press the Operation Mode Select...
Page 13
GB Soft Dry Operation Mode This mode dehumidifies without overcooling. LED lamp ON) Press the Start/Stop Button. Beep Beep, Two short beeps will sound and the lamp will operation light up. Select Soft...
Page 14
GC Auto Operation Mode LED lamp ON) Press the Start/Stop Button. Beep Beep, Two short beeps will sound and the lamp will operation light up. Select Auto Operation. Press the Operation Mode Selection B...
Page 15
GD Heating Operation Mode (Heat pump model only) LED lamp ON) Press the Start/Stop Button. Beep Beep, Two short beeps will sound and the lamp will operation light up. Select Heating Operation. Press t...
Page 16
GE FAN Operation Mode This mode is used to circulate room air without cooling or heating. LED lamp ON) Press the Start/Stop Button. Beep Beep, Two short beeps will sound and the operation lamp will li...
Page 17
(3) Sleep Mode Auto Control Setting LED lamp ON) Remote Controller The Sleep Mode will be operated at low fan speed(Cooling) or med. fan speed(Heating) for quiet sleeping. Press the Sleep Mode Auto Bu...
Page 18
(4) Airflow Direction Procedure GA Vertical Airflow Direction Control Airflow Direction Control The airflow direction can be adjusted as desired by using the remote controller. This is effective when ...
Page 19
GB Horizontal Airflow Direction Control Adjust the horizontal airflow direction by manually moving the horizontal airflow direction louver by hand. (5) Setting the Present Time The present time can be...
Page 20
(6) Timer Setting LED lamp ON) Remote Controller ON TIME OFF TIME a.m. a.m. p.m. p.m. Hr. ON Timer Button or OFF Timer Heating Button Cooling ON OFF Time Setting Button Timer SET Button SET CANCEL Tim...
Page 21
Timer Setting Procedure Confirm the present time.(Refer to page 19) Press ON Timer Button or OFF Timer Button. Select one of the following four types of operation. ON OFF OFF TIME OFF Delay Operation ...
Page 22
Soft Dry Operation Mode When the room temperature is higher than the setting temperature, it operates cooling mode as the the fan speed AUTO mode, then and then it will be switched to setting temperat...
Page 23
FORCED OPERATION Operation procedures when the remote controller can't be used. Open the panel upward and press the Forced Operation Button. If you want to stop press During operation, again. Forced o...
Page 24
CARE AND MAINTENANCE Disconnect the power plug or turn off Remove the air filters. the breaker. Take hold of the tab and pull slightly forward to remove the filter. When the air filter is to be remove...
Page 25
WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR LONG TIME. When it is not going to be used for When the air conditioner is to long time. be used again. Clean the air filter and install it in the ...
Page 26
OPERATION TIPS Do not overcool the room. Keep blinds or curtains Keep the room temperature closed. uniform. This is not good for the Do not let direct sunshine Adjust the vertical and health and waste...
Page 27
BEFORE CALLING FOR SERVICE Check the before requesting or service.... If the malfunction please following points repairs persist, contact your dealer. Does not operate. The room has It seems that Air ...
Page 28
General Electric Company, Appliance Park, Louisville, KY, USA Models: Models: Models: Outdoor units Indoor units Outdoor units Indoor units Outdoor units Indoor units AG0AC17BKO AG1AC17BKM AG0AC17BWO ...
