Page 1

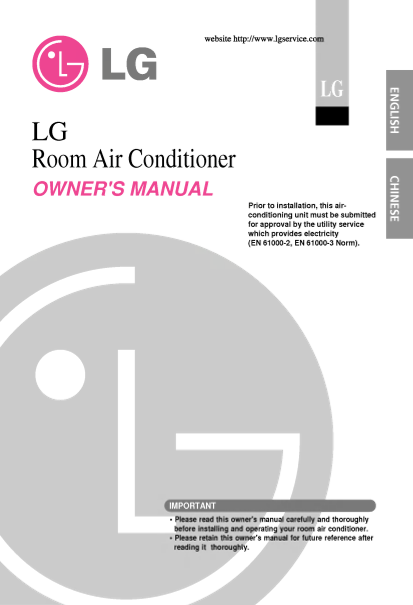

LG Room Air Conditioner OWNER'S MANUAL Prior to installation, this air- conditioning unit must be submitted for approval by the utility service which provides electricity (EN 61000-2, EN 61000-3 Norm)...
Page 2
FOR YOUR RECORDS Write the model and serial numbers here: Model Serial You can find them on label on the side of each unit. Dealer's Name Date Purchased Staple your receipt to this page in the event y...
Page 3
Safety Precautions Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instruction wi...
Page 4
Safety Precautions Operation Do not operate or stop the unit by inserting or Do not allow water to run into electric parts. pulling out the power plug. It will cause electric shock or fire due to heat...
Page 5
Safety Precautions Operation Never touch the metal parts of the unit when Do not clean the air conditioner with water. removing the filter. They are sharp and may cause injury. Water may enter the uni...
Page 6
Prior to operation Prior to operation Preparing for operation 1. Contact an installation specialist for installation. 2. Plug in the power plug properly. 3. Use dedicated circuit. 4. Do not use an ext...
Page 7
Operating Instructions Operating Instructions Remote Controller Remove the battery cover by pulling it according to the arrow direction. Insert new batteries making sure that the and of battery are in...
Page 8
Operating Instructions Remote Control Operation The remote control transmits the signals to the system. 1. START/STOP BUTTON Operation starts when this button is pressed transmitter and stops when the...
Page 9
Operating Instructions Cooling Operation Press the Start/Stop button. The unit will respond with beep. ENGLISH Open the door on the remote control. To select Cooling Operation, press the Operation Mod...
Page 10
Operating Instructions Auto Operation(Optional) Press the Start/Stop button. The unit will respond with beep. Open the door on the remote control. To select Auto Operation, press the Operation Mode Se...
Page 11
Operating Instructions Auto Changeover Operation(Optional) Press the Start/Stop button. The unit will respond with beep. ENGLISH Open the door on the remote control. To select Auto Changeover Operatio...
Page 12
Operating Instructions Healthy Dehumidification Operation Press the Start/Stop button. The unit will respond with beep. Open the door on the remote control. To select Healthy Dehumidification Operatio...
Page 13
Operating Instructions Heating Operation(Heat pump model only) Press the Start/Stop button. The unit will respond with beep. ENGLISH Open the door on the remote control. To select Heating Operation, p...
Page 14
Operating Instructions Jet Cool Operation Press the Start/Stop button. The unit will respond with beep. Press the Jet Cool button to operate the speed cooling mode and the unit will operate in super h...
Page 15
Operating Instructions PLASMA Purification Operation(Optional) the Start/Stop button. The unit will respond with beep. ENGLISHPress Open the door on the remote control. Press the PLASMA air purifying ...
Page 16
Operating Instructions 2nd Operation Press the Start/Stop button. The unit will respond with beep. Open the door of the remote control and press the 2nd Function button to operate functions printed in...
Page 17
Operating Instructions Additional features Sleep Mode 1. Press the Sleep Mode Auto button to set the time To cancel the Sleep Mode, press the sleep you want the unit to turn off automatically. Mode Au...
Page 18
Operating Instructions Vertical Airflow Direction Control The up/down airflow (Vertical Airflow) can be NOTICE adjusted by using the remote control. If you press the CHAOS swing button, the horizontal...
Page 19
Operating Instructions Air Circulation Mode Circulates the room air without cooling or heating. 1. Press the Start/Stop button. the unit will respond with beep. 2. Open the door on the remote control....
Page 20
Maintenance and Service Maintenance and Service CAUTION: Before performing any maintenance, turn off the main power to the system. Indoor Unit and Remote Control Never use any of the followings: Grill...
Page 21
Maintenance and Service Replacement of Purifying Filter(Optional) Recomended use period About years 1. Open and remove air filters. 2. Remove Filters. panel Triple deodorizing 3. Insert new Triple deo...
Page 22
Maintenance and Service When the air conditioner is not going to be used for time. When air conditioner is not going to be used for long time. 1. Operate the air conditioner on mode for to hours. This...
Page 23
Maintenance and Service Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center. Case Explanation See page The air condi...
Page 24
Room Air Conditioner
