Lenze Inverters-Frequency Inverters I5X0 Motec Frequency Inverters I550 Motec Frequency Inverters Certificate and Declaration Safety Engineering UK Type-Examination I510 I550 I650 Motec Basic Safety
Summary
This Type-Examination Certificate confirms that the Safe Torque Off (STO) function—realized by Hans-Lenze safety modules within i510/i550/i650 motec drive series—meets stringent UK machinery standards. The document proves compliance with major industrial regulations (SI 2008 No. 1597) and international technical standards, achieving high safety levels such as Category 4 / PL e and SIL 3. This certificate is essential for manufacturers requiring validated proof of advanced machine reliability and safety compliance in their electrical drives.
Page 1 Text Content
/2 2. , T nd re eg is te re tr ad em ar ks . U til is at io an ap pl ic at io re qu ire pr io ap pr ov al

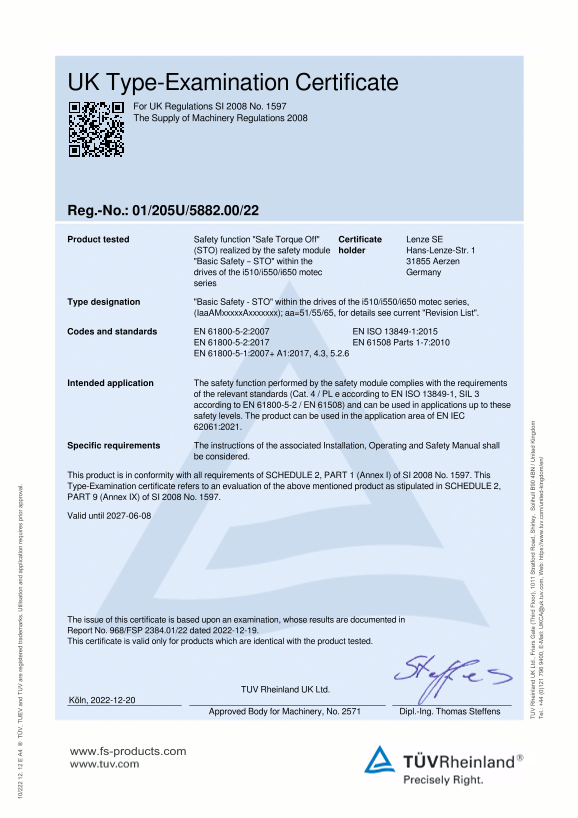

UK Type-Examination Certificate For UK Regulations SI 2008 No. 1597
The Supply of Machinery Regulations 2008
Reg.-No.: 01/205U/5882.00/22 Product tested Safety function "Safe Torque Off" Certificate Lenze SE
(STO) realized by the safety module holder Hans-Lenze-Str. 1 "Basic Safety – STO" within the 31855 Aerzen drives of the i510/i550/i650 motec Germany series
Type designation "Basic Safety - STO" within the drives of the i510/i550/i650 motec series,
(Iaa AMxxxxx Axxxxxxx); aa=51/55/65, for details see current "Revision List".
Codes and standards EN 61800-5-2:2007 EN ISO 13849-1:2015
EN 61800-5-2:2017 EN 61508 Parts 1-7:2010 EN 61800-5-1:2007+ A1:2017, 4.3, 5.2.6
Intended application The safety function performed by the safety module complies with the requirements
of the relevant standards (Cat. 4 / PL e according to EN ISO 13849-1, SIL 3 according to EN 61800-5-2 / EN 61508) and can be used in applications up to these safety levels. The product can be used in the application area of EN IEC 62061:2021.
Specific requirements The instructions of the associated Installation, Operating and Safety Manual shall
be considered.
This product is in conformity with all requirements of SCHEDULE 2, PART 1 (Annex I) of SI 2008 No. 1597. This Type-Examination certificate refers to an evaluation of the above mentioned product as stipulated in SCHEDULE 2, PART 9 (Annex IX) of SI 2008 No. 1597.
Valid until 2027-06-08
he in la nd td ria rs at (T hi rd lo or tr at fo rd oa d, hi rle y, ol ih ul l B ni te in gd om el 0) , E -M ai l: uk .tu v. co , W eb : h ttp s: //w .tu v. co /u ni te d- ki ng do /e n/
The issue of this certificate is based upon an examination, whose results are documented in Report No. 968/FSP 2384.01/22 dated 2022-12-19. This certificate is valid only for products which are identical with the product tested.
TUV Rheinland UK Ltd.
Köln, 2022-12-20
Approved Body for Machinery, No. 2571 Dipl.-Ing. Thomas Steffens
www.fs-products.com
Powered by TCPDF (www.tcpdf.org)
Page Summary Contents For Lenze Inverters-Frequency Inverters I5X0 Motec Frequency Inverters I550 Motec Frequency Inverters Certificate and Declaration Safety Engineering UK Type-Examination I510 I550 I650 Motec Basic Safety
Manual Details
| Brand | Lenze |
|---|---|
| Pages | 1 |
| File Size | 464.88 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What specific safety function is certified?
The product is certified for the 'Safe Torque Off' (STO) basic safety function.
What is the intended safety compliance level (EN ISO 13849-1)?
It complies with Cat. 4 / PL e according to EN ISO 13849-1 and SIL 3 according to EN 61508.
How long is this Type-Examination certificate valid for?
The certificate is valid until June 8, 2027.
What must be considered regarding installation and operation?
The instructions of the associated Installation, Operating and Safety Manual shall be considered.
