This specialized integrated Safety Unit provides Safe Torque Off (STO) functionality for robust machinery control systems. Designed to comply with strict international standards (including PL e and SIL 3), it significantly enhances operational safety in industrial drives. The accompanying manual is a comprehensive guide covering professional installation, safe operation procedures, and ensuring adherence to all required technical specifications for high-risk applications. Ideal for engineers needing certified safety upgrades for advanced automation and machinery.
Page 1 Text Content
/2 2. , T nd re eg is te re tr ad em ar ks . U til is at io an ap pl ic at io re qu ire pr io ap pr ov al

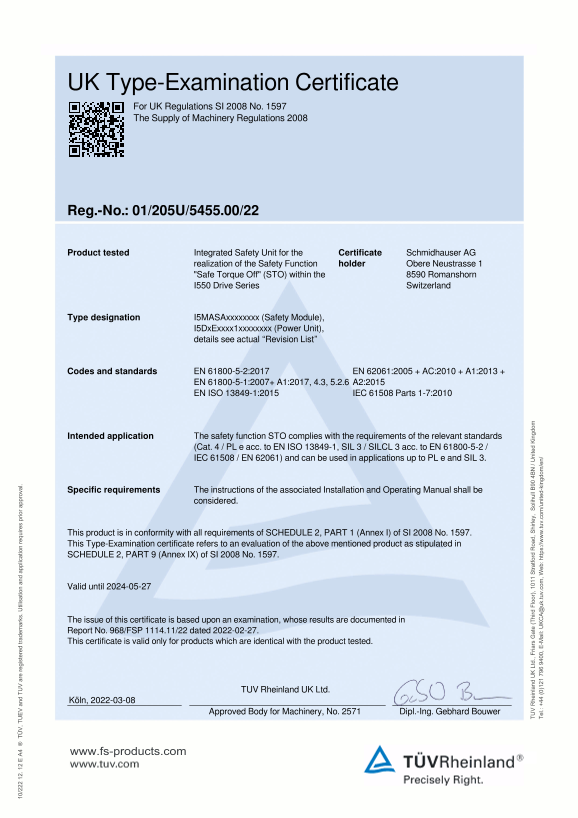

UK Type-Examination Certificate For UK Regulations SI 2008 No. 1597
The Supply of Machinery Regulations 2008
Reg.-No.: 01/205U/5455.00/22
Product tested Integrated Safety Unit for the Certificate Schmidhauser AG
realization of the Safety Function holder Obere Neustrasse 1 "Safe Torque Off" (STO) within the 8590 Romanshorn I550 Drive Series Switzerland
Type designation I5MASAxxxxxxxx (Safety Module),
I5Dx Exxxx1xxxxxxxx (Power Unit), details see actual “Revision List”
Codes and standards EN 61800-5-2:2017 EN 62061:2005 + AC:2010 + A1:2013 +
EN 61800-5-1:2007+ A1:2017, 4.3, 5.2.6 A2:2015 EN ISO 13849-1:2015 IEC 61508 Parts 1-7:2010
Intended application The safety function STO complies with the requirements of the relevant standards
(Cat. 4 / PL e acc. to EN ISO 13849-1, SIL 3 / SILCL 3 acc. to EN 61800-5-2 / IEC 61508 / EN 62061) and can be used in applications up to PL e and SIL 3.
Specific requirements The instructions of the associated Installation and Operating Manual shall be
considered.
This product is in conformity with all requirements of SCHEDULE 2, PART 1 (Annex I) of SI 2008 No. 1597. he in la nd td ria rs at (T hi rd lo or tr at fo rd oa d, hi rle y, ol ih ul l B ni te in gd om el 0) , E -M ai l: uk .tu v. co , W eb : h ttp s: //w .tu v. co /u ni te d- ki ng do /e n/
This Type-Examination certificate refers to an evaluation of the above mentioned product as stipulated in SCHEDULE 2, PART 9 (Annex IX) of SI 2008 No. 1597.
Valid until 2024-05-27
The issue of this certificate is based upon an examination, whose results are documented in Report No. 968/FSP 1114.11/22 dated 2022-02-27. This certificate is valid only for products which are identical with the product tested.
TUV Rheinland UK Ltd.
Köln, 2022-03-08
Approved Body for Machinery, No. 2571 Dipl.-Ing. Gebhard Bouwer
www.fs-products.com
Powered by TCPDF (www.tcpdf.org)
Page Summary Contents For Certified and Declaration: Lenze UK Safety Engineering Safety Frequency Inverters i500 Safety I5MASA0 Cabinet
Manual Details
| Brand | Lenze |
|---|---|
| Pages | 1 |
| File Size | 467.76 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety levels are supported by this integrated unit?
The unit complies with requirements up to PL e and SIL 3.
Is this certificate usable for any machine?
No, the certificate is valid only for products that are identical with the product tested.
How do I properly set up or use the safety function?
You must consider the instructions of the associated Installation and Operating Manual.
When does this Type-Examination certificate expire?
This certification is valid until 2024-05-27.
