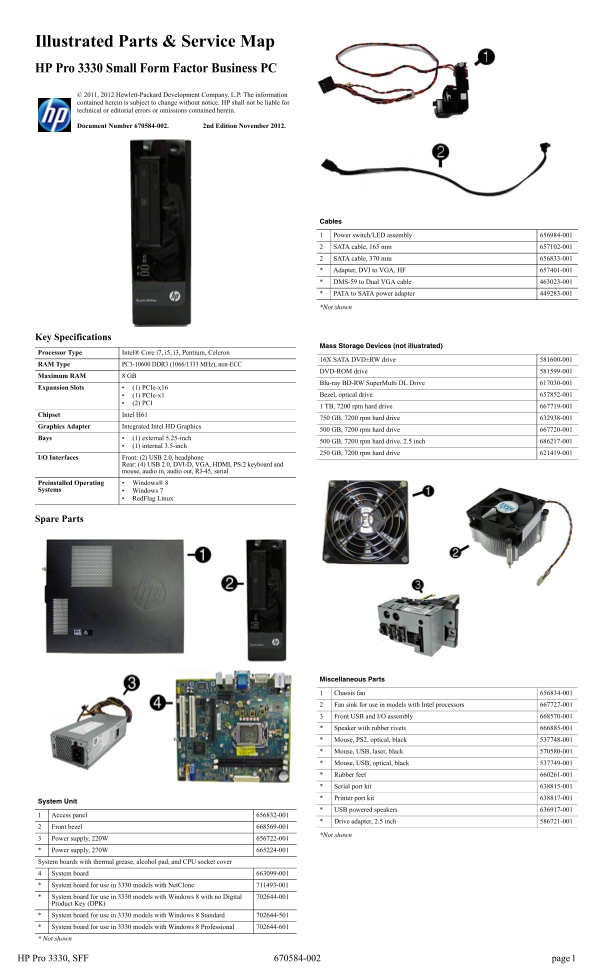

Illustrated Parts & Service Map HP Pro 3330 Small Form Factor Business PC © 2011, 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 670584-002. 2nd Edition November 2012.
Cables
Power switch/LED assembly 656984-001 SATA cable, 165 mm 657102-001 SATA cable, 370 mm 656833-001 Adapter, DVI to VGA, HF 657401-001 DMS-59 to Dual VGA cable 463023-001 PATA to SATA power adapter 449283-001
*Not shown
Key Specifications
Mass Storage Devices (not illustrated)
Processor Type Intel® Core i7, i5, i3, Pentium, Celeron
16X SATA DVD±RW drive 581600-001
RAM Type PC3-10600 DDR3 (1066/1333 MHz), non-ECC
DVD-ROM drive 581599-001
Maximum RAM 8 GB
Blu-ray BD-RW Super Multi DL Drive 617030-001
Expansion Slots (1) PCIe-x16
(1) PCIe-x1 Bezel, optical drive 657852-001
(2) PCI
1 TB, 7200 rpm hard drive 667719-001
Chipset Intel H61
750 GB, 7200 rpm hard drive 632938-001
Graphics Adapter Integrated Intel HD Graphics
500 GB, 7200 rpm hard drive 667720-001
Bays (1) external 5.25-inch
500 GB, 7200 rpm hard drive, 2.5 inch 686217-001
(1) internal 3.5-inch
250 GB, 7200 rpm hard drive 621419-001
I/O Interfaces Front: (2) USB 2.0, headphone
Rear: (4) USB 2.0, DVI-D, VGA, HDMI, PS/2 keyboard and mouse, audio in, audio out, RJ-45, serial
Preinstalled Operating Windows® 8 Systems Windows 7
Red Flag Linux
Spare Parts
Miscellaneous Parts
Chassis fan 656834-001 Fan sink for use in models with Intel processors 667727-001 Front USB and I/O assembly 668570-001 Speaker with rubber rivets 666885-001 Mouse, PS2, optical, black 537748-001 Mouse, USB, laser, black 570580-001 Mouse, USB, optical, black 537749-001 Rubber feet 660261-001 Serial port kit 638815-001 Printer port kit 638817-001
System Unit
USB powered speakers 636917-001
Access panel 656832-001
Drive adapter, 2.5 inch 586721-001
Front bezel 668569-001
*Not shown
Power supply, 220W 656722-001 Power supply, 270W 665224-001 System boards with thermal grease, alcohol pad, and CPU socket cover System board 663099-001 System board for use in 3330 models with Net Clone 711493-001 System board for use in 3330 models with Windows 8 with no Digital 702644-001 Product Key (DPK) System board for use in 3330 models with Windows 8 Standard 702644-501 System board for use in 3330 models with Windows 8 Professional 702644-601 * Not shown
HP Pro 3330, SFF 670584-002
