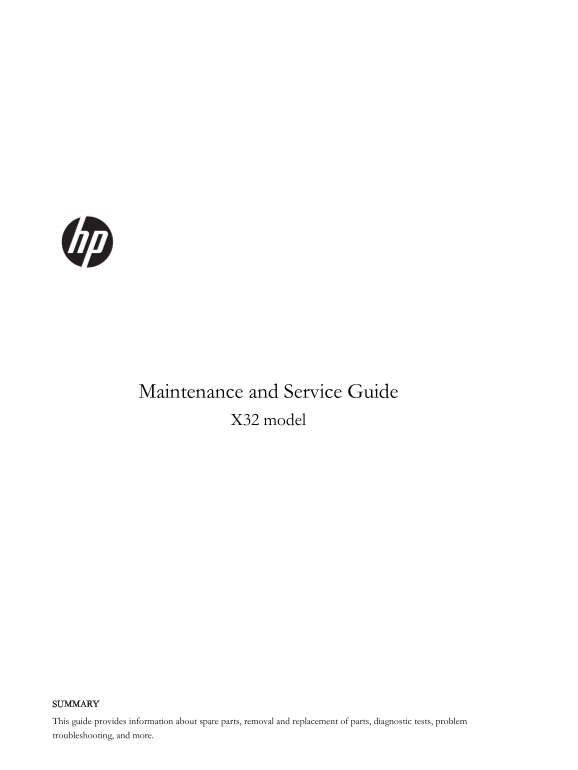

Maintenance and Service Guide X32 model SUMMARY This guide provides information about spare parts, removal and replacement of parts, diagnostic tests, problem troubleshooting, and more.
Page 2
© Copyright 2021 HP Development Company, Product notice L.P. Only trained service personnel familiar with this AMD is a trademark of Advanced Micro product should service it. Before performing any Dev...
Page 3
Table of Contents 1. Getting started ......................................................................................................................................................................
Page 4
1. Getting started Read this chapter to learn about safety information and where to find additional HP resources. Important safety information Carefully read the cautions and notes within this documen...
Page 5
● If you must replace a capacitor, insert new parts carefully to avoid a short circuit caused by the near pin. ● Do not get the board wet. Water and moisture can cause a short circuit that causes malf...
Page 6
Measurements that are not within specified limits present a possible shock hazard. You must check and repair the product before returning it to the customer.
Page 7
2. Monitor features This chapter provides an overview of the monitor’s features. Features Depending on the model, your monitor might include the following features: 80.1 cm (31.5 in) diagonal viewab...
Page 8
Front components To identify the components on the front of the monitor, use this illustration and table. Table 1-1: Front components and their descriptions Component Function 1 Menu button Press to o...
Page 9
Rear components To identify the components on the rear of the monitor, use this illustration and table. Table 1-2: Rear components and their descriptions Component Function 1 OSD buttons 2 Power butto...
Page 10
Locating the serial number and product number Depending on the product, the serial number and product number are located on a label on the rear of the monitor or on a label under the front bezel of th...
Page 12
3. Illustrated parts catalog To identify the monitor major components, use this illustration and table. item part name q'ty 1 DECO 1 2 LENS 1 3 MIDDLE FRAME 1 4 MYLAR 1 5 POWER BOARD 1 6 KEY BOARD 1 7...
Page 13
How to order parts The HP authorized repair center can purchase the power board from HP. Power board Description HP spare part number Manufacturer part number X32 M84748-001 ADPCK1908FGB Capacitors an...
Page 14
NOTE: Rear cover and chassis need to be modified to hold connector. Connector may need modifications to meet functional, safety and regulatory requirements accordingly if it doesn’t match exactly. You...
Page 15
4. Removal and replacement procedures Adherence to these procedures and precautions is essential for proper service. Preparation for disassembly Use this information to properly prepare to disassemble...
Page 16
Remove the rear cover Step Figure Description Put the monitor face down on a matched Remove the cushion HINGE ASS'Y Remove the hinge assy by push the hook up Remove the Remove the rear cover REAR_COVE...
Page 17
Remove the Remove the mainframe mainframe screws ,
Page 18
Tear out all Remove the mylar tapes Remove the Remove the boards screws by the screwdriver Power board and mainboard and converter board
Page 19
Remove the Remove the screws by the middle frame screwdriver panel Power board The power board part number is ADPCK1908FGB Before removing the power board, follow these steps: ▲ Prepare the monitor fo...
Page 20
Warning : after unpluging the power supply, the capacitance is still chagred, do not touch and discharge the capacitor 2) Locate the part number location on the board.
Page 21
Connector repair This procedure includes HDMI, Display Port , USB and audio connectors. The connectors are on the main board (board part number CBPRPA8H1F1). The connectors identifiers are as follows:...
Page 22
components and lead to malfunctions. • The fusion point of Lead-Free solder is requested. Repairing with conventional lead wire may cause damage. • Work quickly to avoid overheating the circuit board ...
Page 23
2) Use a hot air gun to melt the solder on the pins. 3) Lift the J2 connector from the PCB. 4) Place the new component on the PCB. Be sure that it matches the PCB footprint. 5) Solder the new componen...
Page 24
2) Use a hot air gun to melt the solder on the pins. 3) Lift the J3 connector from the PCB. 4) Place the new component on the PCB. Be sure that it matches the PCB footprint. 5) Solder the new componen...
Page 25
Support and troubleshooting The following table lists possible problems, the possible cause or each problem, and the recommended solutions. Table 4-2: Solving common problems Problem Possible cause So...
Page 26
