HAWK AMD K7 User's Manual
Summary
Essential technical documentation guide detailing the necessary jumper settings and configurations for a wide array of AMD K7 series motherboards. This manual is crucial for PC builders, electronics technicians, and hardware enthusiasts needing to accurately set the Front Side Bus (FSB) multiplier across dozens of models (including K7VT4A+, M810LMR, and K7S41). It provides precise step-by-step instructions, ensuring stable operation when configuring FSB speeds from 200MHz up to 400MHz. Use this resource to correctly calibrate your classic AMD workstation setup and guarantee proper boot stability before system assembly.

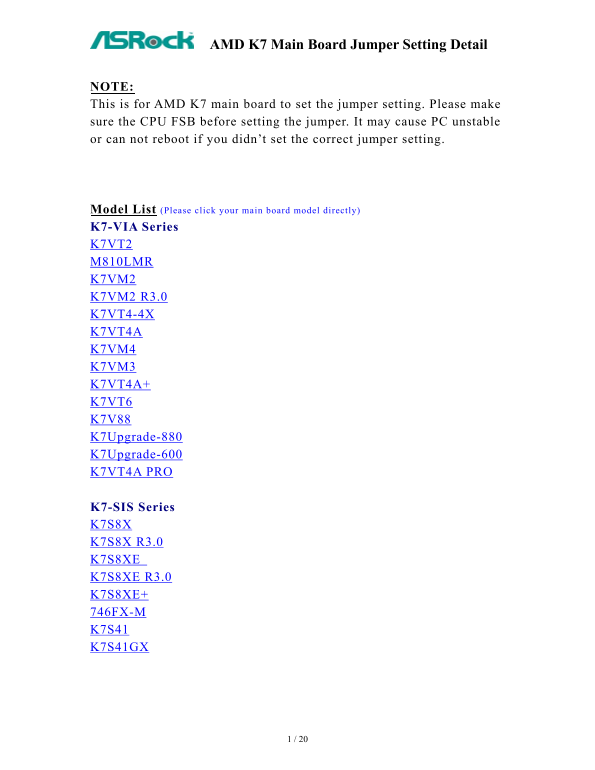

Page 1 Text Content
AMD K7 Main Board Jumper Setting Detail
NOTE: This is for AMD K7 main board to set the jumper setting. Please make sure the CPU FSB before setting the jumper. It may cause PC unstable or can not reboot if you didn’t set the correct jumper setting.
Model List (Please click your main board model directly) K7-VIA Series K7VT2 M810LMR K7VM2 K7VM2 R3.0 K7VT4-4X K7VT4A K7VM4 K7VM3 K7VT4A+ K7VT6 K7V88 K7Upgrade-880 K7Upgrade-600 K7VT4A PRO
K7-SIS Series K7S8X K7S8X R3.0 K7S8XE K7S8XE R3.0 K7S8XE+ 746FX-M K7S41 K7S41GX
Page Summary Contents For HAWK AMD K7 User's Manual
Page 1
AMD K7 Main Board Jumper Setting Detail NOTE: This is for AMD K7 main board to set the jumper setting. Please make sure the CPU FSB before setting the jumper. It may cause PC unstable or can not reboo...
Page 2
AMD K7 Main Board Jumper Setting Detail K7VT2: Support FSB 200/266 (User Guide P.11) Jumper Setting 100 (= FSB 200):FSB_SEL1 : 2_3 Please move the jumper cap to FSB_SEL1 : 2_3 Jumper Setting 133 (= FS...
Page 3
AMD K7 Main Board Jumper Setting Detail K7VM2: Support FSB 200/266 (User Guide P.11) Jumper Setting 100MHz (= FSB 200):FSB_SEL1 : 2_3 Please move the jumper cap to FSB_SEL1 : 2_3 Jumper Setting 133MHz...
Page 4
AMD K7 Main Board Jumper Setting Detail K7VT4-4X : Support FSB 200/266/333 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 Jumper Setting 266MHz:Non...
Page 5
AMD K7 Main Board Jumper Setting Detail K7VT4A: Support FSB 200/266/333 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 Jumper Setting 266MHz:None P...
Page 6
AMD K7 Main Board Jumper Setting Detail K7VM4: Support FSB 200/266/333 (User Guide P.12) Jumper Setting 200MHz:FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL1 : 1_2 Jumper Setting 266MHz:None Pl...
Page 7
AMD K7 Main Board Jumper Setting Detail K7VM3: Support FSB 200/266/333 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 Jumper Setting 266MHz:None Pl...
Page 8
AMD K7 Main Board Jumper Setting Detail K7VT4A+: Support FSB 200/266/333/400 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 and FSB...
Page 9
AMD K7 Main Board Jumper Setting Detail K7VT6: Support FSB 200/266/333/400 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 and FSB_S...
Page 10
AMD K7 Main Board Jumper Setting Detail K7V88: Support FSB 200/266/333/400 (User Guide P.15) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3 Please move the jumper cap to FSB_SEL0 : 1_2 FSB_SEL1 ...
Page 11
AMD K7 Main Board Jumper Setting Detail K7Upgrade-880: Support FSB 200/266/333/400 (User Guide P.16) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3 Please move the jumper cap to FSB_SEL0 : 1_2 F...
Page 12
AMD K7 Main Board Jumper Setting Detail K7Upgrade-600: Support FSB 200/266/333/400 (User Guide P.15) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 a...
Page 13
AMD K7 Main Board Jumper Setting Detail K7VT4A PRO: Support FSB 200/266/333/400 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2 Please move the jumper cap to FSB_SEL0 : 1_2 and ...
Page 14
AMD K7 Main Board Jumper Setting Detail K7S8X: Support FSB 200/266/333 (User Guide P.11) Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 2_3 a...
Page 15
AMD K7 Main Board Jumper Setting Detail K7S8XE: Support FSB 200/266/333/400 (User Guide P.12) Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : ...
Page 16
AMD K7 Main Board Jumper Setting Detail K7S8XE R3.0: Support FSB 200/266/333/400 (User Guide P.12) Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 2_3 and...
Page 17
AMD K7 Main Board Jumper Setting Detail K7S8XE+: Support FSB 200/266/333/400 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 2_3 and the...
Page 18
AMD K7 Main Board Jumper Setting Detail 746FX-M: Support FSB 200/266/333 (User Guide P.13) Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 2_3 and the oth...
Page 19
AMD K7 Main Board Jumper Setting Detail K7S41: Support FSB 200/266/333/400 (User Guide P.14) Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 FSB_SEL2 : 2_3 Please move the jumper cap to FSB_SEL0...
Page 20
AMD K7 Main Board Jumper Setting Detail K7S41GX : Support FSB 200/266/333 (User Guide P.14) Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 Please move the jumper cap to FSB_SEL0 : 2_3 and the ot...
Manual Details
| Brand | AMD |
|---|---|
| Pages | 20 |
| File Size | 1.58 MB |
| Published | May 14, 2026 |
150 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is required before setting a jumper for an AMD K7 main board?
You must set or verify the CPU FSB first. Failure to do so may cause PC instability or prevent rebooting.
How do I set the FSB to 400MHz on a K7S41 board?
Move the jumper cap to FSB_SEL0 : 1_2, FSB_SEL1 : 1_2, and FSB_SEL2 : 1_2.
What is wrong if I set the jumpers incorrectly?
The system may become unstable or fail to reboot entirely.
