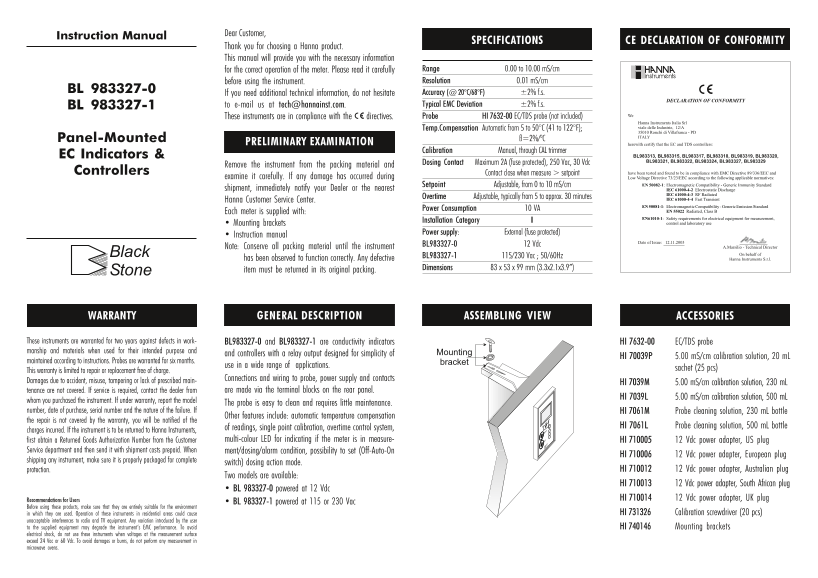

HANNA instruments BL 983327-0, BL 983327-1 User Manual

Dear Customer,

Instruction Manual

SPECIFICATIONS CE DECLARATION OF CONFORMITY

Thank you for choosing a Hanna product. This manual will provide you with the necessary information

for the correct operation of the meter. Please read it carefully Range 0.00 to 10.00 m S/cm before using the instrument. Resolution 0.01 m S/cm

BL 983327-0 Accuracy (@ 20°C/68°F) ±2% f.s.

If you need additional technical information, do not hesitate

BL 983327-1 to e-mail us at [email protected]. Typical EMC Deviation ±2% f.s. These instruments are in compliance with the directives. Probe HI 7632-00 EC/TDS probe (not included) Temp.Compensation Automatic from 5 to 50°C (41 to 122°F);

Panel-Mounted ß=2%/ºC

PRELIMINARY EXAMINATION

Calibration Manual, through CAL trimmer

EC Indicators &

Dosing Contact Maximum 2A (fuse protected), 250 Vac, 30 Vdc

Remove the instrument from the packing material and

Controllers Contact close when measure > setpoint

examine it carefully. If any damage has occurred during

Setpoint Adjustable, from 0 to 10 m S/cm

shipment, immediately notify your Dealer or the nearest

Overtime Adjustable, typically from 5 to approx. 30 minutes

Hanna Customer Service Center.

Power Consumption 10 VA

Each meter is supplied with:

Installation Category II

• Mounting brackets

Power supply: External (fuse protected)

• Instruction manual

BL983327-0 12 Vdc

Note: Conserve all packing material until the instrument

BL983327-1 115/230 Vac ; 50/60Hz

has been observed to function correctly. Any defective

item must be returned in its original packing. Dimensions 83 x 53 x 99 mm (3.3x2.1x3.9”)

WARRANTY GENERAL DESCRIPTION ASSEMBLING VIEW ACCESSORIES

These instruments are warranted for two years against defects in work- BL983327-0 and BL983327-1 are conductivity indicators HI 7632-00 EC/TDS probe manship and materials when used for their intended purpose and

and controllers with a relay output designed for simplicity of

HI 70039P 5.00 m S/cm calibration solution, 20 m L

maintained according to instructions. Probes are warranted for six months.

use in a wide range of applications.

sachet (25 pcs)

This warranty is limited to repair or replacement free of charge.

Connections and wiring to probe, power supply and contacts

Damages due to accident, misuse, tampering or lack of prescribed main- HI 7039M 5.00 m S/cm calibration solution, 230 m L

tenance are not covered. If service is required, contact the dealer from are made via the terminal blocks on the rear panel.

HI 7039L 5.00 m S/cm calibration solution, 500 m L

whom you purchased the instrument. If under warranty, report the model

The probe is easy to clean and requires little maintenance.

number, date of purchase, serial number and the nature of the failure. If HI 7061M Probe cleaning solution, 230 m L bottle

Other features include: automatic temperature compensation

the repair is not covered by the warranty, you will be notified of the

of readings, single point calibration, overtime control system, HI 7061L Probe cleaning solution, 500 m L bottle

charges incurred. If the instrument is to be returned to Hanna Instruments,

first obtain a Returned Goods Authorization Number from the Customer multi-colour LED for indicating if the meter is in measure- HI 710005 12 Vdc power adapter, US plug

Service department and then send it with shipment costs prepaid. When ment/dosing/alarm condition, possibility to set (Off-Auto-On

HI 710006 12 Vdc power adapter, European plug

shipping any instrument, make sure it is properly packaged for complete

switch) dosing action mode.

protection. HI 710012 12 Vdc power adapter, Australian plug

Two models are available:

HI 710013 12 Vdc power adapter, South African plug

• BL 983327-0 powered at 12 Vdc

Recommendations for Users HI 710014 12 Vdc power adapter, UK plug

• BL 983327-1 powered at 115 or 230 Vac

Before using these products, make sure that they are entirely suitable for the environment

in which they are used. Operation of these instruments in residential areas could cause HI 731326 Calibration screwdriver (20 pcs)

unacceptable interferences to radio and TV equipment. Any variation introduced by the user

to the supplied equipment may degrade the instrument’s EMC performance. To avoid HI 740146 Mounting brackets

electrical shock, do not use these instruments when voltages at the measurement surface exceed 24 Vac or 60 Vdc. To avoid damages or burns, do not perform any measurement in microwave ovens.
