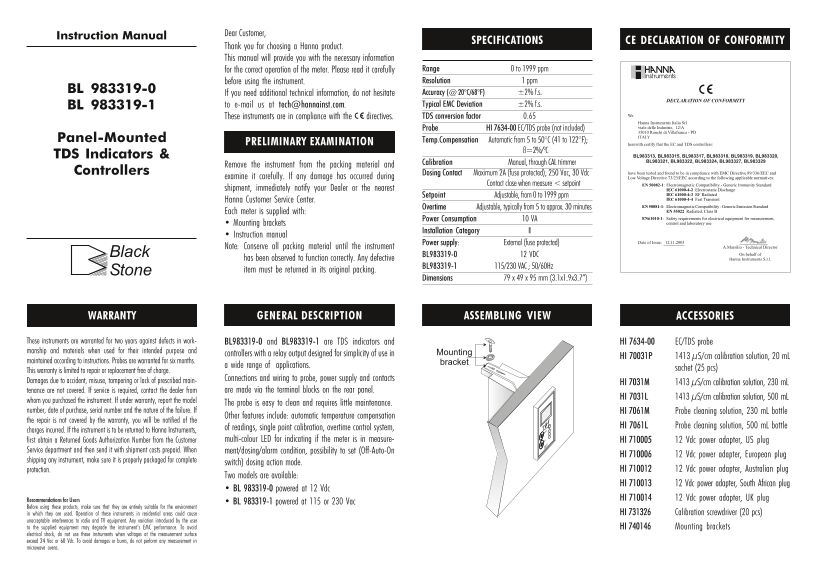

HANNA instruments BL 983319-0, BL 983319-1 User Manual

Dear Customer,

Instruction Manual

SPECIFICATIONS CE DECLARATION OF CONFORMITY

Thank you for choosing a Hanna product. This manual will provide you with the necessary information

for the correct operation of the meter. Please read it carefully Range 0 to 1999 ppm before using the instrument. Resolution 1 ppm

BL 983319-0 Accuracy (@ 20°C/68°F) ±2% f.s.

If you need additional technical information, do not hesitate

BL 983319-1 to e-mail us at [email protected]. Typical EMC Deviation ±2% f.s. These instruments are in compliance with the directives. TDS conversion factor 0.65 Probe HI 7634-00 EC/TDS probe (not included)

Panel-Mounted Temp.Compensation Automatic from 5 to 50°C (41 to 122°F);

PRELIMINARY EXAMINATION

TDS Indicators &

Calibration Manual, through CAL trimmer

Remove the instrument from the packing material and

Controllers Dosing Contact Maximum 2A (fuse protected), 250 Vac, 30 Vdc

examine it carefully. If any damage has occurred during

Contact close when measure < setpoint

shipment, immediately notify your Dealer or the nearest

Setpoint Adjustable, from 0 to 1999 ppm

Hanna Customer Service Center.

Overtime Adjustable, typically from 5 to approx. 30 minutes

Each meter is supplied with:

Power Consumption 10 VA

• Mounting brackets

Installation Category II

• Instruction manual

Power supply: External (fuse protected)

Note: Conserve all packing material until the instrument

BL983319-0 12 VDC

has been observed to function correctly. Any defective

BL983319-1 115/230 VAC ; 50/60Hz

item must be returned in its original packing.

Dimensions 79 x 49 x 95 mm (3.1x1.9x3.7”)

WARRANTY GENERAL DESCRIPTION ASSEMBLING VIEW ACCESSORIES

These instruments are warranted for two years against defects in work- BL983319-0 and BL983319-1 are TDS indicators and HI 7634-00 EC/TDS probe manship and materials when used for their intended purpose and

controllers with a relay output designed for simplicity of use in

HI 70031P 1413 µS/cm calibration solution, 20 m L

maintained according to instructions. Probes are warranted for six months.

a wide range of applications.

sachet (25 pcs)

This warranty is limited to repair or replacement free of charge.

Connections and wiring to probe, power supply and contacts

Damages due to accident, misuse, tampering or lack of prescribed main- HI 7031M 1413 µS/cm calibration solution, 230 m L

tenance are not covered. If service is required, contact the dealer from are made via the terminal blocks on the rear panel.

HI 7031L 1413 µS/cm calibration solution, 500 m L

whom you purchased the instrument. If under warranty, report the model

The probe is easy to clean and requires little maintenance.

number, date of purchase, serial number and the nature of the failure. If HI 7061M Probe cleaning solution, 230 m L bottle

Other features include: automatic temperature compensation

the repair is not covered by the warranty, you will be notified of the

of readings, single point calibration, overtime control system, HI 7061L Probe cleaning solution, 500 m L bottle

charges incurred. If the instrument is to be returned to Hanna Instruments,

first obtain a Returned Goods Authorization Number from the Customer multi-colour LED for indicating if the meter is in measure- HI 710005 12 Vdc power adapter, US plug

Service department and then send it with shipment costs prepaid. When ment/dosing/alarm condition, possibility to set (Off-Auto-On

HI 710006 12 Vdc power adapter, European plug

shipping any instrument, make sure it is properly packaged for complete

switch) dosing action mode.

protection. HI 710012 12 Vdc power adapter, Australian plug

Two models are available:

HI 710013 12 Vdc power adapter, South African plug

• BL 983319-0 powered at 12 Vdc

Recommendations for Users HI 710014 12 Vdc power adapter, UK plug

• BL 983319-1 powered at 115 or 230 Vac

Before using these products, make sure that they are entirely suitable for the environment

in which they are used. Operation of these instruments in residential areas could cause HI 731326 Calibration screwdriver (20 pcs)

unacceptable interferences to radio and TV equipment. Any variation introduced by the user

to the supplied equipment may degrade the instrument’s EMC performance. To avoid HI 740146 Mounting brackets

electrical shock, do not use these instruments when voltages at the measurement surface exceed 24 Vac or 60 Vdc. To avoid damages or burns, do not perform any measurement in microwave ovens.
