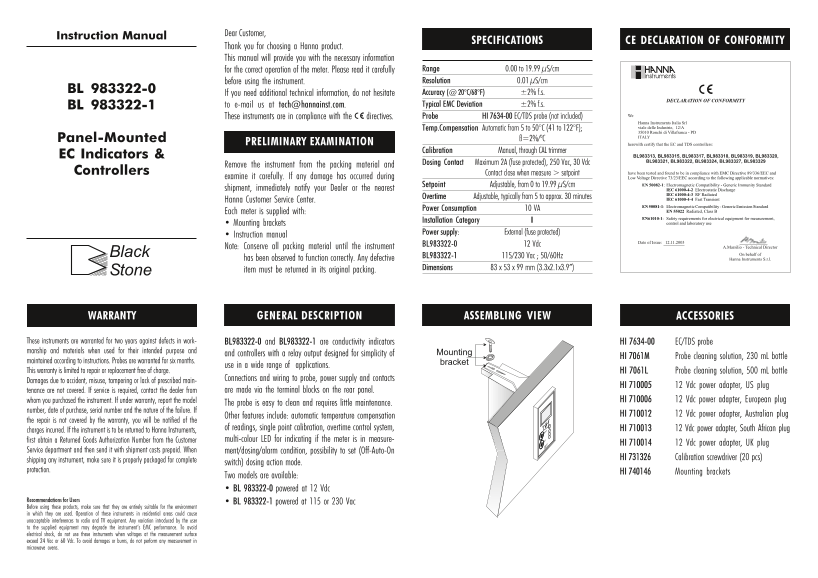

HANNA instruments BL 983322-0, BL 983322-1 User Manual

Dear Customer,

Instruction Manual

SPECIFICATIONS CE DECLARATION OF CONFORMITY

Thank you for choosing a Hanna product. This manual will provide you with the necessary information

for the correct operation of the meter. Please read it carefully Range 0.00 to 19.99 µS/cm before using the instrument. Resolution 0.01 µS/cm

BL 983322-0 Accuracy (@ 20°C/68°F) ±2% f.s.

If you need additional technical information, do not hesitate

BL 983322-1 to e-mail us at [email protected]. Typical EMC Deviation ±2% f.s. These instruments are in compliance with the directives. Probe HI 7634-00 EC/TDS probe (not included) Temp.Compensation Automatic from 5 to 50°C (41 to 122°F);

Panel-Mounted ß=2%/ºC

PRELIMINARY EXAMINATION

Calibration Manual, through CAL trimmer

EC Indicators &

Dosing Contact Maximum 2A (fuse protected), 250 Vac, 30 Vdc

Remove the instrument from the packing material and

Controllers Contact close when measure > setpoint

examine it carefully. If any damage has occurred during

Setpoint Adjustable, from 0 to 19.99 µS/cm

shipment, immediately notify your Dealer or the nearest

Overtime Adjustable, typically from 5 to approx. 30 minutes

Hanna Customer Service Center.

Power Consumption 10 VA

Each meter is supplied with:

Installation Category II

• Mounting brackets

Power supply: External (fuse protected)

• Instruction manual

BL983322-0 12 Vdc

Note: Conserve all packing material until the instrument

BL983322-1 115/230 Vac ; 50/60Hz

has been observed to function correctly. Any defective

item must be returned in its original packing. Dimensions 83 x 53 x 99 mm (3.3x2.1x3.9”)

WARRANTY GENERAL DESCRIPTION ASSEMBLING VIEW ACCESSORIES

These instruments are warranted for two years against defects in work- BL983322-0 and BL983322-1 are conductivity indicators HI 7634-00 EC/TDS probe manship and materials when used for their intended purpose and

and controllers with a relay output designed for simplicity of

HI 7061M Probe cleaning solution, 230 m L bottle

maintained according to instructions. Probes are warranted for six months.

use in a wide range of applications.

This warranty is limited to repair or replacement free of charge. HI 7061L Probe cleaning solution, 500 m L bottle

Connections and wiring to probe, power supply and contacts

Damages due to accident, misuse, tampering or lack of prescribed main-

HI 710005 12 Vdc power adapter, US plug

tenance are not covered. If service is required, contact the dealer from are made via the terminal blocks on the rear panel.

whom you purchased the instrument. If under warranty, report the model HI 710006 12 Vdc power adapter, European plug

The probe is easy to clean and requires little maintenance.

number, date of purchase, serial number and the nature of the failure. If

Other features include: automatic temperature compensation HI 710012 12 Vdc power adapter, Australian plug

the repair is not covered by the warranty, you will be notified of the

of readings, single point calibration, overtime control system, HI 710013 12 Vdc power adapter, South African plug

charges incurred. If the instrument is to be returned to Hanna Instruments,

first obtain a Returned Goods Authorization Number from the Customer multi-colour LED for indicating if the meter is in measure-

HI 710014 12 Vdc power adapter, UK plug

Service department and then send it with shipment costs prepaid. When ment/dosing/alarm condition, possibility to set (Off-Auto-On

HI 731326 Calibration screwdriver (20 pcs)

shipping any instrument, make sure it is properly packaged for complete

switch) dosing action mode.

protection. HI 740146 Mounting brackets

Two models are available: • BL 983322-0 powered at 12 Vdc

Recommendations for Users • BL 983322-1 powered at 115 or 230 Vac Before using these products, make sure that they are entirely suitable for the environment in which they are used. Operation of these instruments in residential areas could cause unacceptable interferences to radio and TV equipment. Any variation introduced by the user to the supplied equipment may degrade the instrument’s EMC performance. To avoid electrical shock, do not use these instruments when voltages at the measurement surface exceed 24 Vac or 60 Vdc. To avoid damages or burns, do not perform any measurement in microwave ovens.
