Gigabyte Motherboard H310M-S2 (rev.1.0) User Manual in English (version 1001)
Summary
The essential guide for setting up and maintaining your GIGABYTE H310M S2 Motherboard. This manual provides comprehensive instructions covering every aspect of hardware installation, including CPU mounting, RAM setup, and connecting peripheral cards. Furthermore, it details step-by-step guidance through the BIOS Setup—explaining system menus, power controls, and chipset configurations. It is designed for PC builders, DIY enthusiasts, or seasoned users looking to ensure correct initial configuration and optimal performance when utilizing this reliable motherboard.
Page 1 Text Content

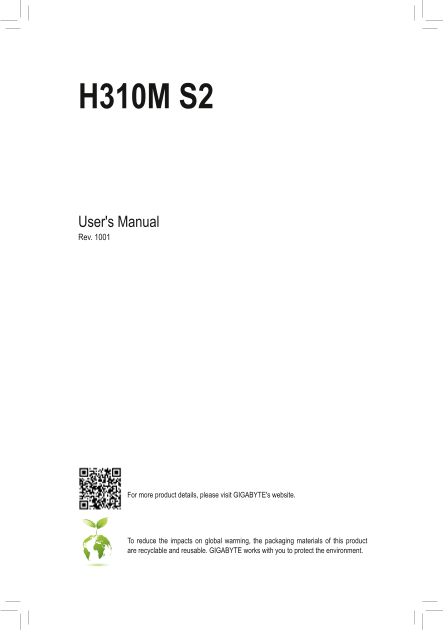

User's Manual Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard H310M-S2 (rev.1.0) User Manual in English (version 1001)
Page 1
User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYT...
Page 2
Motherboard Motherboard H310M S2 Feb. 27, 2018 Feb. 27, 2018 Copyright © 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to thei...
Page 3
Table of Contents H310M S2 Motherboard Layout ......................................................................................4 Chapter 1 Hardware Installation .....................................
Page 4
H310M S2 Motherboard Layout CPU_FAN KB_MS ATX_12V SYS_FAN LGA1151 R_USB R_USB30 SATA3 DD R4 _1 USB_LAN Realtek® DD R4 _2 AUDIO Gb E LAN F_ US B3 PCIEX16 PCIEX1_1 i TE® Super I/O Intel® H310 PCIEX1_2 C...
Page 5
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 6
1-2 Product Specifications CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the...
Page 7
Internal 1 x 24-pin ATX main power connector Connectors 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audi...
Page 8
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificatio...
Page 9
1-3 Installing the CPU Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) A...
Page 10
Dual Channel Memory Configuration This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory is installed, the BIOS will automatically detect the specification...
Page 11
Line In/Rear Speaker Out (Blue) The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out/Front Speaker Out (Green) The line out jack. Use this audio j...
Page 12
1-7 Internal Connectors 1) ATX_12V 7) F_AUDIO 2) ATX 8) F_USB30 3) CPU_FAN 9) F_USB 4) SYS_FAN 10) TPM 5) SATA3 0/1/2/3 11) CLR_CMOS 6) F_PANEL 12) BAT Read the following guidelines before connecting ...
Page 13
DEBUG PORT 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the mo...
Page 14
DEBUG PORT DE BU PO RT DE BU DE BU PO RT PO RT DE BU DE BU PO RT PO RT 3/4) CPU_FAN/SYS_FAN (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion ...
Page 15
6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 16
F_USB30 8) F_USB30 (USB 3.1 Gen 1 Header) The header conforms to USB 3.1 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides ...
Page 17
F_USB30 F_ U F_ F_ F_USB3 F 10) TPM (Trusted Platform Module Header) You may connect a TPM (Trusted Platform Module) to this header. _S Pin No. Definition Pin No. Definition LAD0 LAD3 VCC3 GND LAD1 L...
Page 18
Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 19
2-2 The Main Menu System Time Setup Menus Hardware Information Configuration Items Current Settings Quick Access Bar allows you to enter Easy Mode, select BIOS default language, configure fan settings...
Page 20
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to...
Page 21
AVX Offset (Note) AVX offset is the negative offset of AVX ratio. Uncore Ratio Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. Uncore Frequency Display...
Page 22
C3 State Support (Note) Allows you to determine whether to let the CPU enter C3 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to ...
Page 23
Extreme Memory Profile (X.M.P.) (Note) Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance when enabled. Disabled Disables this function. (Default) Profile1 Uses...
Page 24
Memory Multiplier Tweaker Provides different levels of memory auto-tuning. (Default: Auto) Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneo...
Page 25
Miscellaneous Settings Max Link Speed Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each sl...
Page 26
2-4 System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. Access Level Displa...
Page 27
2-5 BIOS Bootup Num Lock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) Security Option Specifies whether a password is required every ti...
Page 28
SATA Support Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. (Default) All Sata Devices All SATA devices are functional in th...
Page 29
Other PCI Device Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Do not launch Disables...
Page 30
2-6 Peripherals Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the...
Page 31
Intel(R) Bios Guard Technology Enables or disables the Intel® BIOS Guard feature, which protects the BIOS from malicious attacks. USB Configuration Legacy USB Support Allows USB keyboard/mouse to be u...
Page 32
SATA And RST Configuration SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) SATA Mode Selection Specifies the operating mode of the integrated SATA controller...
Page 33
2-7 Chipset VT-d (Note) Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Enabled) Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) D...
Page 34
2-8 Power Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) PEG ASPM Allows you to configure the ASPM mode for the device connected t...
Page 35
Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To ...
Page 36
2-9 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 37
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. After installing the operating system, insert the motherboard driver disk into your optical d...
Page 38
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 39
FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea...
Page 40
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
Manual Details
| Brand | GIGABYTE |
|---|---|
| Pages | 40 |
| File Size | 10.91 MB |
| Published | May 28, 2026 |
104 views
Enter the captcha to get the download link:
Frequently Asked Questions
What precautions must I take before installing this motherboard?
Be careful of Electrostatic Discharge (ESD), and ensure equipment is used according to operating instructions.
How can I identify my specific motherboard revision number?
The revision number will be located on the board and formatted like: "REV: X.X."
Where should I go for drivers or technical support?
You can visit www.gigabyte.com, or use eSupport at http://esupport.gigabyte.com.
How many SATA3 ports are available on the H310M S2 board?
The manual indicates that there are three SATA3 ports available.
