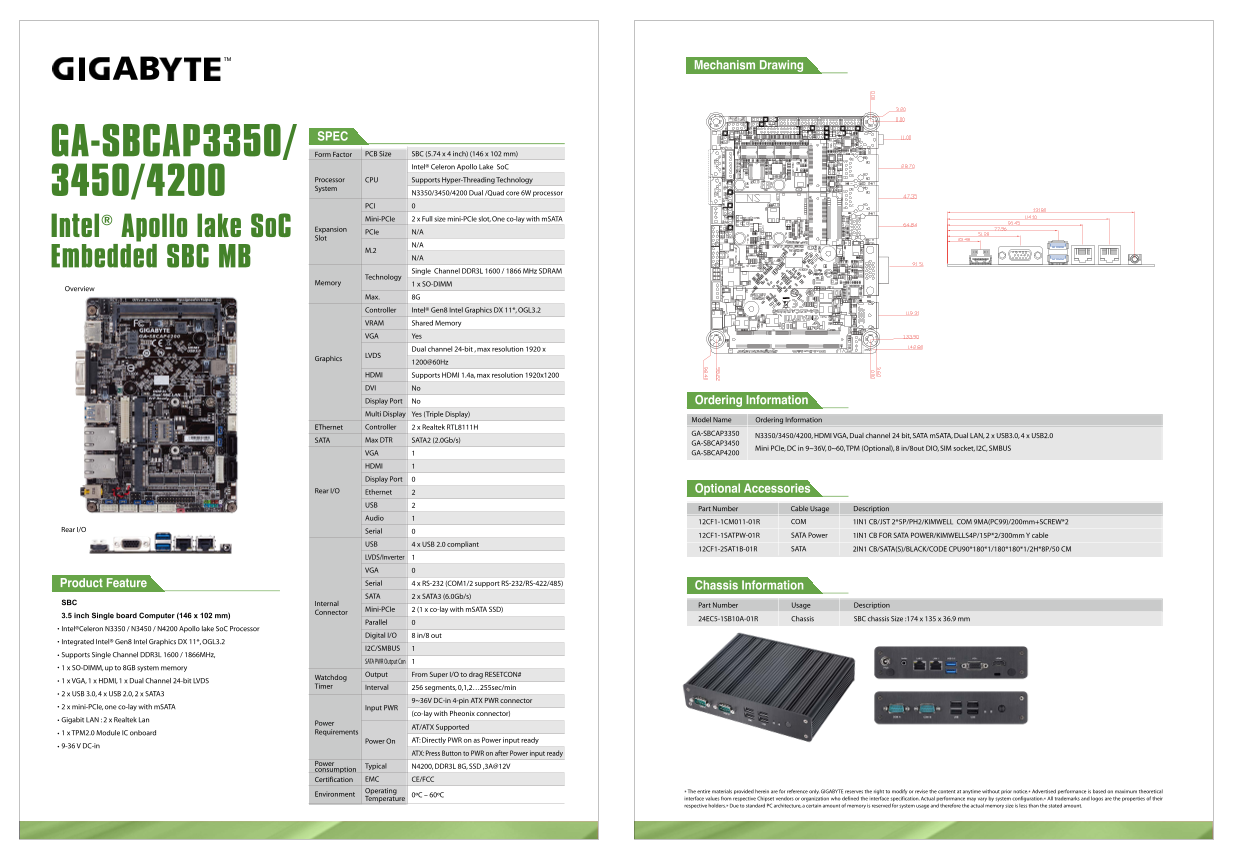

Gigabyte Motherboard GA-SBCAP3350 (rev.2.0) Data Sheet
Summary
This versatile Single Board Computer (SBC) is engineered for advanced embedded systems and industrial control applications. Featuring Intel Celeron Apollo Lake processors, up to 8GB DDR3L RAM, and robust multimedia output (VGA/HDMI), this unit offers exceptional performance in a compact form factor. The comprehensive manual details its full connectivity matrix, including dual Gigabit LAN, multiple USB ports, SATA storage options, and expansion slots. It is ideal for system integrators, embedded developers, and technical users requiring reliable, high-connectivity computing power.
Page 1 Text Content
Mechanism Drawing
GA-SBCAP3350/ Form Factor PCB Size SBC (5.74 x 4 inch) (146 x 102 mm)
Intel® Celeron Apollo Lake So C
Processor CPU Supports Hyper-Threading Technology 3450/4200 System
N3350/3450/4200 Dual /Quad core 6W processor
Mini-PCIe 2 x Full size mini-PCIe slot, One co-lay with m SATA
Intel® Apollo lake So C Expansion
PCIe N/A
Embedded SBC MB
Single Channel DDR3L 1600 / 1866 MHz SDRAM
Technology
Memory 1 x SO-DIMM
Overview
Max. 8G Controller Intel® Gen8 Intel Graphics DX 11*, OGL3.2 VRAM Shared Memory VGA Yes
Dual channel 24-bit , max resolution 1920 x
Graphics
1200@60Hz
HDMI Supports HDMI 1.4a, max resolution 1920x1200 DVI No Display Port No Ordering Information Multi Display Yes (Triple Display)
Model Name Ordering Information
EThernet Controller 2 x Realtek RTL8111H
GA-SBCAP3350
N3350/3450/4200, HDMI VGA, Dual channel 24 bit, SATA m SATA, Dual LAN, 2 x USB3.0, 4 x USB2.0
SATA Max DTR SATA2 (2.0Gb/s)
GA-SBCAP3450
Mini PCIe, DC in 9~36V, 0~60, TPM (Optional), 8 in/8out DIO, SIM socket, I2C, SMBUS
VGA GA-SBCAP4200
HDMI Display Port
Rear I/O Ethernet Optional Accessories
Part Number Cable Usage Description
Audio
12CF1-1CM011-01R COM 1IN1 CB/JST 2*5P/PH2/KIMWELL COM 9MA(PC99)/200mm+SCREW*2
Rear I/O Serial
12CF1-1SATPW-01R SATA Power 1IN1 CB FOR SATA POWER/KIMWELLS4P/15P*2/300mm Y cable
USB 4 x USB 2.0 compliant
12CF1-2SAT1B-01R SATA 2IN1 CB/SATA(S)/BLACK/CODE CPU90*180*1/180*180*1/2H*8P/50 CM
LVDS/Inverter VGA Product Feature Serial 4 x RS-232 (COM1/2 support RS-232/RS-422/485)
Chassis Information
SATA 2 x SATA3 (6.0Gb/s)
SBC Internal
Part Number Usage Description
Mini-PCIe 2 (1 x co-lay with m SATA SSD)
Connector
3.5 inch Single board Computer (146 x 102 mm)
24EC5-1SB10A-01R Chassis SBC chassis Size :174 x 135 x 36.9 mm
Parallel
Intel®Celeron N3350 / N3450 / N4200 Apollo lake So C Processor
Digital I/O 8 in/8 out
Integrated Intel® Gen8 Intel Graphics DX 11*, OGL3.2
I2C/SMBUS
Supports Single Channel DDR3L 1600 / 1866MHz,
SATA PWR Output Con
1 x SO-DIMM, up to 8GB system memory
Output From Super I/O to drag RESETCON#
Watchdog
1 x VGA, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
Timer Interval 256 segments, 0,1,2…255sec/min
2 x USB 3.0, 4 x USB 2.0, 2 x SATA3
9~36V DC-in 4-pin ATX PWR connector
2 x mini-PCIe, one co-lay with m SATA Input PWR
(co-lay with Pheonix connector)
Gigabit LAN : 2 x Realtek Lan
Power
AT/ATX Supported
1 x TPM2.0 Module IC onboard Requirements
Power On AT: Directly PWR on as Power input ready
9-36 V DC-in
ATX: Press Button to PWR on after Power input ready
Power
Typical N4200, DDR3L 8G, SSD ,3A@12V
consumption
Certification EMC CE/FCC Operating * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical
Environment 0ºC – 60ºC
Temperature interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Page Summary Contents For Gigabyte Motherboard GA-SBCAP3350 (rev.2.0) Data Sheet
Manual Details
| Brand | GIGABYTE |
|---|---|
| Pages | 1 |
| File Size | 1.31 MB |
| Published | May 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What memory type and maximum capacity does the SBC support?
It supports Single Channel DDR3L 1600 / 1866 MHz SDRAM technology, up to a maximum of 8GB.
How many wired network connections are available?
The system includes two Realtek RTL8111H controllers for Gigabit LAN capability.
Does the device support connection to multiple monitors?
Yes, it supports Multi Display (Triple Display) via VGA and HDMI outputs.
How many high-speed storage connections are available?
There are 2 x SATA3 ports, offering a fast wired storage connection of up to 6.0Gb/s.
