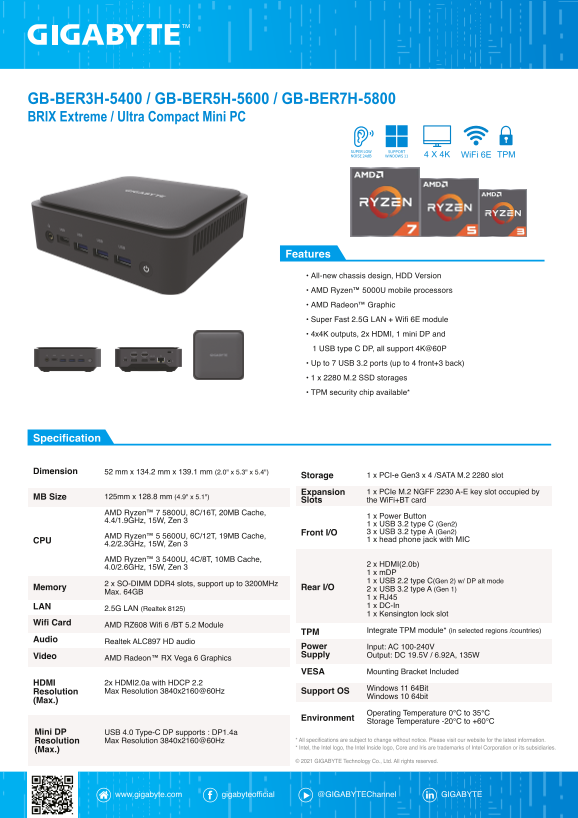

Page 1 Text Content
GB-BER3H-5400 / GB-BER5H-5600 / GB-BER7H-5800 BRIX Extreme / Ultra Compact Mini PC
Features
• All-new chassis design, HDD Version • AMD Ryzen™ 5000U mobile processors • AMD Radeon™ Graphic • Super Fast 2.5G LAN + Wifi 6E module • 4x4K outputs, 2x HDMI, 1 mini DP and 1 USB type C DP, all support 4K@60P • Up to 7 USB 3.2 ports (up to 4 front+3 back) • 1 x 2280 M.2 SSD storages • TPM security chip available*
Specification
Dimension 52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
Storage 1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot
Expansion 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by
MB Size 125mm x 128.8 mm (4.9" x 5.1")
Slots the Wi Fi+BT card
AMD Ryzen™ 7 5800U, 8C/16T, 20MB Cache,
1 x Power Button
4.4/1.9GHz, 15W, Zen 3
1 x USB 3.2 type C (Gen2) Front I/O 3 x USB 3.2 type A (Gen2)
AMD Ryzen™ 5 5600U, 6C/12T, 19MB Cache,
CPU 1 x head phone jack with MIC
4.2/2.3GHz, 15W, Zen 3
AMD Ryzen™ 3 5400U, 4C/8T, 10MB Cache,
2 x HDMI(2.0b)
4.0/2.6GHz, 15W, Zen 3
1 x m DP 1 x USB 2.2 type C(Gen 2) w/ DP alt mode
2 x SO-DIMM DDR4 slots, support up to 3200MHz
Memory Rear I/O 2 x USB 3.2 type A (Gen 1)
Max. 64GB
1 x RJ45 LAN 1 x DC-In
2.5G LAN (Realtek 8125)
1 x Kensington lock slot
Wifi Card
AMD RZ608 Wifi 6 /BT 5.2 Module
TPM Integrate TPM module* (in selected regions /countries)
Audio Realtek ALC897 HD audio
Power Input: AC 100-240V Video Supply Output: DC 19.5V / 6.92A, 135W
AMD Radeon™ RX Vega 6 Graphics
VESA Mounting Bracket Included
HDMI 2x HDMI2.0a with HDCP 2.2
Windows 11 64Bit
Resolution Max Resolution 3840x2160@60Hz Support OS
Windows 10 64bit
(Max.)
Operating Temperature 0°C to 35°C
Environment
Storage Temperature -20°C to +60°C
Mini DP USB 4.0 Type-C DP supports : DP1.4a
Resolution Max Resolution 3840x2160@60Hz * All specifications are subject to change without notice. Please visit our website for the latest information. * Intel, the Intel logo, the Intel Inside logo, Core and Iris are trademarks of Intel Corporation or its subsidiaries.
(Max.)
© 2021 GIGABYTE Technology Co., Ltd. All rights reserved.
