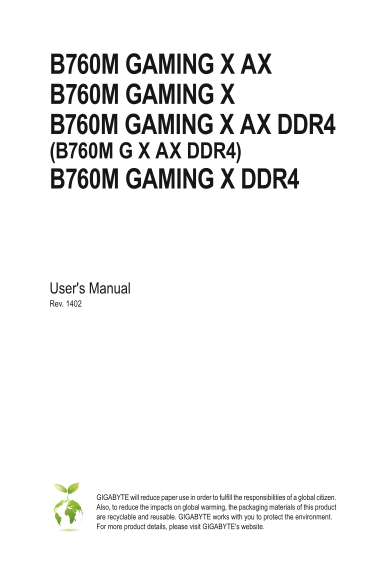

B760M GAMING X AX B760M GAMING X B760M GAMING X AX DDR4 (B760M G X AX DDR4) B760M GAMING X DDR4
User's Manual Rev. 1402
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment. For more product details, please visit GIGABYTE's website.
Page Summary Contents For GIGABYTE B760M GAMING X AX (Rev.1.x) User Manual
Page 1
B760M GAMING X AX B760M GAMING X B760M GAMING X AX DDR4 (B760M G X AX DDR4) B760M GAMING X DDR4 User's Manual Rev. 1402 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a glo...
Page 2
Copyright © 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout D_LED2 M2 A_ CP ATX_12V_2X4 R_USB20_1 CPU_FAN LED_C2 SYS_FAN1 M2_WIFIj LGA1700 USB 2.0 Hub R_USB20_2 DP_HDMI20 M2 P_ SB U32_USB20 B7 GA MI NG B7 G...
Page 5
D_LED2 M2 A_ CP ATX_12V_2X4 R_USB20_1 CPU_FAN LED_C2 SYS_FAN1 M2_WIFIl LGA1700 USB 2.0 Hub R_USB20_2 DP_HDMI20 M2 P_ SB U32_USB20 B7 GA MI NG DD R4 B7 GA MI NG DR U32_LAN DD R4 _A DD R4 _A AUDIO DD R4...
Page 6
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
2-2 Product Specifications CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) ...
Page 8
Wireless Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) Communication - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Modulej - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standar...
Page 9
USB Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal U...
Page 10
Hardware Voltage detection Monitor Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported ...
Page 11
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 12
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab jGently press the CPU socket lever handle down and away from the socket. kComple...
Page 13
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 14
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 15
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 16
2-6 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. SMA Antenna Connectors (2T2R)jl Use this connector to connect an antenna....
Page 17
RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs. Activity LEDSpeed LED Speed LED: Activit...
Page 18
2-7 Internal Connectors 1) ATX_12V_2X4 12) F_U32 2) ATX 13) F_USB1/F_USB2 3) CPU_FAN 14) SPI_TPM 4) SYS_FAN1/2/3 15) THB_C1/THB_C2 5) LED_C1/LED_C2 16) COM 6) D_LED1/D_LED2 17) SPDIF_O 7) SATA3 4/5/6/...
Page 19
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 20
DEBUG PORT DEBUG PORT DE BU PO RT 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan ca...
Page 21
F_USB30 F_ U F_ F_ F_ US B3 F_ F_ F_ F_USB3 F S F F_ US B3 6) D_LED1/D_LED2 (Addressable LED Strip Headers) The headers can be used to connect a standard 5050 addressable LED strip, with maximum po...
Page 22
F_USB30 F_ U F_ F_ F_USB30F_ U F_ F_ F_USB3 F S 3 B S S S _SB _ _ 3 8) M2A_CPU/M2P_SB (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2 PCIe SS...
Page 23
9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 24
F_USB30 F_ U F_ F_ F_USB3 F 10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this head...
Page 25
F_USB30 F_ U F_ F_ 12) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that...
Page 26
F_ US B3 F_ F_ F_ F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_ US B3 F_USB3 F B_ F_USB3 F 14) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header...
Page 27
F_USB30F_ U F_ F_ S 3 B S S S _SB F_USB3 F 16) COM (Serial Port Header) _ _B S _ The COM header can provide one serial port via an optional COM port cable. For purchasing ...
Page 28
18) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batt...
Page 29
20) RST (Reset Jumper) The reset jumper can connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal...
Page 30
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 31
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 32
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. If you want to install an operati...
Page 33
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 34
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Cap...
Page 35
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 36
European Union (EU) CE Declaration of Conformity CE Declaración de conformidad This device complies with the following directives: Electromagnetic Este producto que llevan la marca CE cumplen con las ...
Page 37
European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipme...
Page 38
Approvals for wireless module AX211NGW: Approvals for wireless module AX210NGW: Approvals for wireless module RTL8852CE:
Page 39
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : h...
