GIGABYTE Z690 GAMING X DDR4 V2 (Rev.1.0) User Manual
Summary
Unlock the full potential of your PC with detailed setup instructions for the Z690 GAMING X DDR4 V2 motherboard. This comprehensive guide is essential for advanced builders and system enthusiasts who are installing or upgrading a high-performance computer. The manual provides step-by-step coverage, guiding you through proper hardware installation (CPU, memory, expansion cards), crucial BIOS configuration techniques, and the precise steps needed to install your operating system and drivers effectively. Build with confidence and optimize every component for peak performance.
Page 1 Text Content

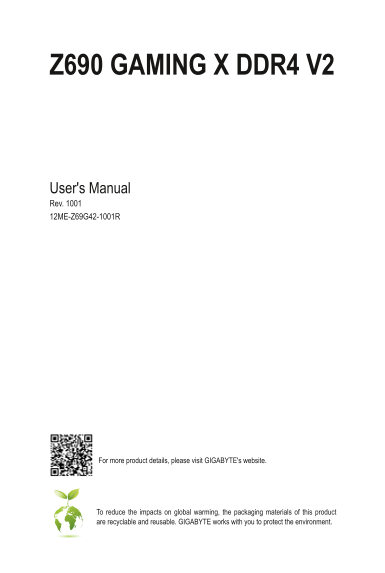

Z690 GAMING X DDR4 V2
User's Manual Rev. 1001 12ME-Z69G42-1001R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For GIGABYTE Z690 GAMING X DDR4 V2 (Rev.1.0) User Manual
Page 1
Z690 GAMING X DDR4 V2 User's Manual Rev. 1001 12ME-Z69G42-1001R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this prod...
Page 2
Copyright © 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout CPU_OPT LED_C2ATX_12V_2X4 D_LED2 USB20 CPU_FAN ATX_12V_2X2 USB 2.0 Hub ATX LGA1700 DP_HDMI20 M2 M_ SB M2 Q_ SB M2 P_ SB M2 A_ CP Z6 AM IN DD R4 U3...
Page 5
1-2 Box Contents Z690 GAMING X DDR4 V2 motherboard User's Manual Two SATA cables M.2 screws * The box contents above are for reference only and the actual items shall depend on the product package you...
Page 6
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 7
2-2 Product Specifications CPU LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for...
Page 8
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/...
Page 9
Back Panel 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support Connectors 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x Display Port 1 x RJ-45 por...
Page 10
Form Factor ATX Form Factor; 30.5cm x 24.4cm * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Please visit GIGABYTE...
Page 11
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 12
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab jGently press the CPU socket lever handle down and away from the socket. kComple...
Page 13
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 14
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 15
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 16
2-6 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. USB 3.2 Gen 2 Type-A Port (Red) The USB 3.2 Gen 2 port supports the USB 3...
Page 17
RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs. Activity LEDSpeed LED Speed LED: Activit...
Page 18
2-7 Internal Connectors 1) ATX_12V_2X2/ATX_12V_2X4 12) F_AUDIO 2) ATX 13) F_U32C 3) CPU_FAN 14) F_U32 4) SYS_FAN1/2/3 15) F_USB1/F_USB2 5) SYS_FAN4_PUMP 16) SPI_TPM 6) CPU_OPT 17) THB_C1/THB_C2 7) SAT...
Page 19
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X2/ATX_12V_2X4/ATX (2x2, 2x4, 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable pow...
Page 20
DEBUG PORT DEBUG PORT DEBUG PORT 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cab...
Page 21
DEBUG PORT 6) CPU_OPT (Water Cooling CPU Fan Header) The fan header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a foolproof insertion design. When connecting a fan ca...
Page 22
F_USB30 F_ U F_ F_ F_ US B3 F_ F_ F_ F_USB3 F S F F_ US B3 8) D_LED1/D_LED2 (Addressable LED Strip Headers) The headers can be used to connect a standard 5050 addressable LED strip, with maximum po...
Page 23
F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB3 F _S F_USB3 F _SB S 3 B S S S F_USB3 F _ F _SB F_USB3 F 10) M2A_CPU/M2P_SB/M2Q_SB/M2M_SB (M.2 Sock...
Page 24
Installation Notices for the M.2 and SATA Connectors: The availability of the SATA connectors may be affected by the type of device installed in the M.2 sockets. The M2M_SB connector shares bandwidth ...
Page 25
DEBUG PORT 11) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the ...
Page 26
F_USB30 F_ U F_ F_ F_USB3 F 12) F_AUDIO (Front Panel Audio Header) B_ The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this h...
Page 27
F_USB30 F_ U F_ F_ 14) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that...
Page 28
F_USB30F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB30 _SB F_USB3 F F_USB3 F 16) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. _SB _3 ...
Page 29
18) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 30
20) RST_SW/RST (Reset Button/Reset Jumper) The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment when they want to change hardware components or conduc...
Page 31
F_USB30 F_ U F_ F_ F_USB3 F 22) CPU/DRAM/VGA/BOOT (Status LEDs) The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly after system power-on. If the CP...
Page 32
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 33
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 34
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. If you want to install an operati...
Page 35
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 36
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Cap...
Page 37
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 40
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : h...
Manual Details
| Brand | GIGABYTE |
|---|---|
| Pages | 40 |
| File Size | 22.15 MB |
| Published | June 06, 2026 |
61 views
