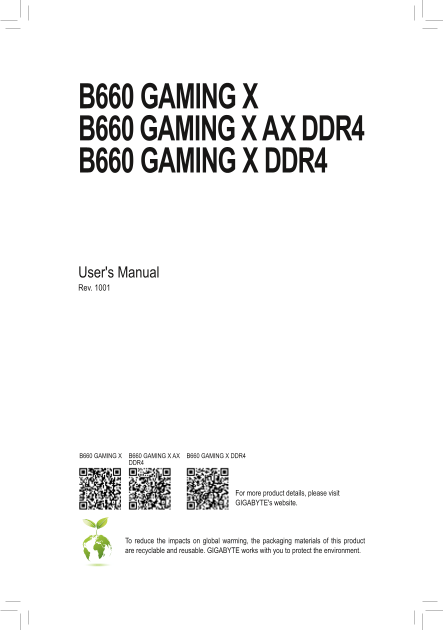

B660 GAMING X B660 GAMING X AX DDR4 B660 GAMING X DDR4
User's Manual Rev. 1001
B660 GAMING X AX B660 GAMING X DDR4B660 GAMING X DDR4
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For Gigabyte Motherboard B660 GAMING X AX DDR4 (rev.1.0) User Manual - English (version 1001)
Page 1
B660 GAMING X B660 GAMING X AX DDR4 B660 GAMING X DDR4 User's Manual Rev. 1001 B660 GAMING X AX B660 GAMING X DDR4B660 GAMING X DDR4 For more product details, please visit GIGABYTE's website. To reduc...
Page 2
Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout M2 A_ CP CPU_OPT LED_C2 R_USB20_1 ATX_12V_2X4 D_LED2 CPU_FAN R_USB20_2 USB 2.0 Hub LGA1700 DP_ HDMI20 M2 M_ SB6080110 M2 P_ SB6080110 U32G2_LAN B6...
Page 5
M2 A_ CP CPU_OPT LED_C2 R_USB20_1 ATX_12V_2X4 D_LED2 CPU_FAN M2_WIFI k R_USB20_2 USB 2.0 Hub LGA1700 DP_ HDMI20 M2 M_ SB6080110 M2 P_ SB6080110 U32G2_LAN B6 AM IN (A X) DR DD R4 _A AUDIO DD R4 _A DD R...
Page 6
1-2 Box Contents B660 GAMING X, B660 GAMING X AX DDR4 or B660 GAMING X DDR4 motherboard User's Manual Two SATA cables M.2 screws One antenna k k Only for B660 GAMING X AX DDR4. * The box contents abov...
Page 7
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 8
2-2 Product Specifications CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache vari...
Page 9
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/...
Page 10
Back Panel 1 x USB 3.2 Gen 2 Type-A port (red) Connectors 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R)k 1 x Display Port 1 x HDMI 2.0 port 1 x RJ-45 port 6 x audio j...
Page 11
Bundled Norton® Internet Security (OEM version) Software LAN bandwidth management software Operating Support for Windows 11 64-bit System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30....
Page 12
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 13
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab jGently press the CPU socket lever handle down and away from the socket. kComple...
Page 14
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 15
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 16
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 17
2-6 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. SMA Antenna Connectors (2T2R)k Use this connector to connect an antenna. ...
Page 18
USB 2.0/1.1 Port (Q-Flash Plus Port) The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. Before using Q-Flash Plus (Note), make sure to insert the USB flash drive into ...
Page 19
2-7 Internal Connectors 1) ATX_12V_2X4 13) SPDIF_O 2) ATX 14) F_U32C 3) CPU_FAN 15) F_U32 4) SYS_FAN1/2/3 16) F_USB1/F_USB2 5) SYS_FAN4_PUMP 17) SPI_TPM 6) CPU_OPT 18) COM 7) D_LED1/D_LED2 19) CLR_CMO...
Page 20
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 21
DEBUG PORT DEBUG PORT DEBUG PORT DEBUG PORT 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connectin...
Page 22
F_USB30 F_ U F_ F_ F_ US B3 F_ F_ F_ DEBUG B S S PORT F_USB3 F F_ US B3 6) CPU_OPT (Water Cooling CPU Fan Header) The fan header is 4-pin and possesses a foolproof insertion design. Most fan headers...
Page 23
8) LED_C1/LED_C2 (RGB LED Strip Headers) DEBUG The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power PORT rating of 2A (12V) and maximum length of 2m. DEBUG ...
Page 24
F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB30F_ U F_ F_ F_USB3 F F_USB3 F B_ _S 10) M2A_CPU/M2P_SB/M2M_SB (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2 PCI...
Page 25
DEBUG PORT 11) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the ...
Page 26
F_USB30 F_ U F_ F_ 12) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make s...
Page 27
F_USB30 F_ U F_ F_ F_USB3 F 14) F_U32C (USB Type-C® Header with USB 3.2 Gen 1 Support) The header conforms to USB 3.2 Gen 1 specification and can provide one USB port. F_USB3 F_USB30 3 B_ Pin No. Def...
Page 28
F_USB30 F_ U F_ F_ 16) F_USB1/F_USB2 (USB 2.0/1.1 Headers) _S The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an DEBUG PORT optional USB bracket. For pu...
Page 29
18) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition ...
Page 30
20) RST_SW/RST (Reset Button/Reset Jumper) The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment when they want to change hardware components or conduc...
Page 31
F_USB30 F_ U F_ F_ F_USB3 F 22) QFLASH_PLUS (Q-Flash Plus Button) _ F Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest _S BIOS on a USB thumb d...
Page 32
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 33
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 34
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. If you want to install an operati...
Page 35
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 36
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Cap...
Page 37
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 38
Under Industry Canada regulations, this radio transmitter may only operate European Union (EU) CE-Konformitätserklärung using an antenna of a type and maximum (or lesser) gain approved for Dieses Prod...
Page 39
European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipme...
Page 40
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
