GIGABYTE AMD A75 Chipset OC Guide
Summary
Maximize the potential of your AMD Llano platform with this expert overclocking guide for the GIGABYTE A75 chipset. This comprehensive manual helps users unlock peak performance across CPU, GPU, and RAM by analyzing critical overclocker parameters. Ideal for budget-conscious builders looking to transform an entry-level PC into a high-performing machine suitable for gaming, media streaming, or demanding office work. Learn advanced tuning techniques and benchmark testing strategies to optimize stability and boost overall system efficiency.
Page 1 Text Content

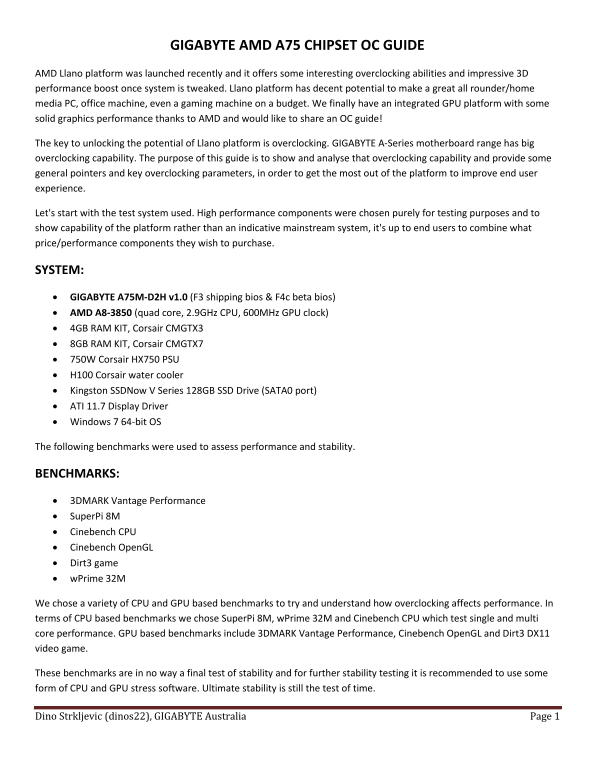

GIGABYTE AMD A75 CHIPSET OC GUIDE
AMD Llano platform was launched recently and it offers some interesting overclocking abilities and impressive 3D performance boost once system is tweaked. Llano platform has decent potential to make a great all rounder/home media PC, office machine, even a gaming machine on a budget. We finally have an integrated GPU platform with some solid graphics performance thanks to AMD and would like to share an OC guide!
The key to unlocking the potential of Llano platform is overclocking. GIGABYTE A-Series motherboard range has big overclocking capability. The purpose of this guide is to show and analyse that overclocking capability and provide some general pointers and key overclocking parameters, in order to get the most out of the platform to improve end user experience.
Let's start with the test system used. High performance components were chosen purely for testing purposes and to show capability of the platform rather than an indicative mainstream system, it's up to end users to combine what price/performance components they wish to purchase.
SYSTEM: GIGABYTE A75M-D2H v1.0 (F3 shipping bios & F4c beta bios) AMD A8-3850 (quad core, 2.9GHz CPU, 600MHz GPU clock) 4GB RAM KIT, Corsair CMGTX3 8GB RAM KIT, Corsair CMGTX7 750W Corsair HX750 PSU H100 Corsair water cooler Kingston SSDNow V Series 128GB SSD Drive (SATA0 port) ATI 11.7 Display Driver Windows 7 64-bit OS
The following benchmarks were used to assess performance and stability.
BENCHMARKS: 3DMARK Vantage Performance Super Pi 8M Cinebench CPU Cinebench Open GL Dirt3 game w Prime 32M
We chose a variety of CPU and GPU based benchmarks to try and understand how overclocking affects performance. In terms of CPU based benchmarks we chose Super Pi 8M, w Prime 32M and Cinebench CPU which test single and multi core performance. GPU based benchmarks include 3DMARK Vantage Performance, Cinebench Open GL and Dirt3 DX11 video game.
These benchmarks are in no way a final test of stability and for further stability testing it is recommended to use some form of CPU and GPU stress software. Ultimate stability is still the test of time.
Dino Strkljevic (dinos22), GIGABYTE Australia Page 1
Page Summary Contents For GIGABYTE AMD A75 Chipset OC Guide
Manual Details
| Brand | GIGABYTE |
|---|---|
| Pages | 8 |
| File Size | 2.09 MB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the best way to properly overclock this Llano platform given the APU's limitations?
The recommended method is controlling the reference clock or base clock (bclock), which controls CPU, memory, and GPU frequency simultaneously.
Is increasing the CPU clock speed more effective than optimizing the RAM speed for overall system performance?
No. The testing showed that combining OC with higher memory speeds yields better overall results compared to raising CPU clocks alone.
If I overclock my components, can I trust the displayed clock frequencies from monitoring utilities?
Monitoring utilities may show incorrect speeds; it is recommended to verify changes by analyzing performance benchmarks.
Are AMD APUs fully unlocked for maximum adjustments in the BIOS settings?
No. Current APUs are partially locked upwards, meaning multipliers and GPU frequencies cannot exceed defined default values regardless of what is selected.
