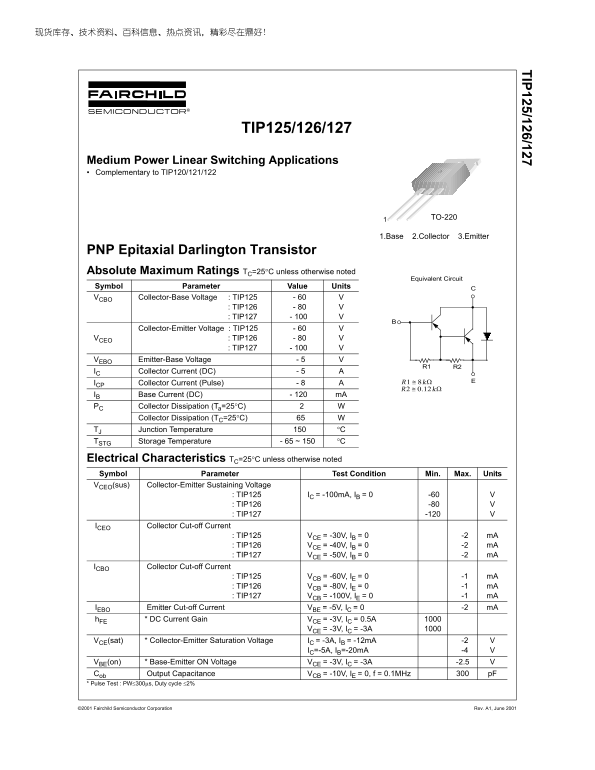

TIP125/126/127
TIP125/126/127
Medium Power Linear Switching Applications Complementary to TIP120/121/122
TO-220
1.Base 2.Collector 3.Emitter
PNP Epitaxial Darlington Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted
Equivalent Circuit
Symbol Parameter Value Units
VCBO Collector-Base Voltage : TIP125 - 60
: TIP126 - 80 : TIP127 - 100
Collector-Emitter Voltage : TIP125 - 60
VCEO : TIP126 - 80
: TIP127 - 100
VEBO Emitter-Base Voltage - 5
IC Collector Current (DC) - 5
ICP Collector Current (Pulse) - 8 R1 8kΩ≅ R2 0.12kΩ≅
IB Base Current (DC) - 120 m A PC Collector Dissipation (Ta=25°C) Collector Dissipation (TC=25°C) TJ Junction Temperature °C TSTG Storage Temperature - 65 ~ 150 °C
Electrical Characteristics TC=25°C unless otherwise noted Symbol Parameter Test Condition Min. Max. Units VCEO(sus) Collector-Emitter Sustaining Voltage
: TIP125 IC = -100m A, IB = 0 -60 : TIP126 -80 : TIP127 -120
ICEO Collector Cut-off Current
: TIP125 VCE = -30V, IB = 0 -2 m A
: TIP126 VCE = -40V, IB = 0 -2 m A : TIP127 VCE = -50V, IB = 0 -2 m A
ICBO Collector Cut-off Current
: TIP125 VCB = -60V, IE = 0 -1 m A
: TIP126 VCB = -80V, IE = 0 -1 m A
: TIP127 VCB = -100V, IE = 0 -1 m A
VBE = -5V, IC = 0 -2 m A
IEBO Emitter Cut-off Current
* DC Current Gain VCE = -3V, IC = 0.5A
VCE = -3V, IC = -3A
VCE(sat) * Collector-Emitter Saturation Voltage IC = -3A, IB = -12m A -2
IC=-5A, IB=-20m A -4
VBE(on) * Base-Emitter ON Voltage VCE = -3V, IC = -3A -2.5 Cob Output Capacitance VCB = -10V, IE = 0, f = 0.1MHz p F
* Pulse Test : PW≤300µs, Duty cycle ≤2%
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
