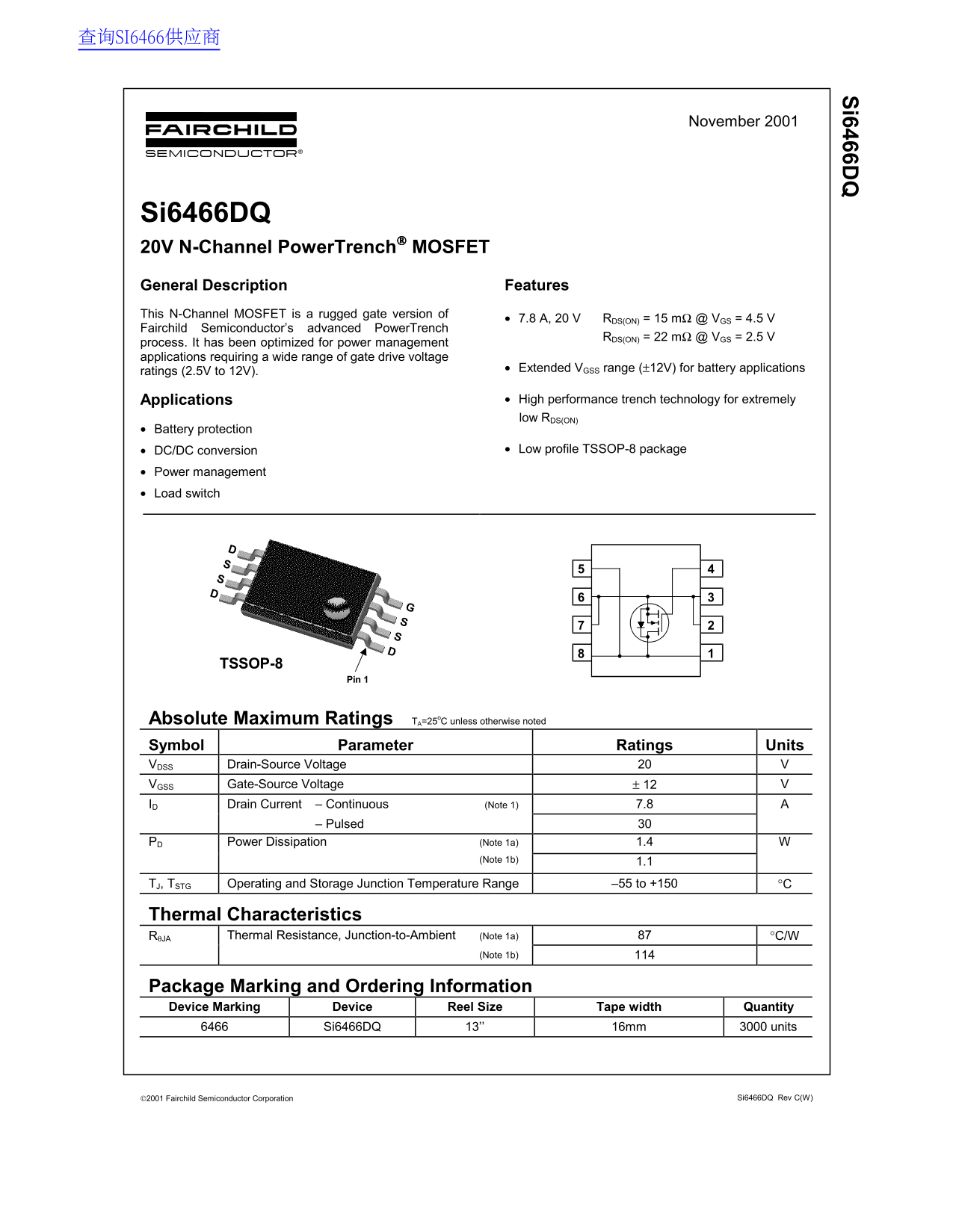

Page 1 Text Content
查询SI6466供应商
Si6466D November 2001
Si6466DQ 20V N-Channel Power Trench MOSFET General Description Features This N-Channel MOSFET is a rugged gate version of
• 7.8 A, 20 V RDS(ON) = 15 mΩ @ VGS = 4.5 V
Fairchild Semiconductor’s advanced Power Trench
RDS(ON) = 22 mΩ @ VGS = 2.5 V
process. It has been optimized for power management applications requiring a wide range of gate drive voltage
• Extended VGSS range (±12V) for battery applications
ratings (2.5V to 12V).
Applications • High performance trench technology for extremely low RDS(ON)
• Battery protection
• DC/DC conversion • Low profile TSSOP-8 package
• Power management • Load switch
TSSOP-8
Pin 1
Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage 20 V VGSS Gate-Source Voltage ± 12 V ID Drain Current – Continuous (Note 1) 7.8 A – Pulsed 30 PD Power Dissipation (Note 1a) 1.4 W (Note 1b) 1.1 TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C
Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 87 °C/W (Note 1b) 114
Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity 6466 Si6466DQ 13’’ 16mm 3000 units
2001 Fairchild Semiconductor Corporation Si6466DQ Rev C(W)
