These optocouplers are phototransistor devices utilizing Gallium Arsenide IREDs for robust signal transfer and strong electrical isolation. Ideal for engineers designing equipment in industrial controls, appliance sensors, or digital logic systems, they offer reliable performance across various applications. This comprehensive manual provides all necessary technical details, including absolute maximum ratings, detailed transfer curves, and specific guidelines for model variations (White/Black packages).

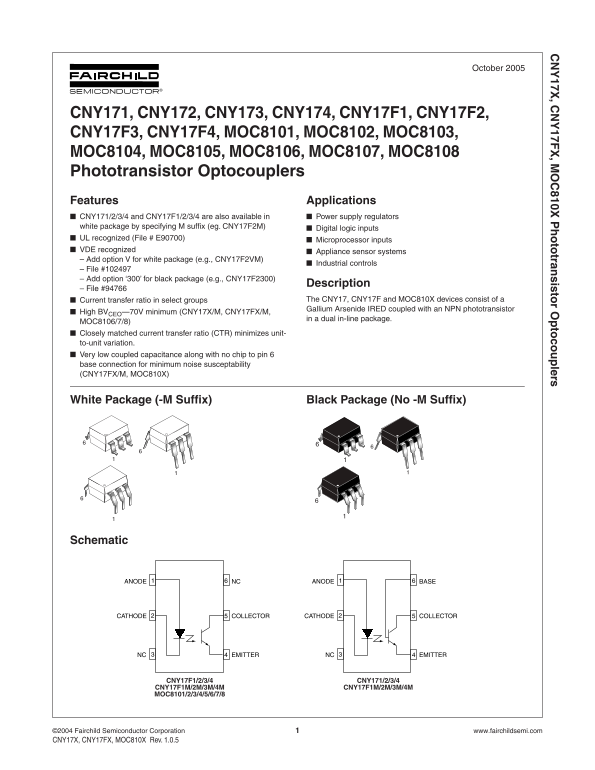

Page 1 Text Content
17X , C 17F , M 810X to tran sisto r O to co lers
October 2005
CNY171, CNY172, CNY173, CNY174, CNY17F1, CNY17F2, CNY17F3, CNY17F4, MOC8101, MOC8102, MOC8103, MOC8104, MOC8105, MOC8106, MOC8107, MOC8108 Phototransistor Optocouplers Features Applications CNY171/2/3/4 and CNY17F1/2/3/4 are also available in Power supply regulators white package by specifying M suffix (eg. CNY17F2M)
Digital logic inputs
UL recognized (File # E90700)
Microprocessor inputs
VDE recognized
Appliance sensor systems
– Add option V for white package (e.g., CNY17F2VM)
Industrial controls
– File #102497 – Add option ‘300’ for black package (e.g., CNY17F2300)
Description
– File #94766
Current transfer ratio in select groups The CNY17, CNY17F and MOC810X devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor
High BV —70V minimum (CNY17X/M, CNY17FX/M, CEO
in a dual in-line package.
MOC8106/7/8) Closely matched current transfer ratio (CTR) minimizes unit- to-unit variation. Very low coupled capacitance along with no chip to pin 6 base connection for minimum noise susceptability (CNY17FX/M, MOC810X)
White Package (-M Suffix) Black Package (No -M Suffix)
Schematic
NCANODE BASEANODE
CATHODE COLLECTOR CATHODE COLLECTOR
EMITTERNC NC EMITTER
CNY17F1/2/3/4 CNY171/2/3/4 CNY17F1M/2M/3M/4M CNY17F1M/2M/3M/4M MOC8101/2/3/4/5/6/7/8
©2004 Fairchild Semiconductor Corporation www.fairchildsemi.com CNY17X, CNY17FX, MOC810X Rev. 1.0.5
Page Summary Contents For FAIRCHILD SEMICONDUCTOR - CNY171 CNY172 CNY173 CNY174 CNY17F1 CNY17F2 CNY17F3 CNY17F4 MOC8101 MOC8102 MOC8103 MOC8104 MOC8105 MOC8106 MOC8107 MOC8108 Phototransistor Optocouplers - Hand User Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 15 |
| File Size | 590.39 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can these optocouplers be used in life support systems?
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without direct written approval.
What is the minimum I-O isolation voltage required for a black package?
The I-O isolation voltage must meet at least 5300 Vac(rms) when tested for one minute.
How should power dissipation be derated from ambient temperature?
The total device power dissipation (for LED plus detector) must be linearly derated from the value established at 25°C ambient operating temperature.
What does the '-M' suffix signify regarding the package type?
The '-M' suffix indicates that the unit is available in a White Package, whereas units without this suffix are in a Black Package.
