Fairchild MV883X MV8832 MV8833 Data Sheet
Summary
This high-brightness T-1 3/4 mini LED lamp features super orange-red output and water clear optics, making it ideal for durable outdoor lighting applications. This technical manual provides essential information for engineers, including absolute maximum ratings, detailed electrical and optical specifications (for models MV883X/MV8832), and comprehensive performance curves to ensure accurate integration into your demanding illumination systems.
Page 1 Text Content

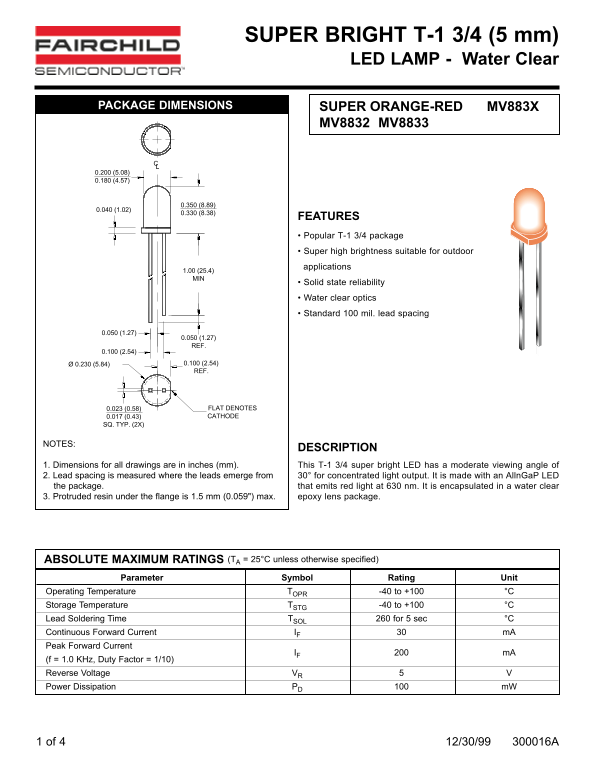

SUPER BRIGHT T-1 3/4 (5 mm)
LED LAMP - Water Clear
PACKAGE DIMENSIONS SUPER ORANGE-RED MV883X
MV8832 MV8833
FEATURES • Popular T-1 3/4 package • Super high brightness suitable for outdoor applications
1.00 (25.4) MIN
• Solid state reliability • Water clear optics • Standard 100 mil. lead spacing
0.050 (1.27) REF.
Ø 0.230 (5.84) 0.100 (2.54) REF.
0.023 (0.58) FLAT DENOTES 0.017 (0.43) CATHODE
SQ. TYP. (2X)
NOTES:
DESCRIPTION
1. Dimensions for all drawings are in inches (mm). This T-1 3/4 super bright LED has a moderate viewing angle of 2. Lead spacing is measured where the leads emerge from 30° for concentrated light output. It is made with an Alln Ga P LED the package. that emits red light at 630 nm. It is encapsulated in a water clear 3. Protruded resin under the flange is 1.5 mm (0.059") max. epoxy lens package.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)
Parameter Symbol Rating Unit
Operating Temperature TOPR -40 to +100 °C Storage Temperature TSTG -40 to +100 °C Lead Soldering Time TSOL 260 for 5 sec °C Continuous Forward Current IF m A Peak Forward Current
IF m A
(f = 1.0 KHz, Duty Factor = 1/10) Reverse Voltage VR Power Dissipation PD m W
1 of 4 12/30/99 300016A
