FAIRCHILD ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3 Stealth Diode Data Manual
Summary
Stealth™ Diodes are high-performance components optimized for demanding power switching applications, offering low loss, fast recovery times (<30ns), and soft recovery up to 175°C. Ideal for developing reliable Universal Power Supplies, UPS free-wheeling circuits, boost converters, and motor drives. This manual provides complete technical documentation, including detailed electrical, thermal, and operational ratings, enabling power supply engineers to design highly efficient, high power density systems that minimize component stress and optimize performance in hard or soft switching environments.

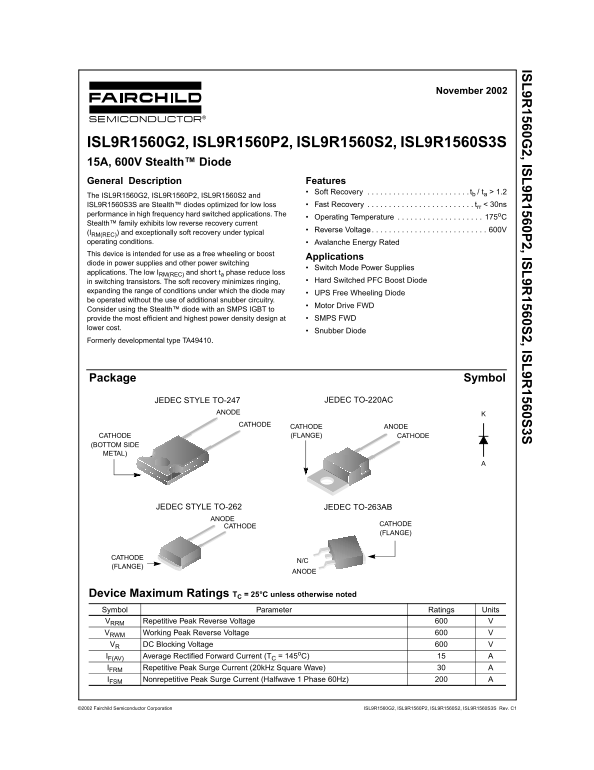

Page 1 Text Content
IS 9R 1560G 2, IS 9R 1560P 2, IS 9R 1560S 2, IS 1560S 3S
November 2002
ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3S 15A, 600V Stealth™ Diode General Description Features
Soft Recovery . . . . . . . . . . . . . . . . . . . . . . . . tb / ta > 1.2
The ISL9R1560G2, ISL9R1560P2, ISL9R1560S2 and
ISL9R1560S3S are Stealth™ diodes optimized for low loss Fast Recovery . . . . . . . . . . . . . . . . . . . . . . . . . trr < 30ns
performance in high frequency hard switched applications. The
Operating Temperature . . . . . . . . . . . . . . . . . . . . 175o C
Stealth™ family exhibits low reverse recovery current
Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
(IRM(REC)) and exceptionally soft recovery under typical operating conditions. Avalanche Energy Rated This device is intended for use as a free wheeling or boost
Applications
diode in power supplies and other power switching
Switch Mode Power Supplies
applications. The low IRM(REC) and short ta phase reduce loss
in switching transistors. The soft recovery minimizes ringing, Hard Switched PFC Boost Diode
expanding the range of conditions under which the diode may
UPS Free Wheeling Diode
be operated without the use of additional snubber circuitry.
Motor Drive FWD
Consider using the Stealth™ diode with an SMPS IGBT to
provide the most efficient and highest power density design at SMPS FWD
lower cost.
Snubber Diode
Formerly developmental type TA49410.
Package Symbol
JEDEC STYLE TO-247 JEDEC TO-220AC
ANODE
CATHODE
CATHODE ANODE
CATHODE (FLANGE) CATHODE
(BOTTOM SIDE METAL)
JEDEC STYLE TO-262 JEDEC TO-263AB
ANODE
CATHODE
CATHODE
(FLANGE)
N/CCATHODE
(FLANGE)
ANODE
Device Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VRRM Repetitive Peak Reverse Voltage
VRWM Working Peak Reverse Voltage VR DC Blocking Voltage IF(AV) Average Rectified Forward Current (TC = 145o C) IFRM Repetitive Peak Surge Current (20k Hz Square Wave) IFSM Nonrepetitive Peak Surge Current (Halfwave 1 Phase 60Hz)
2002 Fairchild Semiconductor Corporation ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3S Rev. C1
Page Summary Contents For FAIRCHILD ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3 Stealth Diode Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 167.09 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum reverse voltage for this diode?
The device has a Rectified Peak Reverse Voltage (RRM) and Working Peak Reverse Voltage (RWM) rating of 600V.
What is the typical operating temperature range?
The operating and storage temperature range is -55 to 175 °C.
Does this diode minimize ringing in power supplies?
Yes, soft recovery minimizes ringing, allowing operation without additional snubber circuitry.
What types of devices can use the Stealth™ diodes for specialized conversion?
They are suitable for free wheeling or boost applications to serve as a diode in power supplies and Switch Mode Power Supplies (SMPS).
Can I use this diode with an SMPS IGBT?
Yes, pairing it with an SMPS IGBT provides the most efficient and highest power density design.
