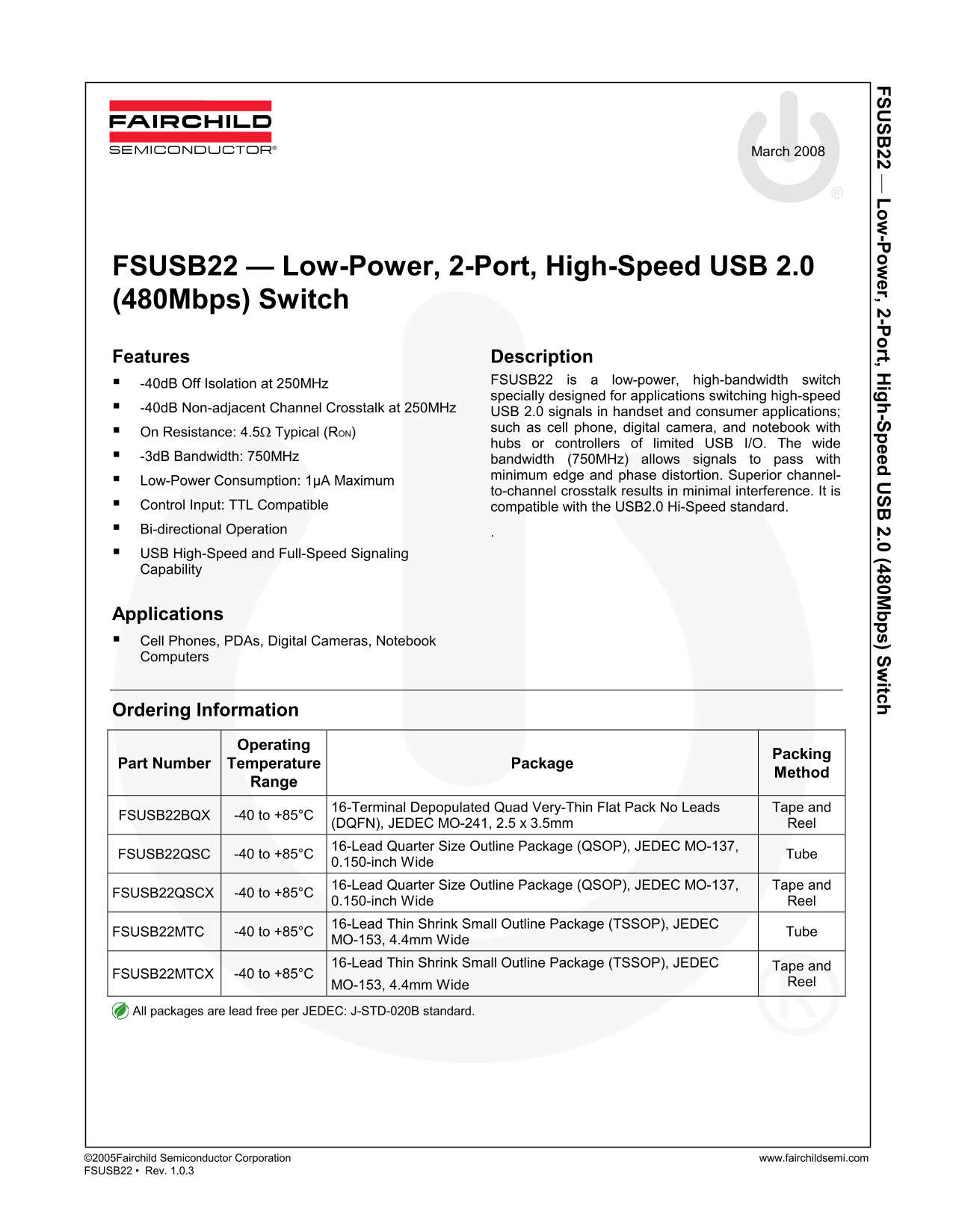

FSU SB 22 — Low -Pow er, 2-Port, H igh-Speed U SB 2.0 (480M bps) Sw itch
March 2008
FSUSB22 — Low-Power, 2-Port, High-Speed USB 2.0 (480Mbps) Switch Features Description
-40d B Off Isolation at 250MHz FSUSB22 is a low-power, high-bandwidth switch specially designed for applications switching high-speed
-40d B Non-adjacent Channel Crosstalk at 250MHz
USB 2.0 signals in handset and consumer applications; such as cell phone, digital camera, and notebook with
On Resistance: 4.5Ω Typical (RON)
hubs or controllers of limited USB I/O. The wide
-3d B Bandwidth: 750MHz bandwidth (750MHz) allows signals to pass with
minimum edge and phase distortion. Superior channel-
Low-Power Consumption: 1µA Maximum
to-channel crosstalk results in minimal interference. It is
Control Input: TTL Compatible compatible with the USB2.0 Hi-Speed standard. Bi-directional Operation USB High-Speed and Full-Speed Signaling Capability
Applications Cell Phones, PDAs, Digital Cameras, Notebook Computers
Ordering Information
Operating
Part Number Temperature Package Packing
Method
Range
Tape and
FSUSB22BQX -40 to +85°C 16-Terminal Depopulated Quad Very-Thin Flat Pack No Leads
(DQFN), JEDEC MO-241, 2.5 x 3.5mm Reel
FSUSB22QSC -40 to +85°C 16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137,
0.150-inch Wide Tube
Tape and
FSUSB22QSCX -40 to +85°C 16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137,
0.150-inch Wide Reel
FSUSB22MTC -40 to +85°C 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC
MO-153, 4.4mm Wide Tube 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC Tape and
FSUSB22MTCX -40 to +85°C
MO-153, 4.4mm Wide Reel
All packages are lead free per JEDEC: J-STD-020B standard.
