Fairchild FLD00030 Analog Ambient Light Sensor Data Sheet
Summary
This datasheet documents the Fairchild FLD00030 analog ambient light sensor, a compact photodetector measuring just 1.7mm×0.8mm with a 0.6mm low profile. The device incorporates a phototransistor detector with integral filter technology providing spectral response closely matching the human eye for accurate ambient light measurement. Good output linearity is maintained across a wide illumination range, with light current of 710μA typical at 100 lux and 230μA typical at 1,000 lux at 5V collector-

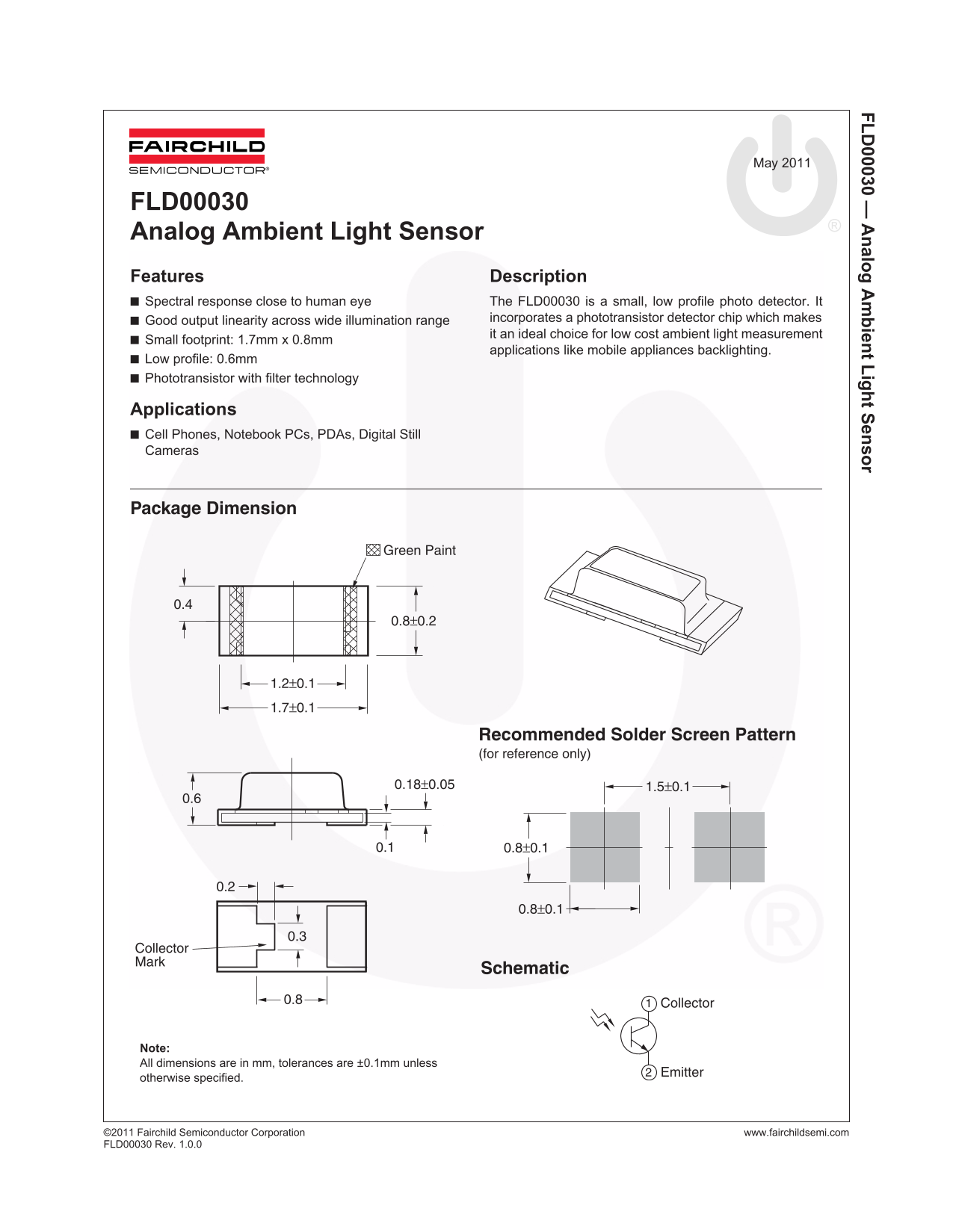

Page 1 Text Content
00030 — alo ien t L ig t S en so
May 2011
FLD00030 Analog Ambient Light Sensor Features Description Spectral response close to human eye The FLD00030 is a small, low profile photo detector. It
Good output linearity across wide illumination range incorporates a phototransistor detector chip which makes it an ideal choice for low cost ambient light measurement
Small footprint: 1.7mm x 0.8mm
applications like mobile appliances backlighting.
Low profile: 0.6mm Phototransistor with filter technology
Applications Cell Phones, Notebook PCs, PDAs, Digital Still Cameras
Package Dimension
Green Paint
Recommended Solder Screen Pattern (for reference only)
Collector Mark
Schematic
Collector
Note: All dimensions are in mm, tolerances are ±0.1mm unless
Emitter
otherwise specified.
