Fairchild 74F401 CRC Generator Checker Data Sheet

Summary

This programmable 16-bit integrated circuit is a Cyclic Redundancy Check (CRC) Generator and Checker. It provides advanced error detection for serial digital data communication by generating and validating check bits using eight selectable, customizable polynomials (e.g., CRC-16, CRC-CCITT). Designed for digital system designers, it integrates seamlessly into applications ranging from floppy disk storage systems to complex data handling circuits, ensuring data integrity during transmission with high reliability.

📄 Preview PAGE OF 7

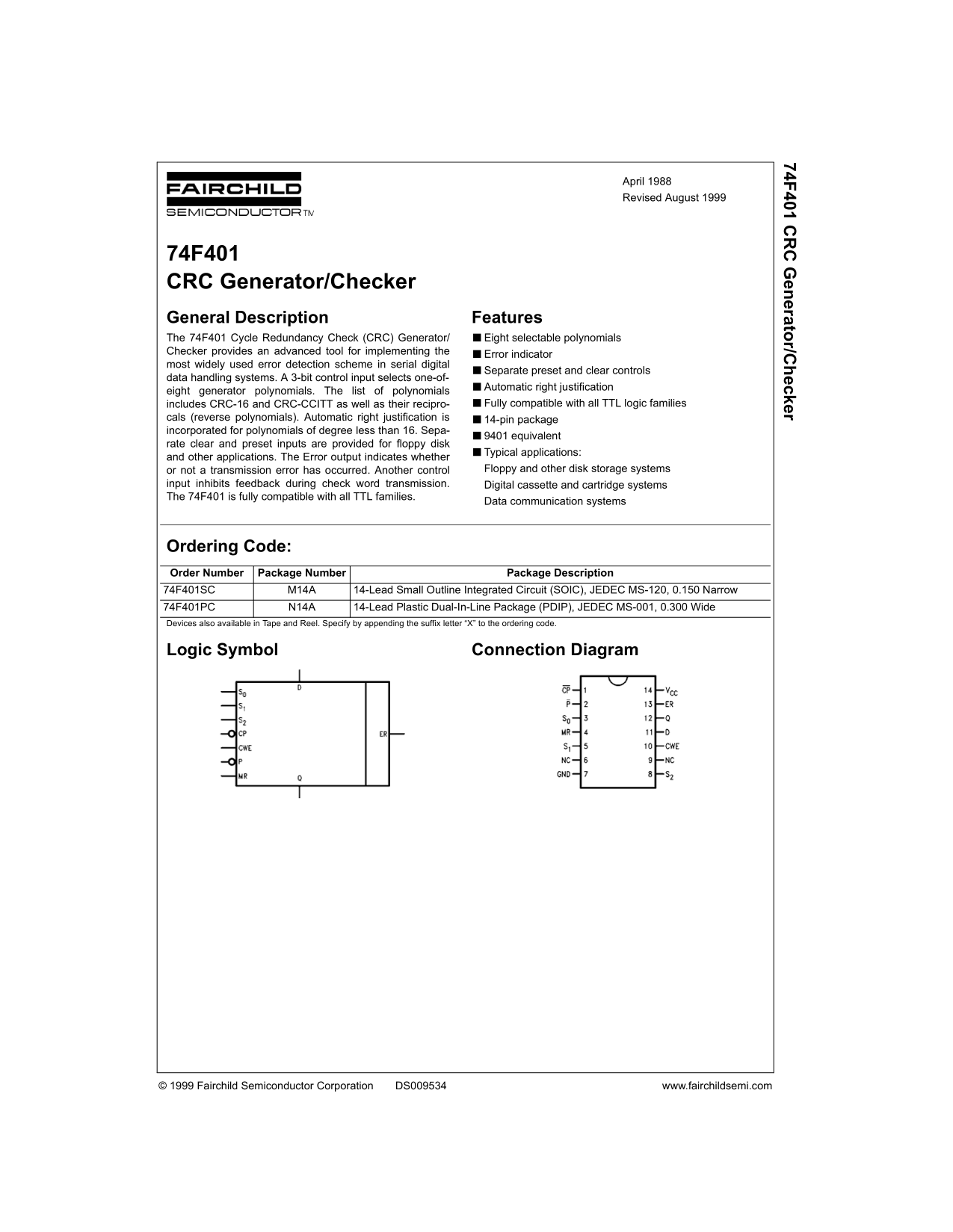

Page 1 Text Content

74F 401 C en erato r/C ecker

April 1988 Revised August 1999

74F401 CRC Generator/Checker General Description Features The 74F401 Cycle Redundancy Check (CRC) Generator/ Eight selectable polynomials Checker provides an advanced tool for implementing the

Error indicator

most widely used error detection scheme in serial digital

Separate preset and clear controls

data handling systems. A 3-bit control input selects one-of-

Automatic right justification

eight generator polynomials. The list of polynomials

includes CRC-16 and CRC-CCITT as well as their recipro- Fully compatible with all TTL logic families

cals (reverse polynomials). Automatic right justification is 14-pin package incorporated for polynomials of degree less than 16. Sepa-

9401 equivalent

rate clear and preset inputs are provided for floppy disk

Typical applications:

and other applications. The Error output indicates whether

or not a transmission error has occurred. Another control Floppy and other disk storage systems

input inhibits feedback during check word transmission. Digital cassette and cartridge systems The 74F401 is fully compatible with all TTL families.

Data communication systems

Ordering Code: Order Number Package Number Package Description 74F401SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 74F401PC N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol Connection Diagram

© 1999 Fairchild Semiconductor Corporation DS009534 www.fairchildsemi.com

Page Summary Contents For Fairchild 74F401 CRC Generator Checker Data Sheet

Page 1 74F 401 C en erato r/C ecker April 1988 Revised August 1999 74F401 CRC Generator/Checker General Description Features The 74F401 Cycle Redundancy Check (CRC) Generator/ Eight selectable polynomials Ch...
Page 2 Unit Loading/Fan Out U.L. Input IIH/IIL Pin Names Description HIGH/LOW Output IOH/IOL S0–S2 Polynomial Select Inputs 1.0/1.0 20 µA/−0.6 m A Data Input 1.0/1.0 20 µA/−0.6 m A CP Clock Input (Operates o...
Page 3 74F Block Diagram FIGURE 1. Equivalent Circuit for X16 + X15 + X2 + 1 FIGURE 2. Check Word Generation Note 1: Check word Enable is HIGH while data is being clocked, LOW while transmission of check bit...
Page 4 Absolute Maximum Ratings(Note 4) Recommended Operating Conditions Storage Temperature −65°C to +150°C Ambient Temperature under Bias −55°C to +125°C Free Air Ambient Temperature 0°C to +70°C Junction ...
Page 5 74F AC Electrical Characteristics TA = +25°C TA = 0°C to +70°C VCC = +5.0V VCC = +5.0V Symbol Parameter Units CL = 50 p F CL = 50 p F Min Typ Max Min Max f MAX Maximum Clock Frequency MHz t PLH Propag...
Page 6 Physical Dimensions inches (millimeters) unless otherwise noted 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow Package Number M14A www.fairchildsemi.com
Page 7 74F 401 C en erato r/C ecker Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Package Number N14A Fairc...

Manual Details

Brand Fairchild
Pages 7
File Size 63.16 KB
Published June 22, 2026
8 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How is error detection performed using the 74F401?

Data and check bits are entered through D; if detectable errors occur, the Error Output (ER) goes HIGH.

What conditions are required to generate the check bits?

The Check Word Enable (CWE) input must be held HIGH while the data is being entered, and an external circuit gates the remaining bits.

How can I select different generating polynomials?

Use the Polynomial Select Inputs (S2, S1, S0). The unit has a 3-bit control input that selects one of eight generator polynomials.

Is the 74F401 compatible with other logic families?

Yes, the 74F401 is fully compatible with all TTL families.
