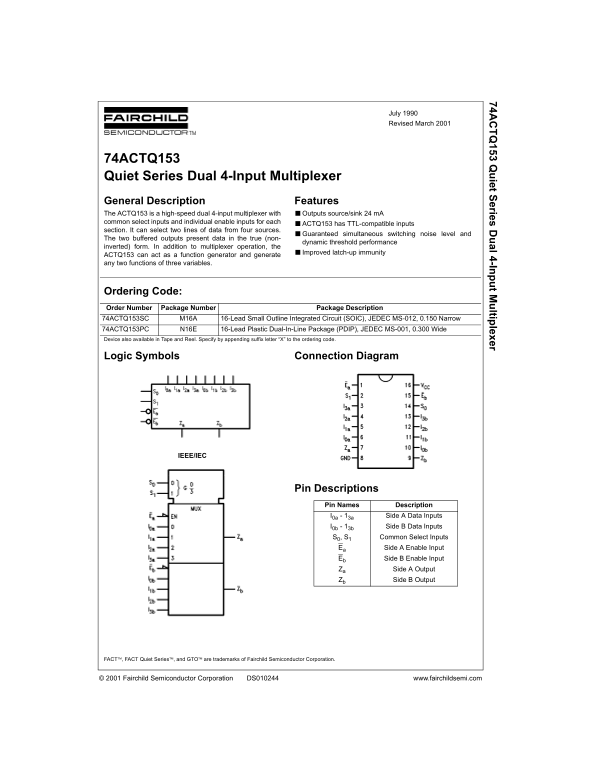

Fairchild 74ACTQ153 Quiet Series Dual 4-Input Multiplexer Data Manual

74A 153 Q iet S eries D al 4-In t M ltip lexer

July 1990 Revised March 2001

74ACTQ153 Quiet Series Dual 4-Input Multiplexer General Description Features The ACTQ153 is a high-speed dual 4-input multiplexer with ■Outputs source/sink 24 m A common select inputs and individual enable inputs for each

■ACTQ153 has TTL-compatible inputs

section. It can select two lines of data from four sources.

■Guaranteed simultaneous switching noise level and

The two buffered outputs present data in the true (non-

dynamic threshold performance

inverted) form. In addition to multiplexer operation, the

Improved latch-up immunity

ACTQ153 can act as a function generator and generate any two functions of three variables.

Ordering Code: Order Number Package Number Package Description 74ACTQ153SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow 74ACTQ153PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.

Logic Symbols Connection Diagram

IEEE/IEC

Pin Descriptions Pin Names Description

I0a - 13a Side A Data Inputs

I0b - 13b Side B Data Inputs S0, S1 Common Select Inputs

Ea Side A Enable Input

Eb Side B Enable Input Za Side A Output

Zb Side B Output

FACT, FACT Quiet Series, and GTO are trademarks of Fairchild Semiconductor Corporation.
