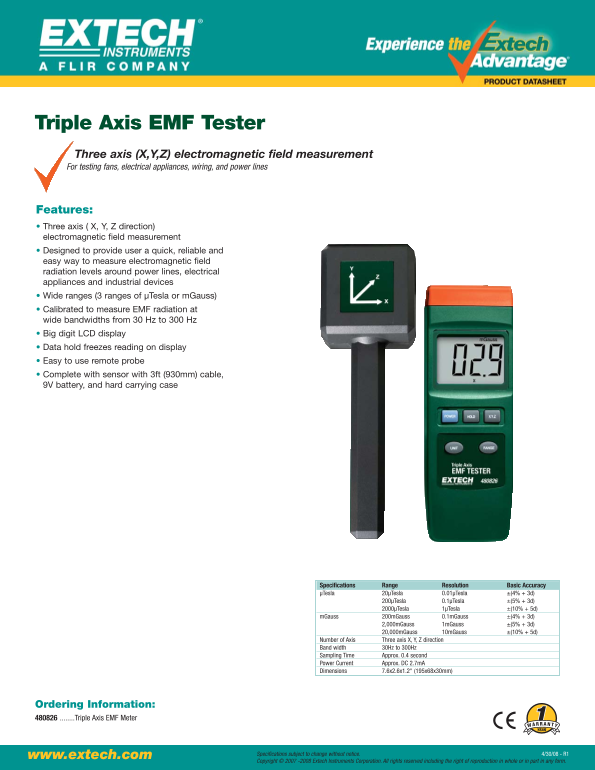

Page 1 Text Content
Triple Axis EMF Tester Three axis (X,Y,Z) electromagnetic field measurement For testing fans, electrical appliances, wiring, and power lines
Features: Three axis ( X, Y, Z direction) electromagnetic field measurement Designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices Wide ranges (3 ranges of µTesla or m Gauss) Calibrated to measure EMF radiation at wide bandwidths from 30 Hz to 300 Hz Big digit LCD display Data hold freezes reading on display Easy to use remote probe Complete with sensor with 3ft (930mm) cable, 9V battery, and hard carrying case
Specifications Range Resolution Basic Accuracy µTesla 20µTesla 0.01µTesla ±(4% + 3d)
200µTesla 0.1µTesla ±(5% + 3d) 2000µTesla 1µTesla ±(10% + 5d)
m Gauss 200m Gauss 0.1m Gauss ±(4% + 3d)
2,000m Gauss 1m Gauss ±(5% + 3d) 20,000m Gauss 10m Gauss ±(10% + 5d)
Number of Axis Three axis X, Y, Z direction Band width 30Hz to 300Hz Sampling Time Approx. 0.4 second Power Current Approx. DC 2.7m A Dimensions 7.6x2.6x1.2" (195x68x30mm)
Ordering Information: ........Triple Axis EMF Meter
www.extech.com Specifications subject to change without notice. 4/30/08 - R1 Copyright © 2007 -2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
