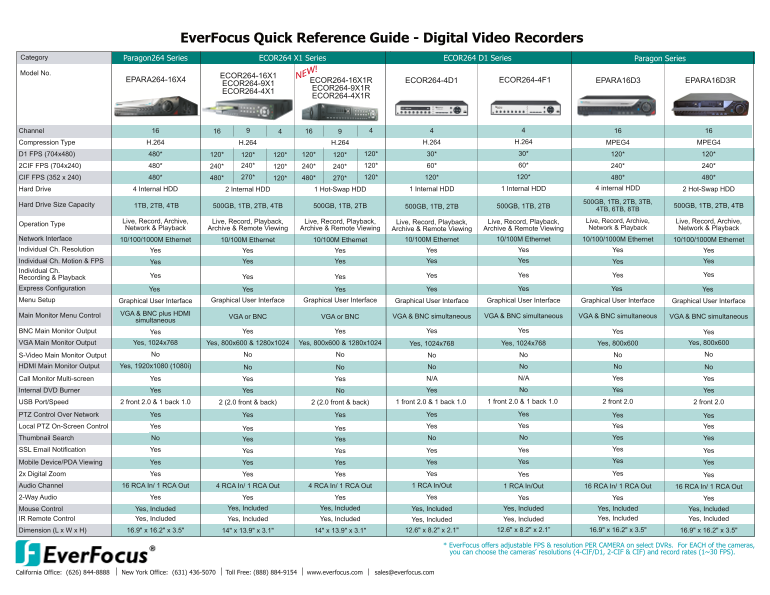

Ever Focus Quick Reference Guide - Digital Video Recorders
Category Paragon264 Series ECOR264 X1 Series ECOR264 D1 Series Paragon Series
Model No.
ECOR264-16X1
EPARA264-16X4 ECOR264-16X1R ECOR264-4D1 ECOR264-4F1 EPARA16D3 EPARA16D3R
ECOR264-9X1
ECOR264-9X1R
ECOR264-4X1
ECOR264-4X1R
Channel
Compression Type H.264 H.264 H.264 H.264 H.264 MPEG4 MPEG4 D1 FPS (704x480) 480* 120* 120* 120* 120* 120* 120* 30* 30* 120* 120* 2CIF FPS (704x240) 480* 240* 240* 120* 240* 240* 120* 60* 60* 240* 240* CIF FPS (352 x 240) 480* 480* 270* 120* 480* 270* 120* 120* 120* 480* 480*
Hard Drive 4 Internal HDD 2 Internal HDD 1 Hot-Swap HDD 1 Internal HDD 1 Internal HDD 4 internal HDD 2 Hot-Swap HDD
500GB, 1TB, 2TB, 3TB,
Hard Drive Size Capacity 1TB, 2TB, 4TB 500GB, 1TB, 2TB, 4TB 500GB, 1TB, 2TB 500GB, 1TB, 2TB 500GB, 1TB, 2TB 500GB, 1TB, 2TB, 4TB
4TB, 6TB, 8TB
Live, Record, Archive, Live, Record, Playback, Live, Record, Playback, Live, Record, Playback, Live, Record, Playback, Live, Record, Archive, Live, Record, Archive,
Operation Type
Network & Playback Archive & Remote Viewing Archive & Remote Viewing Archive & Remote Viewing Archive & Remote Viewing Network & Playback Network & Playback
Network Interface 10/100/1000M Ethernet 10/100M Ethernet 10/100M Ethernet 10/100M Ethernet 10/100M Ethernet 10/100/1000M Ethernet 10/100/1000M Ethernet Individual Ch. Resolution Yes Yes Yes Yes Yes Yes Yes
Individual Ch. Motion & FPS Yes Yes Yes Yes Yes Yes Yes
Individual Ch.
Yes Yes Yes Yes Yes
Recording & Playback Yes Yes
Express Configuration Yes Yes Yes Yes Yes Yes Yes Menu Setup Graphical User Interface Graphical User Interface Graphical User Interface Graphical User Interface Graphical User Interface Graphical User Interface Graphical User Interface
VGA & BNC plus HDMI
Main Monitor Menu Control VGA or BNC VGA or BNC VGA & BNC simultaneous VGA & BNC simultaneous VGA & BNC simultaneous VGA & BNC simultaneous
simultaneous
BNC Main Monitor Output Yes Yes Yes Yes Yes Yes Yes
VGA Main Monitor Output Yes, 1024x768 Yes, 800x600 & 1280x1024 Yes, 800x600 & 1280x1024 Yes, 1024x768 Yes, 1024x768 Yes, 800x600 Yes, 800x600 S-Video Main Monitor Output No No No No No No No HDMI Main Monitor Output Yes, 1920x1080 (1080i) No No No No No No
Call Monitor Multi-screen Yes Yes Yes N/A N/A Yes Yes Internal DVD Burner Yes Yes No Yes No Yes Yes
USB Port/Speed 2 front 2.0 & 1 back 1.0 2 (2.0 front & back) 2 (2.0 front & back) 1 front 2.0 & 1 back 1.0 1 front 2.0 & 1 back 1.0 2 front 2.0 2 front 2.0
PTZ Control Over Network Yes Yes Yes Yes Yes Yes Yes Local PTZ On-Screen Control Yes Yes Yes Yes Yes
Yes Yes
Thumbnail Search No Yes Yes No No Yes Yes
SSL Email Notification Yes Yes Yes Yes Yes Yes Yes Mobile Device/PDA Viewing Yes Yes Yes Yes Yes Yes Yes 2x Digital Zoom Yes Yes Yes Yes Yes Yes Yes
Audio Channel 16 RCA In/ 1 RCA Out 4 RCA In/ 1 RCA Out 4 RCA In/ 1 RCA Out 1 RCA In/Out 1 RCA In/Out 16 RCA In/ 1 RCA Out 16 RCA In/ 1 RCA Out 2-Way Audio Yes Yes Yes Yes Yes Yes Yes
Mouse Control Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included
IR Remote Control Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included Yes, Included
Dimension (L x W x H) 16.9" x 16.2" x 3.5" 14" x 13.9" x 3.1" 14" x 13.9" x 3.1" 12.6" x 8.2" x 2.1" 12.6" x 8.2" x 2.1” 16.9" x 16.2" x 3.5" 16.9" x 16.2" x 3.5"
* Ever Focus offers adjustable FPS & resolution PER CAMERA on select DVRs. For EACH of the cameras, you can choose the cameras’ resolutions (4-CIF/D1, 2-CIF & CIF) and record rates (1~30 FPS).
California Office: (626) 844-8888 New York Office: (631) 436-5070 Toll Free: (888) 884-9154 www.everfocus.com [email protected]
