EverFocus ED700 User’s Manual
Summary
Discover exceptional image clarity with the EVERFOCUS Ultra Series Dome Camera (Model ED700). Engineered for demanding low-light indoor surveillance applications, this 3-axis camera features ultra resolution of over 720 horizontal TV lines and superb sensitivity (.05 lux). This comprehensive manual provides crucial guidance on proper installation, safe operation procedures, electrical precautions, and maintenance steps. It is essential reading for professionals integrating high-performance, cost-effective analog CCTV systems into their facilities.

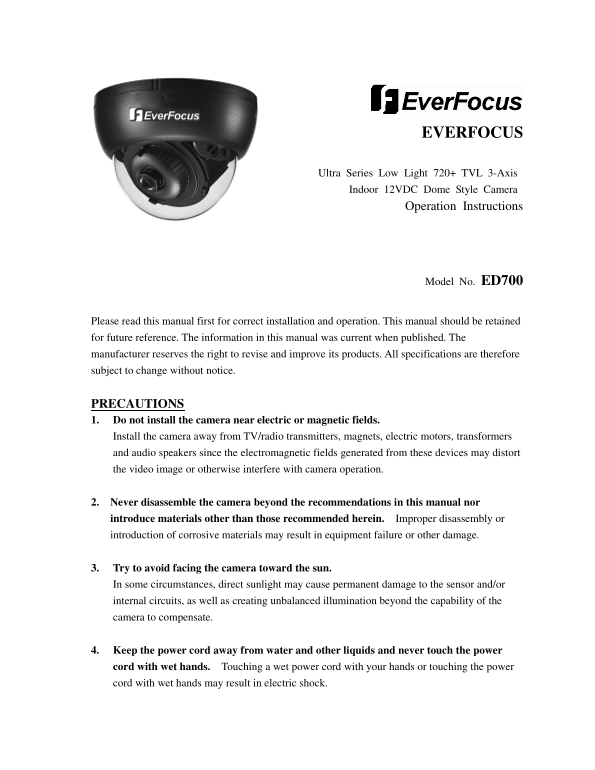

Page 1 Text Content
EVERFOCUS
Ultra Series Low Light 720+ TVL 3-Axis Indoor 12VDC Dome Style Camera
Operation Instructions
Model No. ED700
Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
PRECAUTIONS 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. Improper disassembly or introduction of corrosive materials may result in equipment failure or other damage.
3. Try to avoid facing the camera toward the sun. In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal circuits, as well as creating unbalanced illumination beyond the capability of the camera to compensate.
4. Keep the power cord away from water and other liquids and never touch the power cord with wet hands. Touching a wet power cord with your hands or touching the power cord with wet hands may result in electric shock.
Page Summary Contents For EverFocus ED700 User’s Manual
Manual Details
| Brand | EverFocus |
|---|---|
| Pages | 7 |
| File Size | 818.02 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum low light sensitivity of this camera?
The Exview HAD II sensor delivers an exceptional low light sensitivity rating of 0.05 lux.
How should I properly clean the camera lens or sensor?
Use a specialized lens tissue or a cotton tipped applicator with ethanol for the sensor; use a damp soft cloth for the body.
Where is this EverFocus camera designed to be used?
It is intended for indoor operation only and cannot be operated in outdoor conditions.
What are the required input specifications for mounting?
The system requires an input power source of 12VDC, with a low current draw of approximately 110mA.
