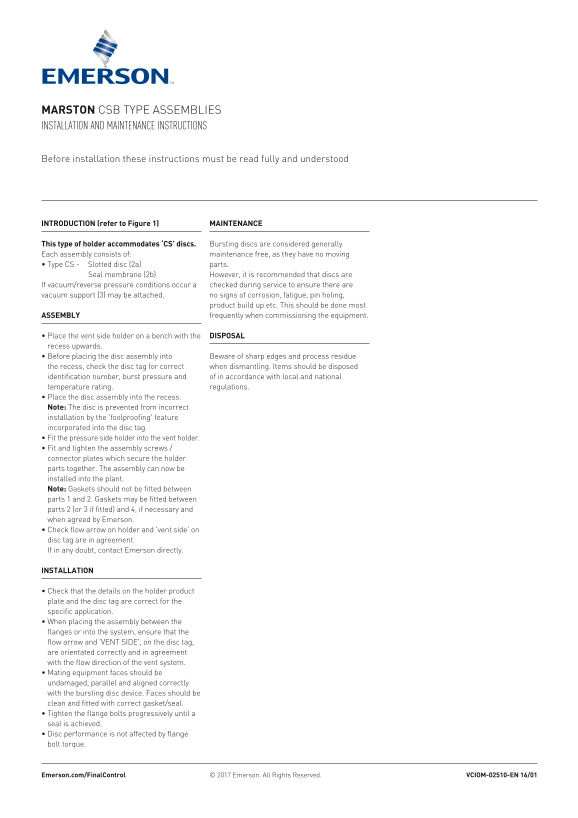

Page 1 Text Content
MARSTON CSB TYPE ASSEMBLIES INSTALLATION AND MAINTENANCE INSTRUCTIONS
Before installation these instructions must be read fully and understood
INTRODUCTION (refer to Figure 1) MAINTENANCE
This type of holder accommodates ‘CS’ discs. Bursting discs are considered generally Each assembly consists of: maintenance free, as they have no moving • Type CS - Slotted disc (2a) parts.
Seal membrane (2b) However, it is recommended that discs are
If vacuum/reverse pressure conditions occur a checked during service to ensure there are vacuum support (3) may be attached. no signs of corrosion, fatigue, pin holing,
product build up etc. This should be done most ASSEMBLY frequently when commissioning the equipment.
• Place the vent side holder on a bench with the DISPOSAL
recess upwards. • Before placing the disc assembly into Beware of sharp edges and process residue the recess, check the disc tag for correct when dismantling. Items should be disposed identification number, burst pressure and of in accordance with local and national temperature rating. regulations. • Place the disc assembly into the recess. Note: The disc is prevented from incorrect installation by the 'foolproofing' feature incorporated into the disc tag. • Fit the pressure side holder into the vent holder. • Fit and tighten the assembly screws / connector plates which secure the holder parts together. The assembly can now be installed into the plant. Note: Gaskets should not be fitted between parts 1 and 2. Gaskets may be fitted between parts 2 (or 3 if fitted) and 4, if necessary and when agreed by Emerson. • Check flow arrow on holder and 'vent side' on disc tag are in agreement. If in any doubt, contact Emerson directly.
INSTALLATION
• Check that the details on the holder product plate and the disc tag are correct for the specific application. • When placing the assembly between the flanges or into the system, ensure that the flow arrow and 'VENT SIDE', on the disc tag, are orientated correctly and in agreement with the flow direction of the vent system. • Mating equipment faces should be undamaged, parallel and aligned correctly with the bursting disc device. Faces should be clean and fitted with correct gasket/seal. • Tighten the flange bolts progressively until a seal is achieved. • Disc performance is not affected by flange bolt torque.
Emerson.com/Final Control © 2017 Emerson. All Rights Reserved. VCIOM-02510-EN 16/01
