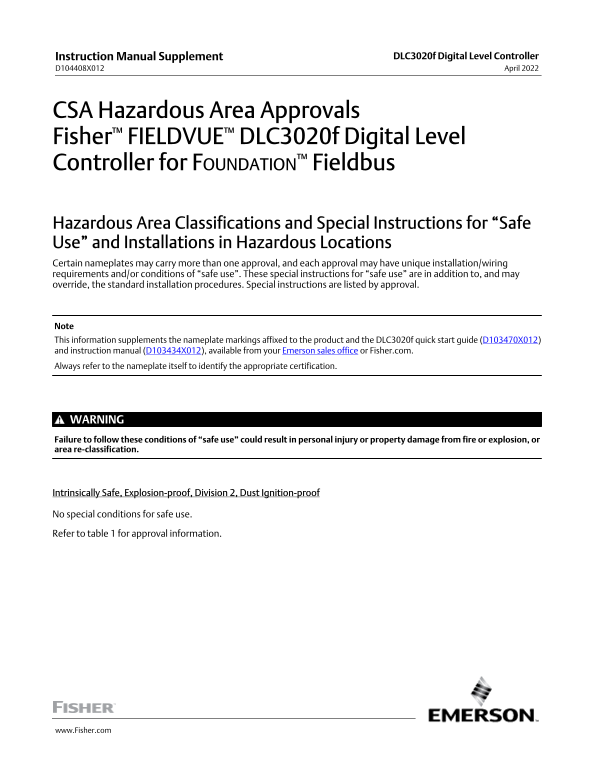

Instruction Manual Supplement DLC3020f Digital Level Controller
D104408X012 April 2022
CSA Hazardous Area Approvals Fisher™ FIELDVUE™ DLC3020f Digital Level Controller for FOUNDATION™ Fieldbus
Hazardous Area Classifications and Special Instructions for “Safe Use” and Installations in Hazardous Locations Certain nameplates may carry more than one approval, and each approval may have unique installation/wiring requirements and/or conditions of “safe use”. These special instructions for “safe use” are in addition to, and may override, the standard installation procedures. Special instructions are listed by approval.
Note This information supplements the nameplate markings affixed to the product and the DLC3020f quick start guide (D103470X012) and instruction manual (D103434X012), available from your Emerson sales office or Fisher.com. Always refer to the nameplate itself to identify the appropriate certification.
WARNING Failure to follow these conditions of “safe use” could result in personal injury or property damage from fire or explosion, or area re‐classification.
Intrinsically Safe, Explosion‐proof, Division 2, Dust Ignition‐proof
No special conditions for safe use. Refer to table 1 for approval information.
www.Fisher.com
