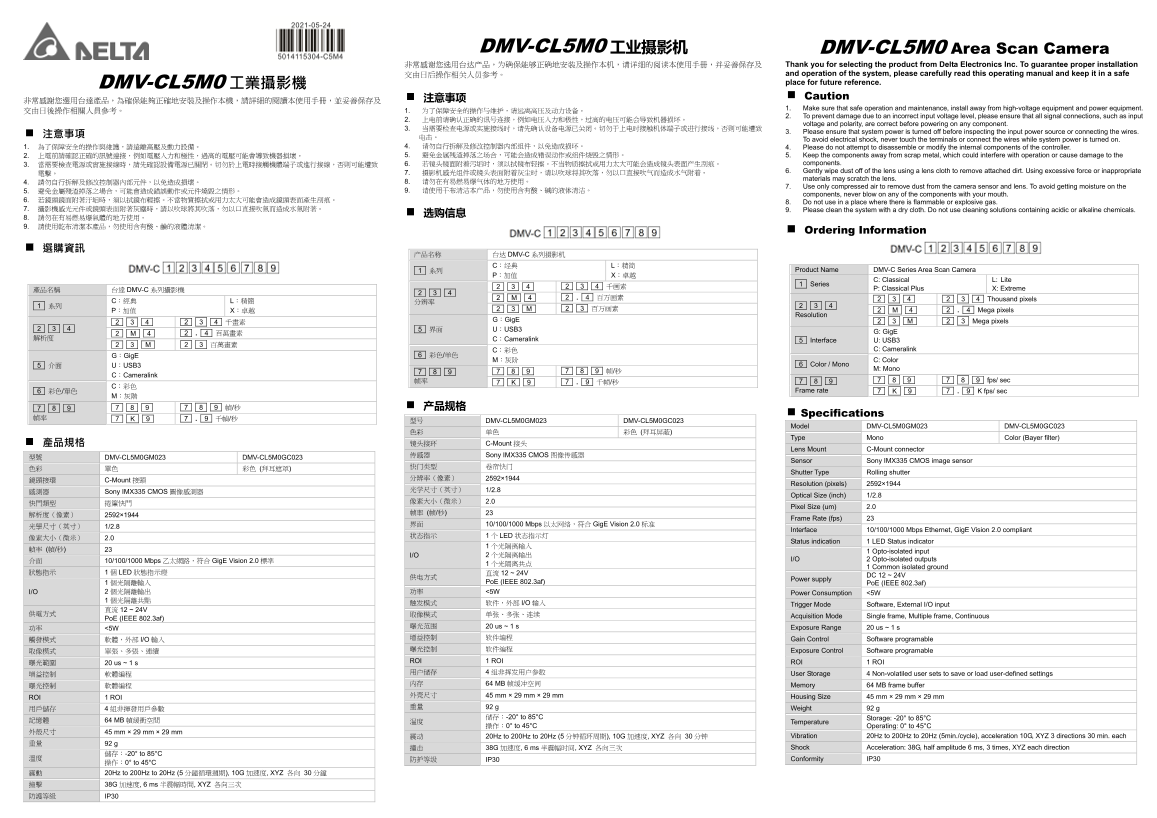

Delta DMV-CL5M0DMV Series Camera Operation Manual

DMV-CL5M0 工业摄影机 DMV-CL5M0 Area Scan Camera

非常感谢您选用台达产品，为确保能够正确地安装及操作本机，请详细的阅读本使用手册，并妥善保存及 Thank you for selecting the product from Delta Electronics Inc. To guarantee proper installation 交由日后操作相关人员参考。 and operation of the system, please carefully read this operating manual and keep it in a safe DMV-CL5M0 工業攝影機 place for future reference.  注意事项  Caution

1. Make sure that safe operation and maintenance, install away from high-voltage equipment and power equipment.

2. To prevent damage due to an incorrect input voltage level, please ensure that all signal connections, such as input

voltage and polarity, are correct before powering on any component.

3. Please ensure that system power is turned off before inspecting the input power source or connecting the wires.

To avoid electrical shock, never touch the terminals or connect the wires while system power is turned on.

1. 為了保障安全的操作與維護，請遠離高壓及動力設備。 4. 请勿自行拆解及修改控制器内部组件，以免造成损坏。 4. Please do not attempt to disassemble or modify the internal components of the controller. 2. 上電前請確認正確的訊號連接，例如電壓入力和極性，過高的電壓可能會導致機器損壞。 5. 避免金属残渣掉落之场合，可能会造成错误动作或组件烧毁之情形。 5. Keep the components away from scrap metal, which could interfere with operation or cause damage to the

3. 當需要檢查電源或實施接線時，請先確認設備電源已關閉。切勿於上電時接觸機體端子或進行接線，否則可能遭致 6. 若镜头镜面附着污垢时，须以拭镜布轻擦。不当物质擦拭或用力太大可能会造成镜头表面产生刮痕。 components. 7. 摄影机感光组件或镜头表面附着灰尘时，请以吹球将其吹落，勿以口直接吹气而造成水气附着。 6. Gently wipe dust off of the lens using a lens cloth to remove attached dirt. Using excessive force or inappropriate

materials may scratch the lens.

7. Use only compressed air to remove dust from the camera sensor and lens. To avoid getting moisture on the

components, never blow on any of the components with your mouth.

8. Do not use in a place where there is flammable or explosive gas.

7. 攝影機感光元件或鏡頭表面附著灰塵時，請以吹球將其吹落，勿以口直接吹氣而造成水氣附著。 9. Please clean the system with a dry cloth. Do not use cleaning solutions containing acidic or alkaline chemicals.

 Ordering Information

产品名称 台达 DMV-C 系列摄影机

1 系列 Product Name DMV-C Series Area Scan Camera

L: Lite

1 Series C: Classical

2 3 4 2 3 4 千画素 P: Classical Plus X: Extreme

產品名稱 台達 DMV-C 系列攝影機

2 M 4 2 . 4 百万画素 2 3 4 2 3 4 Thousand pixels

P：加值 X：卓越 2 3 M 2 3 百万画素 2 M 4 2 . 4 Mega pixels

Resolution

G：Gig E 2 3 M 2 3 Mega pixels

2 3 4 5 界面 U：USB3

2 M 4 2 . 4 百萬畫素 G: Gig E

解析度 C：Cameralink

5 Interface U: USB3

C：彩色 C: Cameralink

G：Gig E 6 彩色/单色

5 介面 U：USB3 6 Color / Mono C: Color

M: Mono

C：Cameralink

帧率 7 8 9 7 8 9 7 8 9 fps/ sec

6 彩色/單色 Frame rate 7 K 9 7 . 9 K fps/ sec

 Specifications

型号 DMV-CL5M0GM023 DMV-CL5M0GC023

Model DMV-CL5M0GM023 DMV-CL5M0GC023

Type Mono Color (Bayer filter)

 產品規格 镜头接环 C-Mount 接头

Lens Mount C-Mount connector

传感器 Sony IMX335 CMOS 图像传感器

型號 DMV-CL5M0GM023 DMV-CL5M0GC023

Sensor Sony IMX335 CMOS image sensor

Shutter Type Rolling shutter

鏡頭接環 C-Mount 接頭

Resolution (pixels) 2592×1944

感測器 Sony IMX335 CMOS 圖像感測器

Optical Size (inch) 1/2.8

Pixel Size (um) 2.0

Frame Rate (fps) 23

界面 10/100/1000 Mbps 以太网络，符合 Gig E Vision 2.0 标准

Interface 10/100/1000 Mbps Ethernet, Gig E Vision 2.0 compliant

状态指示 1 LED 状态指示灯

Status indication 1 LED Status indicator

1 Opto-isolated input

介面 10/100/1000 Mbps 乙太網路，符合 Gig E Vision 2.0 標準 I/O 2 Opto-isolated outputs

1 Common isolated ground

狀態指示 1 LED 狀態指示燈 12 ~ 24V

Power supply DC 12 ~ 24V

個光隔離輸入 Po E (IEEE 802.3af) Po E (IEEE 802.3af)

I/O 個光隔離輸出 功率 <5W Power Consumption <5W

触发模式 软件，外部 I/O 输入 Trigger Mode Software, External I/O input

Acquisition Mode Single frame, Multiple frame, Continuous

Po E (IEEE 802.3af)

曝光范围 20 us ~ 1 s Exposure Range 20 us ~ 1 s

增益控制 软件编程 Gain Control Software programable

曝光控制 软件编程 Exposure Control Software programable

曝光範圍 20 us ~ 1 s ROI 1 ROI ROI 1 ROI 用户储存 4 组非挥发用户参数 User Storage 4 Non-volatiled user sets to save or load user-defined settings

内存 64 MB 帧缓冲空间 Memory 64 MB frame buffer

外壳尺寸 45 mm × 29 mm × 29 mm Housing Size 45 mm × 29 mm × 29 mm

ROI 1 ROI

重量 92 g Weight 92 g

用戶儲存 4 組非揮發用戶參數 記憶體 64 MB 幀緩衝空間 温度 储存：-20° to 85°C Temperature Storage: -20° to 85°C

操作：0° to 45°C Operating: 0° to 45°C

外殼尺寸 45 mm × 29 mm × 29 mm

震动 20Hz to 200Hz to 20Hz (5 分钟循环周期), 10G 加速度, XYZ 各向 30 分钟 Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each

撞击 38G 加速度, 6 ms 半震幅时间, XYZ 各向三次 Shock Acceleration: 38G, half amplitude 6 ms, 3 times, XYZ each direction

溫度 儲存：-20° to 85°C 防护等级 IP30 Conformity IP30

操作：0° to 45°C

震動 20Hz to 200Hz to 20Hz (5 分鐘循環週期), 10G 加速度, XYZ 各向 30 分鐘 撞擊 38G 加速度, 6 ms 半震幅時間, XYZ 各向三次 防護等級 IP30
