The Dell XPS M1330 Owner's Manual for Model PP25L provides user-level service information for this 13-inch premium laptop featuring Intel Core processors and Dell Wi-Fi Catcher and MediaDirect technologies. It covers computer configuration, all four panel views with port identification, and component removal and replacement procedures including memory, hard drive, optical drive, and wireless cards. Users performing upgrades on the XPS M1330 can follow the detailed procedures and safety instructi
Page 1 Text Content
book.book Page 1 Tuesday, October 7, 2008 6:00 PM
Dell™ XPS™ M1330
Owner’s Manual
Model PP25L
Page Summary Contents For Dell XPS M1330 Owner's Manual
Page 1

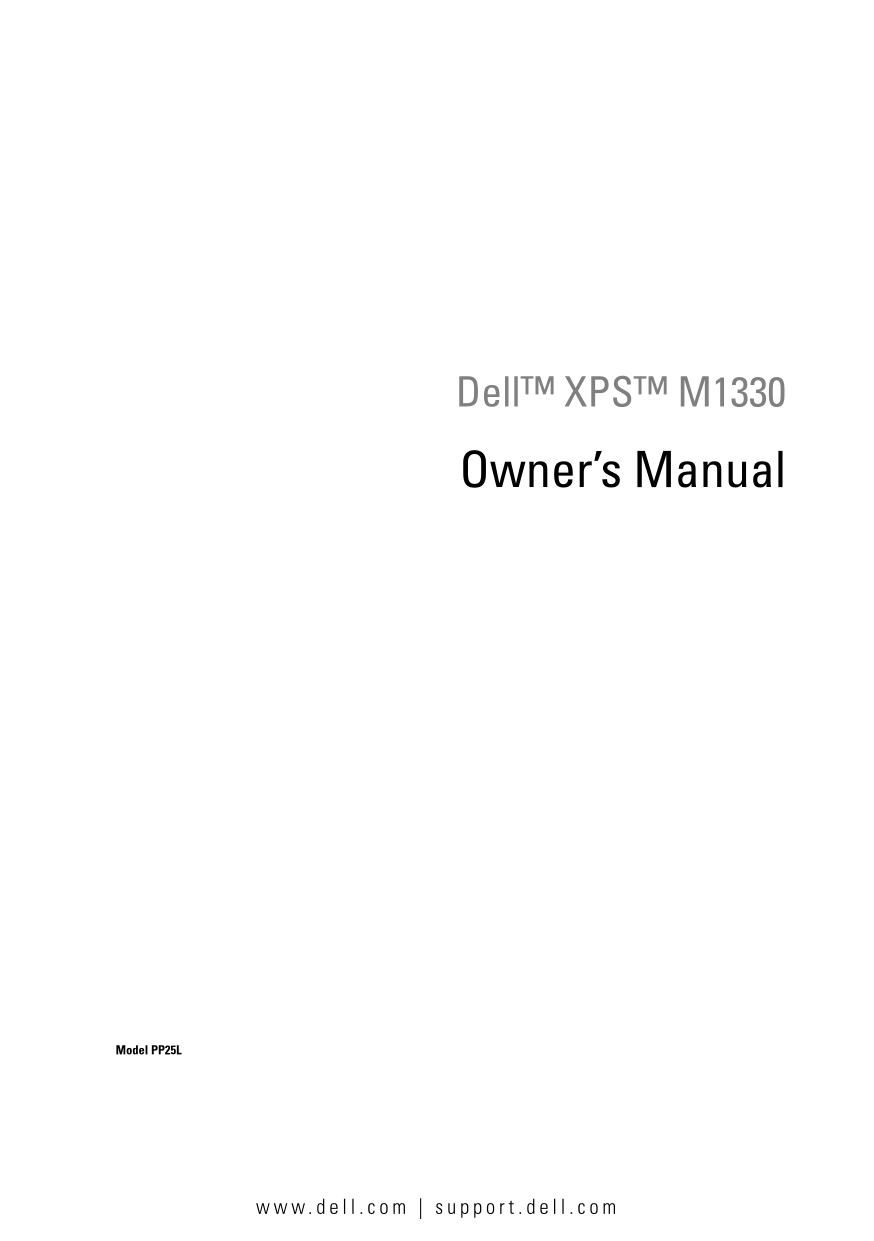

book.book Page 1 Tuesday, October 7, 2008 6:00 PM Dell™ XPS™ M1330 Owner’s Manual Model PP25L
Page 2
book.book Page 2 Tuesday, October 7, 2008 6:00 PM Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates ...
Page 3
book.book Page 3 Tuesday, October 7, 2008 6:00 PM Contents Finding Information About Your Computer Determining Your Computer’s Configuration Front View Left Side View Right Side View Back View Bottom ...
Page 4
book.book Page 4 Tuesday, October 7, 2008 6:00 PM Power Protection Devices Surge Protectors Line Conditioners Uninterruptible Power Supplies (UPS) Using the System Setup Program Viewing the System Set...
Page 5
book.book Page 5 Tuesday, October 7, 2008 6:00 PM Using the Display Adjusting Brightness Switching the Video Image From Your Computer Display To a Projector Setting Display Resolution and Refresh Rate...
Page 6
book.book Page 6 Tuesday, October 7, 2008 6:00 PM Copying CDs and DVDs How to Copy a CD or DVD Using Blank CDs and DVDs Helpful Tips Adjusting the Volume Adjusting the Picture Using Dell Media Direct™...
Page 7
book.book Page 7 Tuesday, October 7, 2008 6:00 PM Setting Up and Using Networks Connecting a Network or Broadband Modem Cable Setting Up a Network Wireless Local Area Network (WLAN) What You Need to E...
Page 8
book.book Page 8 Tuesday, October 7, 2008 6:00 PM Troubleshooting Dell Technical Update Service Dell Diagnostics Dell Support Center Dell Support 3 Dell PC Tune-Up Dell PC Check Up Dell Network Assist...
Page 9
book.book Page 9 Tuesday, October 7, 2008 6:00 PM Dell Media Direct problems Other software problems Memory Problems Network Problems Mobile Broadband (Wireless Wide Area Network [WWAN]) Power Problem...
Page 10
book.book Page 10 Tuesday, October 7, 2008 6:00 PM Adding and Replacing Parts Before You Begin Recommended Tools Turning Off Your Computer Before Working Inside Your Computer Hard Drive Removing the H...
Page 11
book.book Page 11 Tuesday, October 7, 2008 6:00 PM Flash Cache Module (FCM) Removing the FCM Replacing the FCM Internal Card With Bluetooth® Wireless Technology Removing the Card Replacing the Card Co...
Page 12
book.book Page 12 Tuesday, October 7, 2008 6:00 PM Product Information Returning Items for Warranty Repair or Credit Before You Call Contacting Dell Specifications Appendix Dell Technical Support Poli...
Page 13
book.book Page 13 Tuesday, October 7, 2008 6:00 PM Finding Information NOTE: Some features or media may be optional and may not ship with your computer. Some features or media may not be available in ...
Page 14
book.book Page 14 Tuesday, October 7, 2008 6:00 PM What Are You Looking For? Find It Here Warranty information Dell™ Product Information Guide Terms and Conditions (U.S. only) Safety instructions Regu...
Page 15
book.book Page 15 Tuesday, October 7, 2008 6:00 PM What Are You Looking For? Find It Here Service Tag and Express Service Code Service Tag and Microsoft Windows Microsoft® Windows® License Label Produ...
Page 16
book.book Page 16 Tuesday, October 7, 2008 6:00 PM What Are You Looking For? Find It Here Solutions — Troubleshooting hints and Dell Support Website — support.dell.com tips, articles from technicians,...
Page 17
book.book Page 17 Tuesday, October 7, 2008 6:00 PM What Are You Looking For? Find It Here Software upgrades and troubleshooting Dell Support Utility hints — Frequently asked questions, The Dell Suppor...
Page 18
book.book Page 18 Tuesday, October 7, 2008 6:00 PM What Are You Looking For? Find It Here How to reinstall my operating system Operating System Media The operating system is already installed on your ...
Page 19
book.book Page 19 Tuesday, October 7, 2008 6:00 PM About Your Computer Determining Your Computer’s Configuration Based on selections that you made when purchasing your computer, your computer has one ...
Page 20
book.book Page 20 Tuesday, October 7, 2008 6:00 PM Front View camera indicator camera (optional) display media control buttons keyboard fingerprint reader (optional) 8-in-1 memory reader microphone co...
Page 21
book.book Page 21 Tuesday, October 7, 2008 6:00 PM CAMERA IND ICATOR Indicates that the camera is turned on. Based on configuration selections that you made when ordering your computer, your computer ...
Page 22
book.book Page 22 Tuesday, October 7, 2008 6:00 PM INGERPR INT READER (OPT IONAL Helps to keep your Dell™ computer secure. When you slide your finger over the reader, it uses your unique fingerprint t...
Page 23
book.book Page 23 Tuesday, October 7, 2008 6:00 PM TOUCH PAD Provides the functionality of a mouse (see "Touch Pad" on page 45). DELL™ MEDIAD IRECT™ BUTTON Press the Dell Media Direct button...
Page 24
book.book Page 24 Tuesday, October 7, 2008 6:00 PM Turns on when wireless networking is enabled. To enable or disable wireless networking, use the wireless switch. For details, see "Right Side Vi...
Page 25
book.book Page 25 Tuesday, October 7, 2008 6:00 PM AC ADAPTER CONNECTOR Attaches an AC adapter to the computer. The AC adapter converts AC power to the DC power required by the computer. You can conne...
Page 26
book.book Page 26 Tuesday, October 7, 2008 6:00 PM NETWORK CONNECTOR (RJ-45) NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer, do not plug a te...
Page 27
book.book Page 27 Tuesday, October 7, 2008 6:00 PM EXPRESSCARD SLOT Supports one Express Card. The computer ships with a plastic blank installed in the slot. For more information, see "Using Expr...
Page 28
book.book Page 28 Tuesday, October 7, 2008 6:00 PM Back View battery air vents AIR VENTS The computer uses an internal fan to create airflow through the vents, which prevents the computer from overhea...
Page 29
book.book Page 29 Tuesday, October 7, 2008 6:00 PM Bottom View battery battery release latch battery charge/health gauge memory module/coin-cell battery compartment wireless mini-card compartment BATT...
Page 30
book.book Page 30 Tuesday, October 7, 2008 6:00 PM MEMORY MODULE /COIN -CELL BATTERY COMPARTMENT Covers the compartment that contains the DIMM 1 and DIMM 2 memory modules and the coin-cell battery. Fo...
Page 31
book.book Page 31 Tuesday, October 7, 2008 6:00 PM Setting Up Your Computer Connecting to the Internet NOTE: ISPs and ISP offerings vary by country. To connect to the Internet, you need a modem or net...
Page 32
book.book Page 32 Tuesday, October 7, 2008 6:00 PM Setting Up Your Internet Connection To set up an Internet connection with a provided ISP desktop shortcut: Save and close any open files, and exit an...
Page 33
book.book Page 33 Tuesday, October 7, 2008 6:00 PM Transferring Information to a New Computer You can transfer the following types of data from one computer to another: E-mail messages Toolbar setting...
Page 34
book.book Page 34 Tuesday, October 7, 2008 6:00 PM Printer Cable Your printer connects to your computer using a USB cable. Your printer may not come with a printer cable, so if you purchase a cable se...
Page 35
book.book Page 35 Tuesday, October 7, 2008 6:00 PM Turn the printer on, and then turn the computer on. If the Add New Hardware Wizard window appears, click Cancel. Click Start , and then click Network...
Page 36
book.book Page 36 Tuesday, October 7, 2008 6:00 PM Line Conditioners NOTICE: Line conditioners do not protect against power interruptions. Line conditioners are designed to maintain AC voltage at a fa...
Page 37
book.book Page 37 Tuesday, October 7, 2008 6:00 PM Using the System Setup Program NOTE: Your operating system may automatically configure most of the options available in system setup, thus overriding...
Page 38
book.book Page 38 Tuesday, October 7, 2008 6:00 PM Viewing the System Setup Screen Turn on (or restart) your computer. When the DELL logo appears, press <F2> immediately. If you wait too long an...
Page 39
book.book Page 39 Tuesday, October 7, 2008 6:00 PM USB Storage Device CD/DVD/CD-RW drive Modular bay HDD NOTE: Only devices that are preceded by a number are bootable. During the boot routine, the com...
Page 40
book.book Page 40 Tuesday, October 7, 2008 6:00 PM Cleaning Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Informa...
