Dell XPS 27 Service Manual
Summary
The Dell XPS 27 (model 7760) Service Manual with regulatory model W13C provides repair instructions for this premium all-in-one desktop. It includes separate inside-view diagrams for touch-screen and non-touch-screen configurations, and covers the USB dongle-bay cover, back cover, and internal component removal. A screw list and system board component layout are provided. Technicians servicing the XPS 7760 can follow the prerequisite-based workflow for safe disassembly of this large all-in-one s
Page 1 Text Content
XPS 27
Service Manual
Computer Model: XPS 7760 Regulatory Model: W13C Regulatory Type: W13C001
Page Summary Contents For Dell XPS 27 Service Manual
Page 1

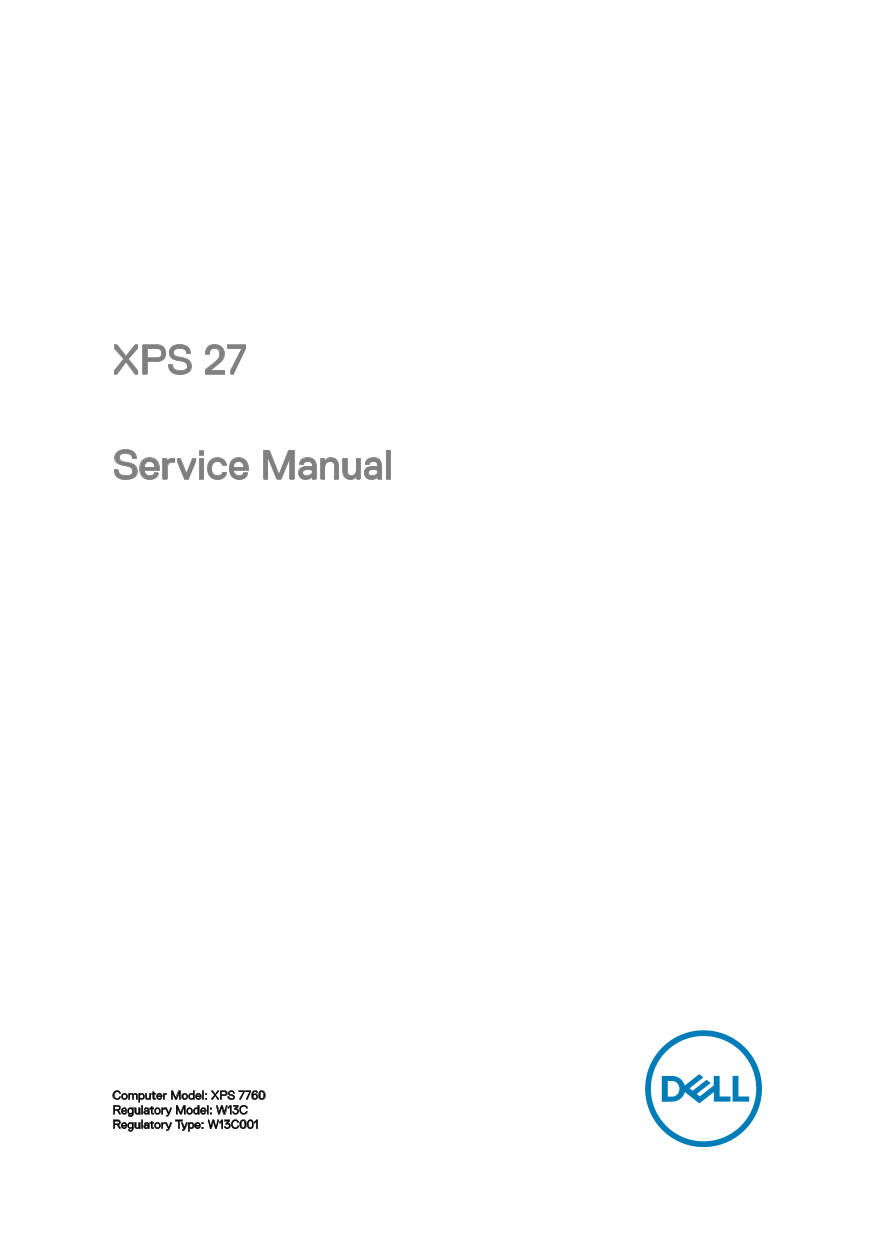

XPS 27 Service Manual Computer Model: XPS 7760 Regulatory Model: W13C Regulatory Type: W13C001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Before working inside your computer........................... Before you begin ..................................................................................... Safety instructions.........
Page 4
Removing the memory modules................................... Prerequisites........................................................................................... Procedure..........................
Page 5
Removing the processor heat-sink...............................42 Prerequisites............................................................................................42 Procedure for computers wi...
Page 6
Removing the wireless card......................................... Prerequisites........................................................................................... Procedure.....................
Page 7
Removing the inner frame............................................ Prerequisites............................................................................................ Procedure...................
Page 8
Removing the USB-dongle port................................... Prerequisites............................................................................................84 Procedure......................
Page 9
Removing the speakers............................................... Prerequisites...........................................................................................101 Procedure ................
Page 10
Removing the system board........................................ Prerequisites...........................................................................................113 Procedure....................
Page 11
Removing the display panel........................................ Prerequisites.......................................................................................... Procedure.......................
Page 12
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 13
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/ regu...
Page 14
Screw list Table 1. : Screw list Component Secured to Screw Quanti Screw image type ty Back-light cable System board M3X4 Camera Middle frame M2X3 Chassis fan System board M2X3 Converter board Middle ...
Page 15
Component Secured to Screw Quanti Screw image type ty Media-card Middle frame M2X3 reader shield Middle frame Display M2X4 Middle frame Display M2X3 Power-supply Middle frame M3X4 unit Power-button Mi...
Page 16
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 17
Technical overview WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 18
system board microphone module coin-cell battery middle frame processor heat-sink processor memory module wireless-card shield solid-state drive (M.2) I/O board speakers (2) memory fan I/O panel camer...
Page 19
Inside view of your computer (non-touch screen) Figure 2. : Inside view of your computer (non-touch screen) 2.5-inch hard drive hard-drive cage power-supply unit chassis fan microphone module system b...
Page 20
power-button board System Board Components microphone cable connector processor socket coin-cell battery connector memory module slot wireless-card slot audio-cable connector media-card connector SSD-...
Page 21
chassis-fan cable connector SATA power connector password clear jumper CMOS clear jumper side USB connector touch cable connector camera connector display connector thermal pads (on computers shipped ...
Page 22
Removing the USB dongle-bay cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer....
Page 23
Replacing the USB dongle-bay cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer...
Page 24
Removing the back cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 25
2 Slide the back cover towards the top of the computer and lift the back cover off the inner frame.
Page 26
Procedure (non-touch screen) 1 Push the stand down. 2 Loosen the captive screws that secure the back cover to the inner frame.
Page 27
3 Slide the back cover towards the top of the computer and lift the back cover off the inner frame.
Page 28
Replacing the back cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 29
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 30
2 Using your fingertips, spread apart the securing clips at each end of the memory-module slot until the memory module pops up. 3 Slide and remove the memory module from the memory-module slot.
Page 31
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 32
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 33
2 Using the straps on the hard-drive assembly, gently push and lift the hard-drive assembly out of the hard-drive cage. 3 Pry the hard-drive bracket to release the tabs on the bracket from the slots o...
Page 34
4 Slide the hard drive off the hard-drive bracket. NOTE: Note the orientation of the hard drive so that you can replace it correctly.
Page 35
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 36
Removing the system-board shield WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. ...
Page 37
2 Lift the system-board shield off the middle frame.
Page 38
Replacing the system-board shield WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer....
Page 39
Removing the memory fan WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 40
3 Disconnect the memory fan cable from the system board.
