Using Dell PS Series Asynchronous Replication Best practices for replication, planning, and recovery with PS Series arrays Dell Storage Engineering June 2015
A Dell Best Practices Guide
Page Summary Contents For Dell Understanding Data Replication Between EqualLogic PS Series Groups Owner's Manual
Page 1

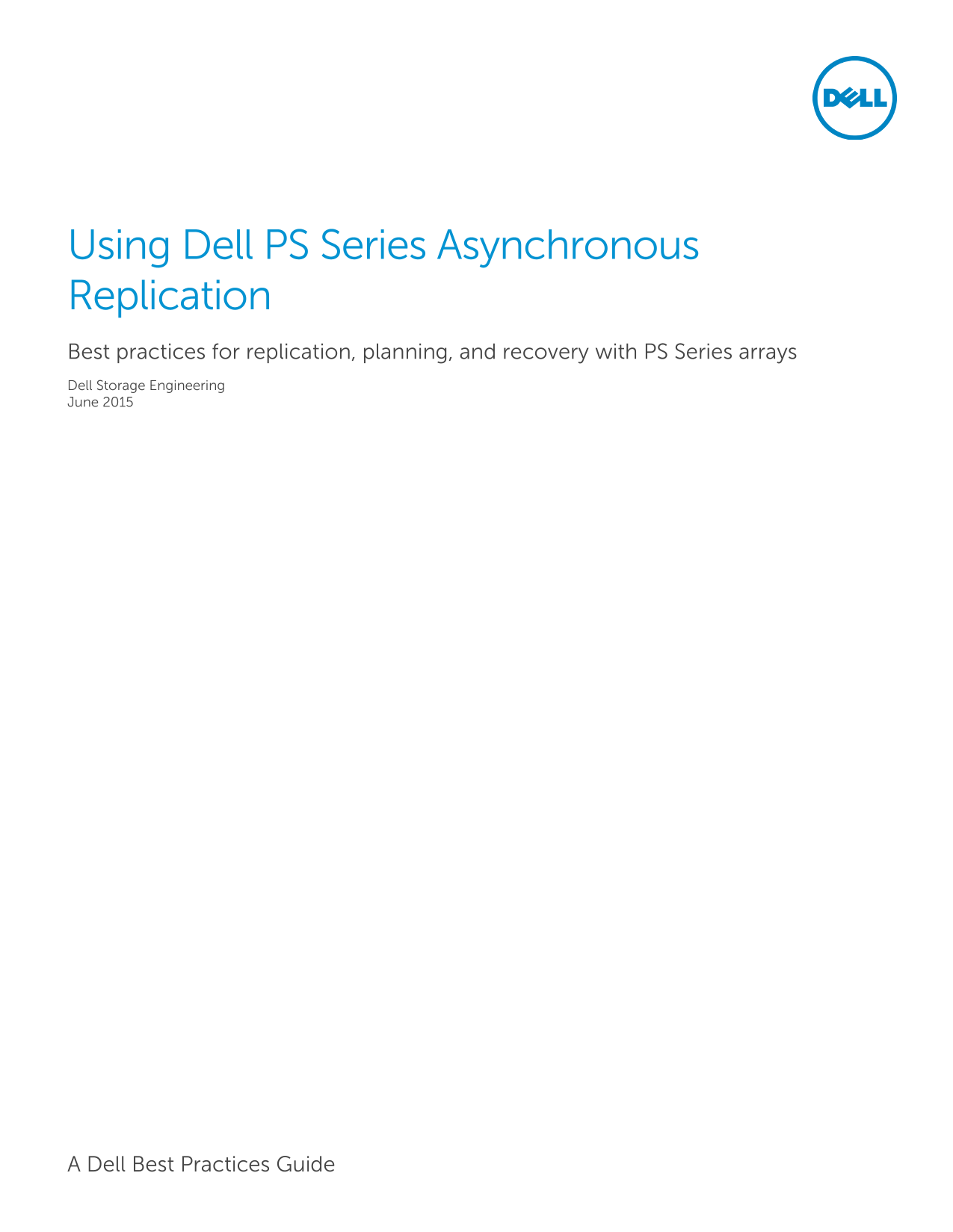

Using Dell PS Series Asynchronous Replication Best practices for replication, planning, and recovery with PS Series arrays Dell Storage Engineering June 2015 A Dell Best Practices Guide
Page 2
Revisions Date Description January 2010 Initial release June 2015 Updated for Dell PS Series firmware v8.0 Acknowledgements Original author: Keith Swindell Updated by: Michael Pacheco THIS WHITE PAPER...
Page 3
Table of contents Revisions ...............................................................................................................................................................................
Page 4
6.1.4 Interactions with other programs that create replicas ........................................................................................... 46 A Additional resources .........................
Page 5
Introduction Replication provides a method for protecting volume data without setting the volumes offline and without causing disruption to applications and users. It also provides a disaster-recovery...
Page 6
1 About Asynchronous Replication A replica represents the contents of a volume at the time the replica was created. Each replicated volume has a replica set, which is the set of replicas created over ...
Page 7
2 Replication planning Below are some guidelines for getting started with replication planning. 1. Plan the replication configuration for your groups and volumes. For each volume, determine the replic...
Page 8
2.1 Primary and secondary group administration Because replication involves two groups, group administrators must coordinate their efforts. To configure groups as replication partners, each administra...
Page 9
Because replicas and failback snapshots are a representation of the volume data at a precise point in time, the group must maintain that state until the replication completes. To allow the volume to r...
Page 10
2.3 Volumes Up to 128 volumes per group can be configured for replication (and active replication) at any time. A volume can have only one replication partner. However, different volumes on the same P...
Page 11
2.6 Schedules Using schedules can help ensure your volumes and volume collections are replicated at the best intervals and times to meet your business needs. For example, consider a volume that rarely...
Page 12
If you decide to enable failback support, you can specify it at the time you initially configure replication on the volume, or at any time thereafter. Note: You must create a replica to establish the ...
Page 13
3 Configuring group replication To enable replication between groups, you must perform a configuration task on both the primary and secondary groups. 1. Identify the names and IP addresses for the pri...
Page 14
7. Specify the inbound and outbound passwords: a. Enter the Inbound password used by the partner for authentication to perform replication with this group: b. Enter the obtained partner’s Outbound pas...
Page 15
8. Select the storage pools and configure the delegated space: a. Pick one, or more (PS Series firmware v8 or later), storage pools to hold the replica set from the replication partner. b. Specify the...
Page 16
10. Log in to Group Manager on the secondary group. 11. Click to select the Replication View. 12. Click Replication Partners in the tree view. 13. Identify the replication partner: a. In the Activitie...
Page 17
14. Specify the inbound and outbound passwords: a. Enter the Inbound password that will be used by the partner for authentication to perform replication with this group. b. Enter the obtained partner’...
Page 18
15. Select the storage pools and configure the delegated space: a. Pick one, or more (PS Series firmware v8 or later), storage pools to hold the replica set from the replication partner. b. Specify th...
Page 19
3.1 Configuring volume replication Once replication has been configured in the group (section 3), you can enable replication on volumes. 1. In Group Manager, select the Volumes View. 2. Right-click a ...
Page 20
e. Optionally, select Keep failback snapshot. If selected, the most recent complete replica will be retained in the local replication reserve to allow the partners to synchronize by replicating only c...
Page 21
3. Optionally, select Perform manual replication to use external media to transfer the data manually with the Manual Transfer Utility, rather than transferring automatically over the network. Manual r...
Page 22
3.1.1 Configuring volume replication schedules Once replication has been configured for the group (section 3) and desired volumes (section 3.1), you can configure replicas to be created on a schedule....
Page 23
Note: The maximum-keep value for a schedule affects only the number of replicas to be retained that were created by the schedule. It does not include replicas created individually, or by another sched...
Page 24
4 Replicating a volume Once replication has been configured for the group (section 3) and desired volumes (section 3.1), you can create replicas of a volume. 1. In Group Manager, right-click a volume ...
Page 25
5 Managing replication Some common replication management tasks, include: Monitoring replication Monitoring replication space Managing delegated space Promoting a replica to a recovery volume ...
Page 26
Figure 5 Viewing outbound replicas in the Replication pane of the primary group Figure 6 Viewing inbound replicas in the Replication pane of the secondary group 26 Using Dell PS Series Asynchronous Re...
Page 27
5.1.2 Monitoring replication space From the Group Manager Replication panel, you can view delegated space statistics, including the amount of configured delegated space, and the percent that is still ...
Page 28
5.1.3 Managing delegated space You can modify the space delegated to a partner, however, you cannot decrease the space delegated to a lower capacity than is currently reserved for the partner’s replic...
Page 29
5. In the Replica Set Placement tab (PS Series firmware v8 and later), you can optionally configure a mapping between primary Pools and secondary Pools for initial replica set placement (Figure 1). If...
Page 30
5.1.3.1 Space borrowing for replication Dell PS Series firmware version 8.0 provides the ability for snapshots, local and remote replicas, and deleted volumes in the Group Volume Recovery Bin to tempo...
Page 31
5.1.4 Promoting a replica to a recovery volume If a failure or maintenance in the primary group makes a volume unavailable, you can fail over to the secondary group by promoting to a recovery volume t...
Page 32
6. Optionally, select the Volume options: - Set volume online - Retain target name of the original volume (this helps initiators discover the recovery volume automatically) - Keep ability to demote to...
Page 33
8. Select the access type and define i SCSI access accordingly to allow the appropriate initiator to connect to the recovery volume from a host operating system. 9. Optionally, select Yes or No when a...
Page 34
11. Optionally, assign volume tags to the recovery volume. 12. Click Next. 34 Using Dell PS Series Asynchronous Replication | TR1052
Page 35
13. Review the summary and click Finish to promote the Inbound Replica Set to a recovery volume. In the Volumes pane of Group Manager, the recovery volume will display a special icon that indicates it...
Page 36
5.1.5 Connecting to a recovery volume From the host operating system i SCSI initiator, connect to the recovery volume as if it were a regular volume. Use the secondary group IP as the discovery addres...
Page 37
5. Click OK in the Connect to Target and i SCSI Initiator Properties windows. 37 Using Dell PS Series Asynchronous Replication | TR1052
Page 38
6. Online the volume from the server (if required) a. Launch Disk Manager. b. Click Action > Rescan Disks. c. Right-click the DR volume and select Online. 38 Using Dell PS Series Asynchronous Repli...
Page 39
5.1.6 Replicating a recovery volume When the primary group and the original volume are back online, you can optionally replicate the new data back to the primary group. 1. On the secondary group, in t...
Page 40
2. Enter the group administrator account and password for the primary group, 3. Optionally, choose to Perform manual replication with the Manual Transfer Utility. For additional information on the Man...
