Dell Studio Slim Service Manual
Summary
The Dell Studio Slim 540s Service Manual (Model DCSLA) provides detailed component replacement procedures for the Studio Slim desktop computer. It covers replacing fans, front I/O panel, computer cover, processor, support bracket, system board, front panel, power supply, memory modules, battery, PCI/PCI Express cards, rubber foot, drives, and BIOS setup. The manual includes technical specifications, recommended tools, safety instructions, and turning off procedures. Target users are Dell service technicians and advanced users performing desktop repairs and upgrades.

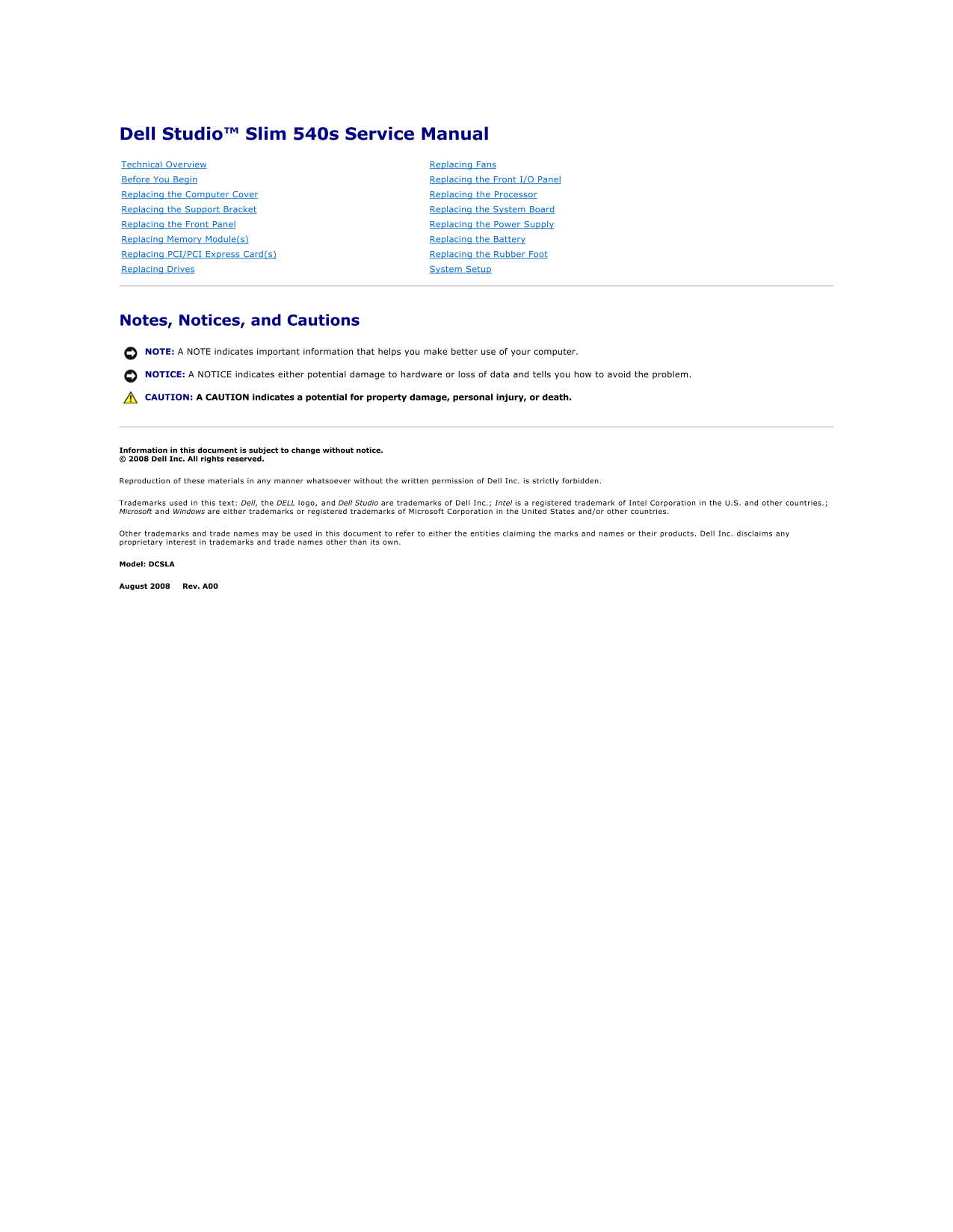

Page 1 Text Content
Dell Studio™ Slim 540s Service Manual Technical Overview Replacing Fans Before You Begin Replacing the Front I/O Panel Replacing the Computer Cover Replacing the Processor Replacing the Support Bracket Replacing the System Board Replacing the Front Panel Replacing the Power Supply Replacing Memory Module(s) Replacing the Battery Replacing PCI/PCI Express Card(s) Replacing the Rubber Foot Replacing Drives System Setup
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice. © 2008 Dell Inc. All rights reserved. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Dell Studio are trademarks of Dell Inc.; Intel is a registered trademark of Intel Corporation in the U.S. and other countries.; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model: DCSLA August 2008 Rev. A00
Page Summary Contents For Dell Studio Slim Service Manual
Page 1
Dell Studio™ Slim 540s Service Manual Technical Overview Replacing Fans Before You Begin Replacing the Front I/O Panel Replacing the Computer Cover Replacing the Processor Replacing the Support Brack...
Page 2
Back to Contents Page Before You Begin Dell Studio™ Slim 540s Service Manual Technical Specifications Recommended Tools Turning Off Your Computer Safety Instructions This chapter provides p...
Page 3
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpa...
Page 4
Back to Contents Page Replacing the Support Bracket Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. ...
Page 5
Back to Contents Page Replacing the Rubber Foot Dell Studio™ Slim 540s Service Manual Replacing the Rubber Foot on the Side of Your Computer Replacing the Rubber Foot on the Bottom of Your Comp...
Page 6
1 rubber foot 2 rubber foot recess Back to Contents Page
Page 7
Back to Contents Page Replacing PCI/PCI Express Card(s) Dell Studio™ Slim 540s Service Manual Removing a PCI/PCI Express Card Installing a PCI/PCI Express Card Configuring Your Computer After...
Page 8
1. Follow the procedures in Before You Begin. 2. Remove the computer cover. See Replacing the Computer Cover. 3. Release the card retention bracket by lifting the card retention release lever up. 4. R...
Page 9
See the documentation for the card for information about the card's cable connections. 11. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on. ...
Page 10
Back to Contents Page Replacing the Battery Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For addi...
Page 11
Back to Contents Page Replacing the Computer Cover Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. F...
Page 12
Back to Contents Page Replacing the Processor Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For ad...
Page 13
1 processor cover 2 tab 3 processor 4 socket 5 center cover latch 6 release lever 7 front alignment notch 8 processor pin-1 indicator 9 rear alignment notch 9. If the release lever on the socket i...
Page 14
Back to Contents Page Replacing Drives Dell Studio™ Slim 540s Service Manual Replacing the Hard Drive Replacing the Optical Drive Replacing the Media Card Reader Replacing the Flex Dock R...
Page 15
6. Fix the four shoulder screws to the hard drive. 7. Connect the power and data cables to the hard drive. 8. Connect the power and data cables to the system board. 9. Align the shoulder screws on the...
Page 16
1 optical drive 2 screws (4) 8. Align the shoulder screw of the optical drive with the slots in the optical drive bay. 9. Gently slide the optical drive till it snaps in place. 10. Connect the power a...
Page 17
6. Press the two spring clamps and slide out the Media Card Reader along with the Flex Bay drive cage from the Flex Bay slot. 7. Remove the two screws holding the Media Card Reader in the Flex Bay dri...
Page 18
3. Remove the front panel (see Replacing the Front Panel). 4. Remove the optical drive (see Replacing the Optical Drive). 1 Flex Dock cable 2 spring clamp 3 Flex Dock 5. Disconnect the Flex Dock USB c...
Page 19
14. Align the two screw holes on the Flex Dock with the Flex Dock drive cage. 15. Replace the two screws to secure the Flex Dock in the Flex Dock drive cage. 16. Slide the Flex Dock drive cage along w...
Page 20
2. Gently press on the Flex Bay drive insert lever outward to release the lock. 3. Pull the Flex Bay drive insert away from the front panel. 4. To replace the Flex Bay drive insert, align the Flex Bay...
Page 21
Back to Contents Page Replacing Fans Dell Studio™ Slim 540s Service Manual Replacing the Chassis Fan Replacing the Processor Fan and Heat Sink Assembly CAUTION: Before working inside your compu...
Page 22
1. Follow the procedures in Before You Begin. 2. Remove the computer cover (see Replacing the Computer Cover). 3. Disconnect the processor fan cable from the CPU_FAN connector on the system board (see...
Page 23
Back to Contents Page Replacing the Front Panel Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For ...
Page 24
Back to Contents Page Replacing the Front I/O Panel Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. ...
Page 25
Back to Contents Page Replacing Memory Module(s) Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For...
Page 26
1 cutouts (2) 2 memory module 3 notch 4 tab NOTICE: To avoid damage to the memory module, press the memory module straight down into the connector while you apply equal force to each end of the memory...
Page 27
Back to Contents Page Replacing the Power Supply Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For...
Page 28
10. Connect your computer and devices to an electrical outlet, and turn them on. Back to Contents Page
Page 29
Back to Contents Page Replacing the System Board Dell Studio™ Slim 540s Service Manual CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For...
Page 30
13. Replace the memory modules (see Replacing Memory Module(s)). 14. Replace any expansion cards on the system board (see Replacing PCI/PCI Express Card(s)). 15. Replace the computer cover (see Replac...
Page 31
Back to Contents Page System Setup Dell Studio™ Slim 540s Service Manual Overview Clearing Forgotten Passwords Clearing CMOS Settings Flashing the BIOS Overview Use system setup to: Chang...
Page 32
Memory Info Indicates amount of installed memory, memory speed, channel mode (dual or single), and type of memory installed. Advanced CPU type Indicates the type of CPU installed. L2 Cache Indicates t...
Page 33
NOTE: To boot to a USB device, the device must be bootable. To ensure your device is bootable, check the device documentation. Changing Boot Sequence for Future Boots 1. Enter system setup (see Enteri...
Page 34
1. Follow the procedures in Before You Begin. 2. Remove the computer cover (see Replacing the Computer Cover). 3. Reset the current CMOS settings: a. Locate the 3-pin CMOS jumper (CLEAR_CMOS) on the ...
Page 35
Back to Contents Page Technical Overview Dell Studio™ Slim 540s Service Manual Inside View of Your Computer System Board Components CAUTION: Before working inside your computer, read the safety...
Page 36
1 processor socket (CPU) 2 processor fan connector (CPU_FAN) 3 clear password jumper 4 clear CMOS jumper (CMOS_PW) (CLEAR_ CMOS) 5 memory module connector 6 memory module connector (DIMM_1) (DIMM_3) 7...
Page 37
Back to Contents Page Dell Studio™ Slim 540s Service Manual Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTIC...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 37 |
| File Size | 1.03 MB |
| Published | June 29, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What safety steps are required before opening the computer case?
You must ensure the work surface is clean, shut down the OS, unplug all devices from electrical outlets, and ground yourself by touching an unpainted metal surface.
How should I safely disconnect cables during repairs?
Pull on the connector or its pull-tab, not the cable itself. Keep connectors evenly aligned while disconnecting.
What specific tool is needed for component replacement?
The procedures may require a small Phillips screwdriver of size #2.
Where can I access detailed technical specifications for this model?
Check the Setup Guide that shipped with your computer or visit support.dell.com.
